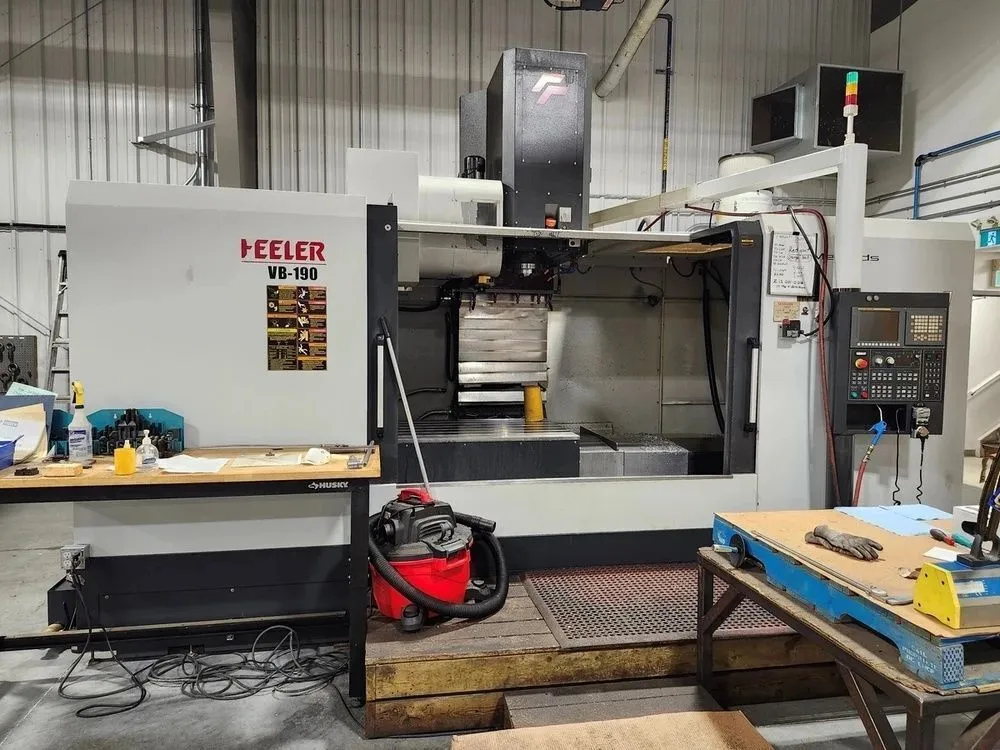

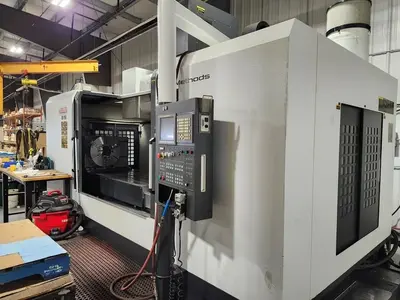

Used Feeler VB-1900 (2015) CNC Vertical Machining Center for Sale. This CNC vertical machining center offers 74.8″ of X-axis travel, 33.9″ of Y-axis travel and 31.5″ of Z-axis travel. The spindle runs to 6,000 RPM with a CAT 50 taper and a 30 HP spindle motor, and tool changes are handled by a 40-station ATC. Control is Fanuc 0i-MF. The machine is 4th axis ready and is equipped with a 22″ chuck 4th axis rotary table with a 7.75″ bore. It can be seen under power for an inspection, so you can verify operation before committing.

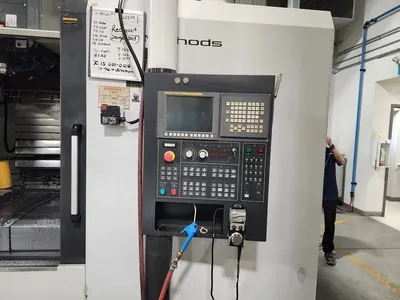

Control.....................................................Fanuc 0i-MD
Table Size..................................................33.9"X82.7"
Table Load..................................................4,850 Lbs.
Travels:
X-Axis......................................................74.8"
Z-Axis......................................................33.9"
Y-Axis......................................................31.5"
Rapid Traverse X,Y & Z......................................591 IPM
Spindle Speed...............................................6,000 Rpm's
Spindle Taper...............................................50
ATC.........................................................40
Floor Space.................................................R-L 192" X F-B 155"
Height......................................................138"
Weight......................................................41,888 Lbs.

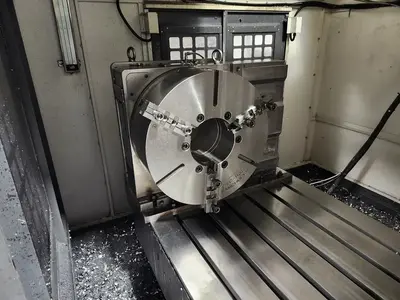

22″ Chuck 4th Axis Rotary With 7.75 Thru Hole...............Yes
Coolant
Chip Conveyor
Used Feeler VB-1900 (2015) CNC Vertical Machining Center for Sale. This CNC vertical machining center offers 74.8″ of X-axis travel, 33.9″ of Y-axis travel and 31.5″ of Z-axis travel. The spindle runs to 6,000 RPM with a CAT 50 taper and a 30 HP spindle motor, and tool changes are handled by a 40-station ATC. Control is Fanuc 0i-MF. The machine is 4th axis ready and is equipped with a 22″ chuck 4th axis rotary table with a 7.75″ bore. It can be seen under power for an inspection, so you can verify operation before committing.
Imperial
| X | 74.8" |
| Y | 33.9" |
| Z | 31.5" |
| Power | 30 hp |
| RPM | 6,000 RPM |
| # ATC | 40 |
| Taper | 50 |
| Table-W | 33.9" |
| Table-L | 82.7" |
| # Axis | 4 |
| Control | CNC (Fanuc Oi-MF) |
| Dimensions | R-L 192" X F-B 155" X Height 138" |
| Weight | 41,888 Lbs. |
Control.....................................................Fanuc 0i-MD
Table Size..................................................33.9"X82.7"
Table Load..................................................4,850 Lbs.
Travels:
X-Axis......................................................74.8"
Z-Axis......................................................33.9"
Y-Axis......................................................31.5"
Rapid Traverse X,Y & Z......................................591 IPM
Spindle Speed...............................................6,000 Rpm's
Spindle Taper...............................................50
ATC.........................................................40
Floor Space.................................................R-L 192" X F-B 155"
Height......................................................138"
Weight......................................................41,888 Lbs.
22″ Chuck 4th Axis Rotary With 7.75 Thru Hole...............Yes
Coolant
Chip Conveyor
