Used 2024 SMART MACHINE TOOL SM2082-50 | CNC Machining Center, Vertical
Have one to sell?
ConditionUsed
1 available

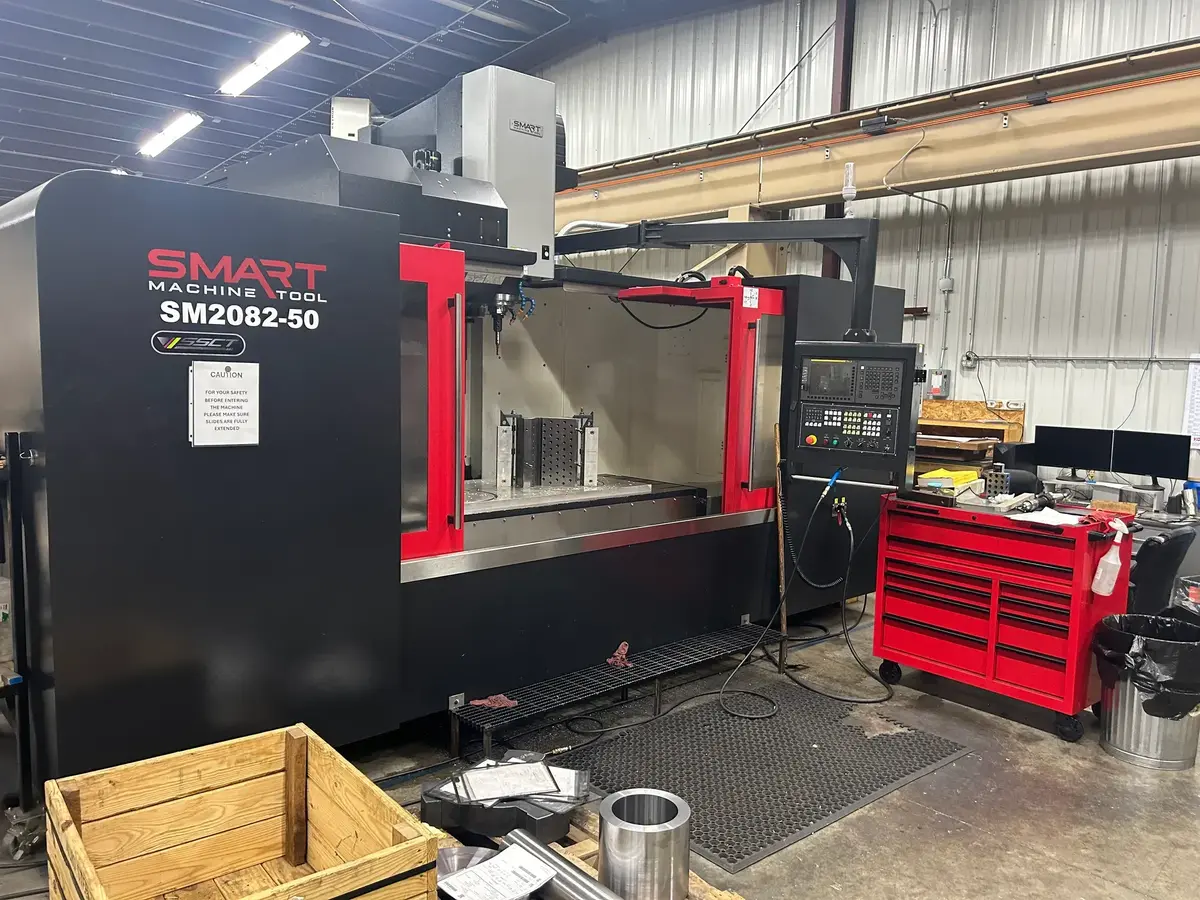

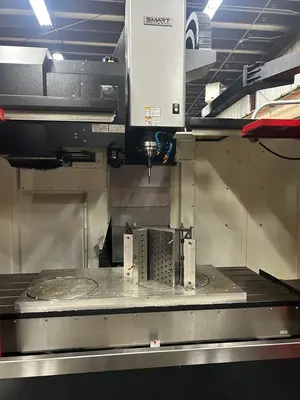

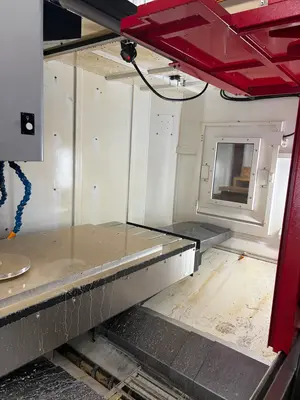

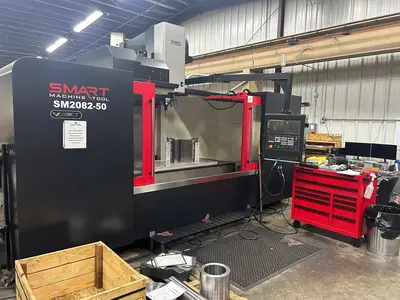

Used Smart SM 2082 (2024) CNC Vertical Machining Center for Sale. This machine offers 81″ of X-axis travel, 32″ in Y, and 25″ in Z, with a CAT 50 Big Plus spindle rated to 6,000 RPM and driven by a 35/30 HP motor. Tool changes are handled by a 40-station ATC, and the control is a Fanuc Oi-MF Plus with Manual Guide. Equipment includes 290 PSI coolant thru-spindle, air thru spindle, rigid tapping, built-in dual internal screw conveyors, lift up chip conveyor, coolant bed flush, coolant/air gun, oil skimmer, full enclosed splash guard, 3 color tower light, and a Renishaw probe ready kit (OMI-2T). The machine can be seen under power for an inspection.
Specifications:

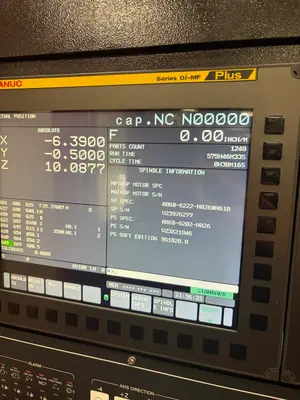

Control................................................Fanuc Oi-MF Plus
Table..................................................84.65" x 32.28"
Table Load.............................................5,732 lbs.
Travels
X-Axis Travel..........................................81"
Y-Axis Travel..........................................32"
Z-Axis Travel..........................................25"
Spindle Speed..........................................6,000 RPM
Spindle Taper..........................................CAT 50
Spindle Motor..........................................35/30 HP
Tool Magazine Capacity.................................40 ATC
Machine Weight.........................................28,439 lbs.
Floor Space............................................R-L 237" X F-B 134.52"
Machine Height.........................................110"
Features...............................................290 PSI Coolant Thru-Spindle
Built-in Dual Internal.................................Screw Conveyor
Coolant / Air Gun
Coolant Bed Flush
Full Enclosed Splash Guard
Manual Guide
Renishaw Probe Ready Kit (OMI-2T)
Lift Up Chip Conveyor
3 Color Tower Light
Air Thru Spindle
Rigid Tapping
Big Plus Spindle
Oil Skimmer
Used Smart SM 2082 (2024) CNC Vertical Machining Center for Sale. This machine offers 81″ of X-axis travel, 32″ in Y, and 25″ in Z, with a CAT 50 Big Plus spindle rated to 6,000 RPM and driven by a 35/30 HP motor. Tool changes are handled by a 40-station ATC, and the control is a Fanuc Oi-MF Plus with Manual Guide. Equipment includes 290 PSI coolant thru-spindle, air thru spindle, rigid tapping, built-in dual internal screw conveyors, lift up chip conveyor, coolant bed flush, coolant/air gun, oil skimmer, full enclosed splash guard, 3 color tower light, and a Renishaw probe ready kit (OMI-2T). The machine can be seen under power for an inspection.
Imperial
| X | 81" |
| Y | 32" |
| Z | 25" |
| Power | 30 hp |
| RPM | 6,000 RPM |
| # ATC | 40 |
| Taper | 50 |
| Table-W | 32.28" |
| Table-L | 84.65" |
| # Axis | 3 |
| Control | CNC (Fanuc 0i-MF Plus) |
| Dimensions | R-L 237" X F-B 134.52" X Height 110" |
| Weight | 28,439 lbs. |
Specifications:
Control................................................Fanuc Oi-MF Plus
Table..................................................84.65" x 32.28"
Table Load.............................................5,732 lbs.
Travels
X-Axis Travel..........................................81"
Y-Axis Travel..........................................32"
Z-Axis Travel..........................................25"
Spindle Speed..........................................6,000 RPM
Spindle Taper..........................................CAT 50
Spindle Motor..........................................35/30 HP
Tool Magazine Capacity.................................40 ATC
Machine Weight.........................................28,439 lbs.
Floor Space............................................R-L 237" X F-B 134.52"
Machine Height.........................................110"
Features...............................................290 PSI Coolant Thru-Spindle
Built-in Dual Internal.................................Screw Conveyor
Coolant / Air Gun
Coolant Bed Flush
Full Enclosed Splash Guard
Manual Guide
Renishaw Probe Ready Kit (OMI-2T)
Lift Up Chip Conveyor
3 Color Tower Light
Air Thru Spindle
Rigid Tapping
Big Plus Spindle
Oil Skimmer
