Used 2007 DOOSAN MV 8035 | CNC Machining Center, Vertical
Have one to sell?
ConditionUsed
1 available

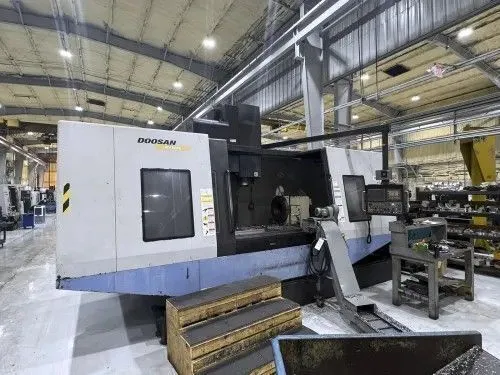

2007 Doosan Model MV8035

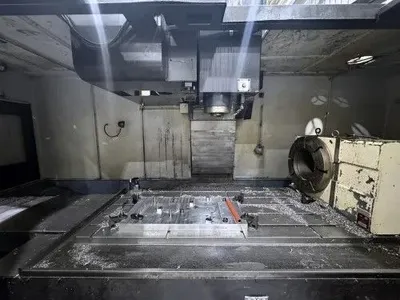

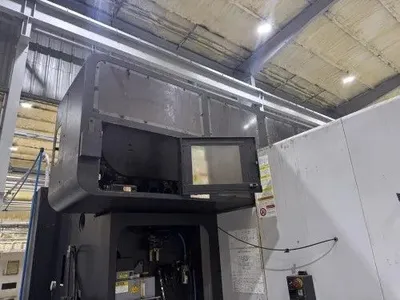

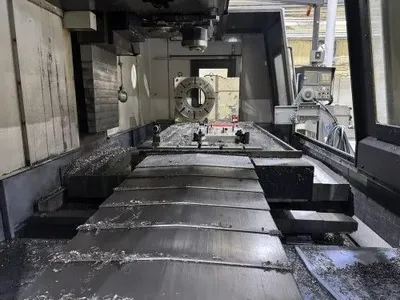

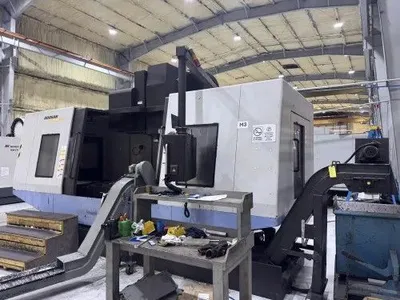

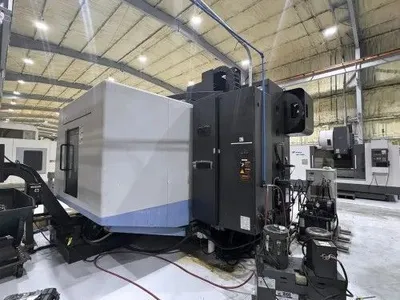

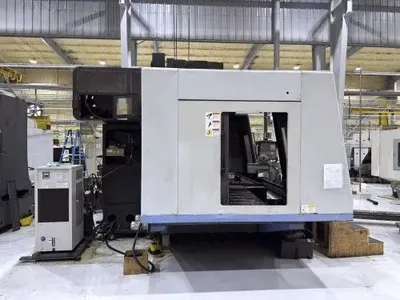

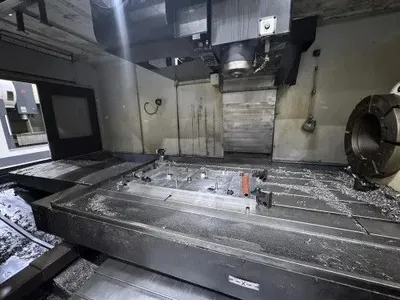

The Doosan MV 8035 is a heavy-duty, 3-axis vertical CNC machining center featuring a 50-taper gear-drive spindle, a 6,000 RPM max speed, and a massive box-way structure built for high-torque cutting on large titanium, steel, and cast-iron parts
Control................................................Fanuc
Travels:
MACHINE SPECIFICATION
AXIS X.................................................78.7″
AXIS Y.................................................37.79″
AXIS Z.................................................31.49″
TABLE LENGTH...........................................94.5″
TABLE WIDTH............................................35.4″
MAX. PART WEIGHT.......................................8800 lbs.
NUMBER OF TOOL POCKETS.................................30
SPINDLE TAPER..........................................50
MAX. SPINDLE SPEED.....................................6,000 rpm
SPINDLE MOTOR POWER....................................40 HPW
DIMENSIONS.............................................R-L 234" X F-B 191"
Height.................................................142"
WEIGHT.................................................39,700 lbs.
EQUIPPED WITH

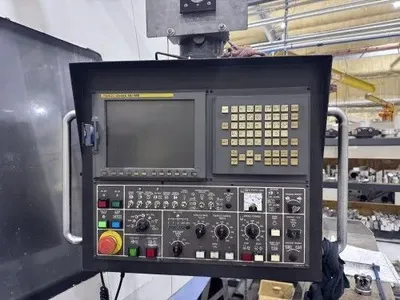

• FANUC Series 18i-MB

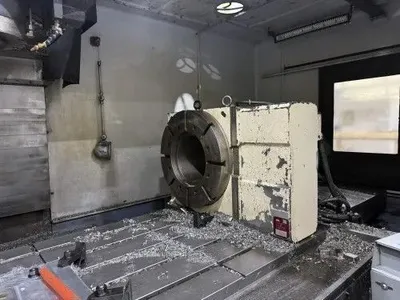

• 4th Axis Rotary
• Chip Conveyor
• Coolant Pumps
• Tool eye
• Tool Presetter

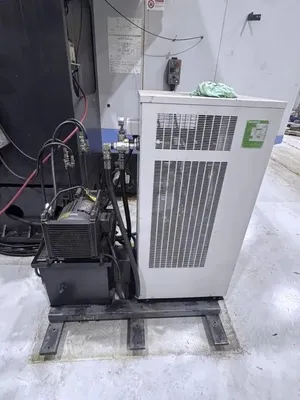

• Hydraulic Clamping unit
2007 Doosan Model MV8035
The Doosan MV 8035 is a heavy-duty, 3-axis vertical CNC machining center featuring a 50-taper gear-drive spindle, a 6,000 RPM max speed, and a massive box-way structure built for high-torque cutting on large titanium, steel, and cast-iron parts
Imperial
| X | 78.7" |
| Y | 37.79" |
| Z | 31.49" |
| Power | 40 hp |
| RPM | 6,000 RPM |
| # ATC | 40 |
| Taper | CAT 50 |
| Table-W | 35.4" |
| Table-L | 94.5" |
| # Axis | 4 |
| Control | CNC (Fanuc) |
| Dimensions | R-L 234" X F-B 191" X Height 142" |
| Weight | 39.700 Lnbs. |
Control................................................Fanuc
Travels:
MACHINE SPECIFICATION
AXIS X.................................................78.7″
AXIS Y.................................................37.79″
AXIS Z.................................................31.49″
TABLE LENGTH...........................................94.5″
TABLE WIDTH............................................35.4″
MAX. PART WEIGHT.......................................8800 lbs.
NUMBER OF TOOL POCKETS.................................30
SPINDLE TAPER..........................................50
MAX. SPINDLE SPEED.....................................6,000 rpm
SPINDLE MOTOR POWER....................................40 HPW
DIMENSIONS.............................................R-L 234" X F-B 191"
Height.................................................142"
WEIGHT.................................................39,700 lbs.
EQUIPPED WITH
• FANUC Series 18i-MB
• 4th Axis Rotary
• Chip Conveyor
• Coolant Pumps
• Tool eye
• Tool Presetter
• Hydraulic Clamping unit
