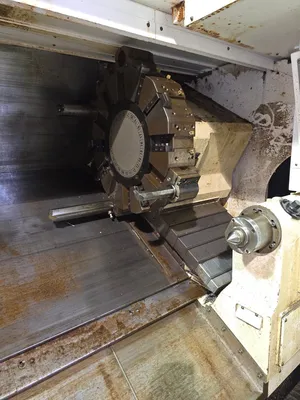

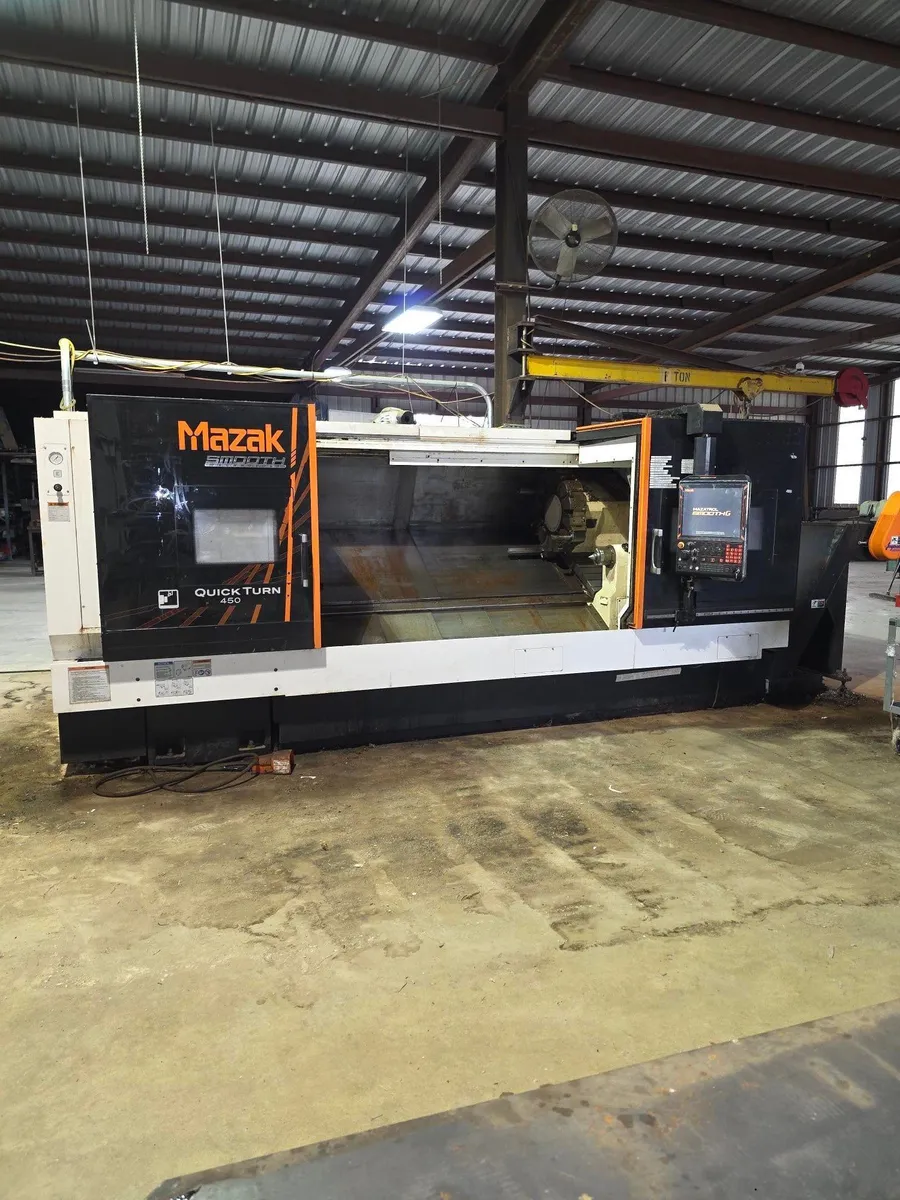

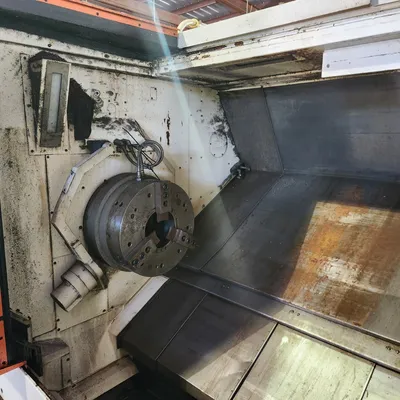

Used 2018 MAZAK Smooth Quick Turn 450X80 | CNC Lathes, Slant Beds
Have one to sell?
ConditionUsed
1 available

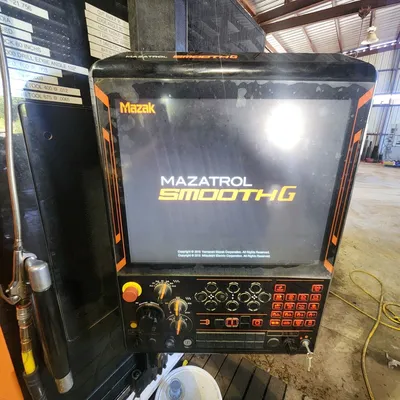

Mazak Quick Turn 450/2000 CNC lathe, identified as OP20, with Mazatrol SmoothG control. Documented 80-inch/2000U configuration with 50 HP main spindle, 2,000 RPM maximum speed and 185 mm spindle bore. Supplied OP20 control photo shows 488:56:25 power-on time and 40:06:52 total cutting time; photographed readings are not independently verified lifetime totals. Offered individually. Final installed work holding and included options require confirmation.
Model.............................................Smooth G Quick Turn 450 x 80"
Smooth............................................Smooth G Control
Year..............................................2018
Max Swing.........................................31.89"
Max Swing Over Cross Slide........................32.68"
Max Cutting Diameter..............................22.83"
Max Cutting Length................................80"
Spindle Nose......................................A2-15
Spindle Speed.....................................2,000 RPM'S
Chuck Size SMW Model BBN 470/191..................18" SMW W/7.28 Bore
Spindle Bore......................................7.28"
Max Bar Capacity..................................7.2"
Turret Capacity...................................12D / 24
Main Motor........................................50 HP
Floor Space.......................................R-L 200" X F-90"
Machine Height....................................90"
Weight............................................23,000 Lbs.
Equipped With:
EIA/ISO Pkg.......................................Yes
Tooling
ATLM..............................................Yes
18" SMW AutoBlok BBN 470/191 Air Chuck............Yes
Additional Coolant Nozzle - Head..................Yes
HI-Pressure Coolant 118 psi.......................Yes
Rear Chuck Prep...................................Yes
Chip Conveyor.....................................Yes
Mazak Quick Turn 450/2000 CNC lathe, identified as OP20, with Mazatrol SmoothG control. Documented 80-inch/2000U configuration with 50 HP main spindle, 2,000 RPM maximum speed and 185 mm spindle bore. Supplied OP20 control photo shows 488:56:25 power-on time and 40:06:52 total cutting time; photographed readings are not independently verified lifetime totals. Offered individually. Final installed work holding and included options require confirmation.
Imperial
| Swing | 31.89" |
| Center Distance | 80" |
| Turning Dia | 32.68" |
| Max RPM | 2,000 RPM |
| Bar Capacity | 7.32" |
| Chuck Size | 18" |
| Tailstock | Yes |
| Power | 50 hp |
| # Axis | 2 |
| Control | CNC (Mazatrol Smooth G) |
| Dimensions | R-L 200" X F-B 90" X Height 90" |
| Weight | 23,000 Lbs. |
Model.............................................Smooth G Quick Turn 450 x 80"
Smooth............................................Smooth G Control
Year..............................................2018
Max Swing.........................................31.89"
Max Swing Over Cross Slide........................32.68"
Max Cutting Diameter..............................22.83"
Max Cutting Length................................80"
Spindle Nose......................................A2-15
Spindle Speed.....................................2,000 RPM'S
Chuck Size SMW Model BBN 470/191..................18" SMW W/7.28 Bore
Spindle Bore......................................7.28"
Max Bar Capacity..................................7.2"
Turret Capacity...................................12D / 24
Main Motor........................................50 HP
Floor Space.......................................R-L 200" X F-90"
Machine Height....................................90"
Weight............................................23,000 Lbs.
Equipped With:
EIA/ISO Pkg.......................................Yes
Tooling
ATLM..............................................Yes
18" SMW AutoBlok BBN 470/191 Air Chuck............Yes
Additional Coolant Nozzle - Head..................Yes
HI-Pressure Coolant 118 psi.......................Yes
Rear Chuck Prep...................................Yes
Chip Conveyor.....................................Yes
