2001Weiler Model E-90X177 CNC Flatbed Lathe
Have one to sell?
ConditionUsed
1 available

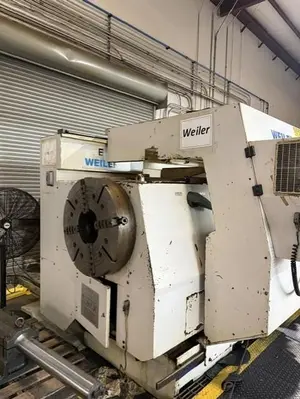

2001 Weiler Model E-90X177 CNC Flatbed Lathe
The 2001 Weiler E90 x 177" Oil Country CNC Lathe offers robust construction and precision for

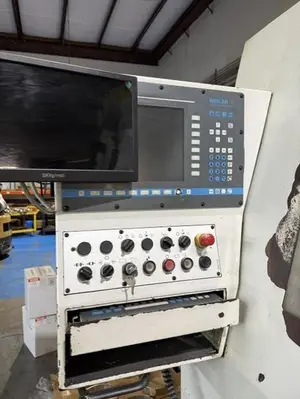

demanding applications. This used CNC lathe is equipped with a Weiler Control (Siemens)
system, ensuring reliable performance and accuracy. A chip conveyor is included for efficient
handling of waste, while a 31" chuck with a 10" bore provides substantial capacity for
handling large workpieces. The lathe supports threading cycles and features both front and
rear chucks for versatility.
With a maximum swing of 35.40" and a swing over the cross slide of 20.9", this model
accommodates larger components effectively. The distance between centers stretches 177",
offering significant support for lengthy workpieces. The spindle bore measures 10.3", and
spindle speeds range from 1 to 700 RPM, allowing flexibility in various machining tasks.
Powered by a drive capable of 60 HP at 60% duty cycle and 49.6 HP at 100%, the lathe can
handle substantial workloads.
Additional features include a tailstock quill taper of MT 6, further underlining its suitability for
demanding oil country applications. This Weiler lathe combines durability and precision,
making it an excellent option for industries requiring heavy-duty lathe functions.
Equipped With
EQUIPPED WITH: Weiler Control (Siemens) Chip Conveyor 31" Chuck with 10" Bore Threading
Cycle Front and Rear Chuck
Manufacturer...............................Weiler
Model......................................E 90
Year.......................................2001
Control Type...............................Weiler
Maximum Swing..............................35.43"
Swing Over Cross Slide.....................20.09″
Cross Slide Travel.........................23.2"
Turning Length / Center Distance...........177″
Width Of Bed...............................23.6″
Spindle Speed..............................1 ~ 500 RPM
Feed Range.................................0.00004 To 2.0
Threading Range............................1/64 To 112 TPI
Rapid Traverse Range Z / X Axis............394 / 197 IPM
Spindle Bore...............................10.2″
Chuck Size Front...........................32" 4-Jaw
Chuck Size Rear............................32" 4-Jaw
Tail Stock Quill Diameter..................5.5″
Tail Stock Quill Travel....................7.87″
Tail Stock Inside Taper Of Quill...........6 MT
Spindle Motor 2 Gear Stages................50/60HP
Wired......................................230 Volts / 3 Phase
Dimensions.................................R-L 277″ x F-B 91″
Height.....................................75″
Weight.....................................26,750 lbs.
Steady Rest with Roller Jaws...............8.66”-15.75”
EQUIPPED WITH:

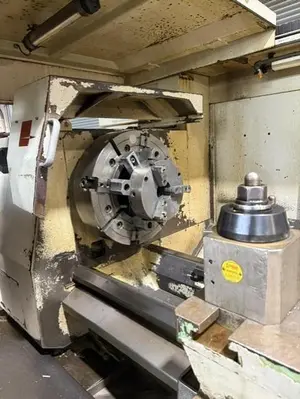

•31” 4-Jaw Oil Country Independent Chuck w/ 10.3” Hole (Front)
•31” 4-Jaw Oil Country Independent Chuck w/ 10.3” Hole (Rear)

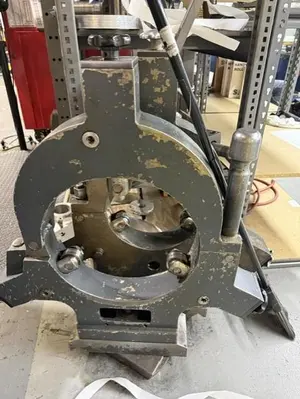

•Steady Rest with Roller Jaws 8.66”-15.75” diameter
•Rear Quill adjustable from front
•Extended Quills for Roller Jaws 0.787”-8.66” diameter

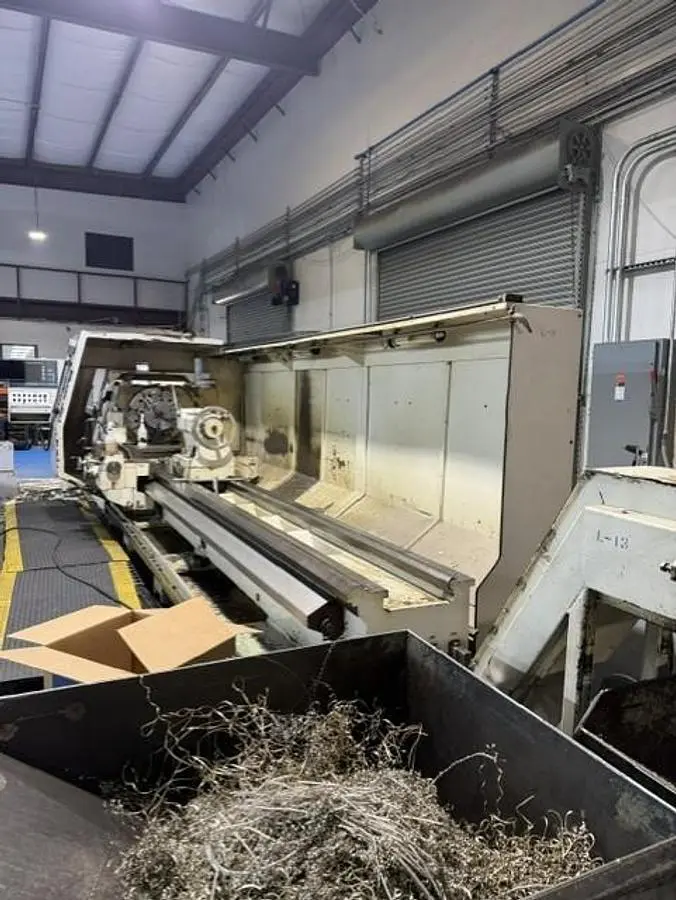

•Chip Conveyor for 177” Center Distance Machine

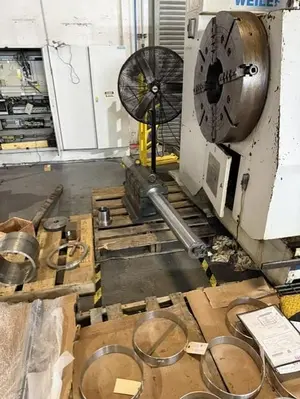

•Removable 4” diameter Boring Bar Block
2001 Weiler Model E-90X177 CNC Flatbed Lathe
The 2001 Weiler E90 x 177" Oil Country CNC Lathe offers robust construction and precision for
demanding applications. This used CNC lathe is equipped with a Weiler Control (Siemens)
system, ensuring reliable performance and accuracy. A chip conveyor is included for efficient
handling of waste, while a 31" chuck with a 10" bore provides substantial capacity for
handling large workpieces. The lathe supports threading cycles and features both front and
rear chucks for versatility.
With a maximum swing of 35.40" and a swing over the cross slide of 20.9", this model
accommodates larger components effectively. The distance between centers stretches 177",
offering significant support for lengthy workpieces. The spindle bore measures 10.3", and
spindle speeds range from 1 to 700 RPM, allowing flexibility in various machining tasks.
Powered by a drive capable of 60 HP at 60% duty cycle and 49.6 HP at 100%, the lathe can
handle substantial workloads.
Additional features include a tailstock quill taper of MT 6, further underlining its suitability for
demanding oil country applications. This Weiler lathe combines durability and precision,
making it an excellent option for industries requiring heavy-duty lathe functions.
Equipped With
EQUIPPED WITH: Weiler Control (Siemens) Chip Conveyor 31" Chuck with 10" Bore Threading
Cycle Front and Rear Chuck
Imperial
| Swing | 35.43" |
| Turning Dia | 22.23" |
| Center Distance | 177" |
| Bar Capacity | 10.2" |
| Tailstock | Yes |
| Max RPM | 700 RPM |
| Chuck Size | 32" |
| Power | 6,049.6 hp |
| Control | CNC |
| Dimensions | R-L 277″ x F-B 91″ X Height 75 |
| Weight | 26,750 Lbs. |
Manufacturer...............................Weiler
Model......................................E 90
Year.......................................2001
Control Type...............................Weiler
Maximum Swing..............................35.43"
Swing Over Cross Slide.....................20.09″
Cross Slide Travel.........................23.2"
Turning Length / Center Distance...........177″
Width Of Bed...............................23.6″
Spindle Speed..............................1 ~ 500 RPM
Feed Range.................................0.00004 To 2.0
Threading Range............................1/64 To 112 TPI
Rapid Traverse Range Z / X Axis............394 / 197 IPM
Spindle Bore...............................10.2″
Chuck Size Front...........................32" 4-Jaw
Chuck Size Rear............................32" 4-Jaw
Tail Stock Quill Diameter..................5.5″
Tail Stock Quill Travel....................7.87″
Tail Stock Inside Taper Of Quill...........6 MT
Spindle Motor 2 Gear Stages................50/60HP
Wired......................................230 Volts / 3 Phase
Dimensions.................................R-L 277″ x F-B 91″
Height.....................................75″
Weight.....................................26,750 lbs.
Steady Rest with Roller Jaws...............8.66”-15.75”
EQUIPPED WITH:
•31” 4-Jaw Oil Country Independent Chuck w/ 10.3” Hole (Front)
•31” 4-Jaw Oil Country Independent Chuck w/ 10.3” Hole (Rear)
•Steady Rest with Roller Jaws 8.66”-15.75” diameter
•Rear Quill adjustable from front
•Extended Quills for Roller Jaws 0.787”-8.66” diameter
•Chip Conveyor for 177” Center Distance Machine
•Removable 4” diameter Boring Bar Block
