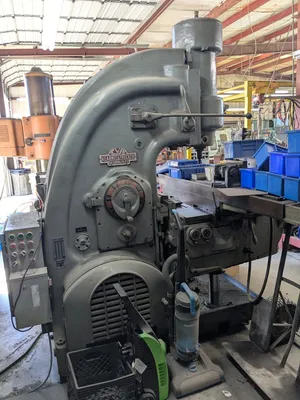

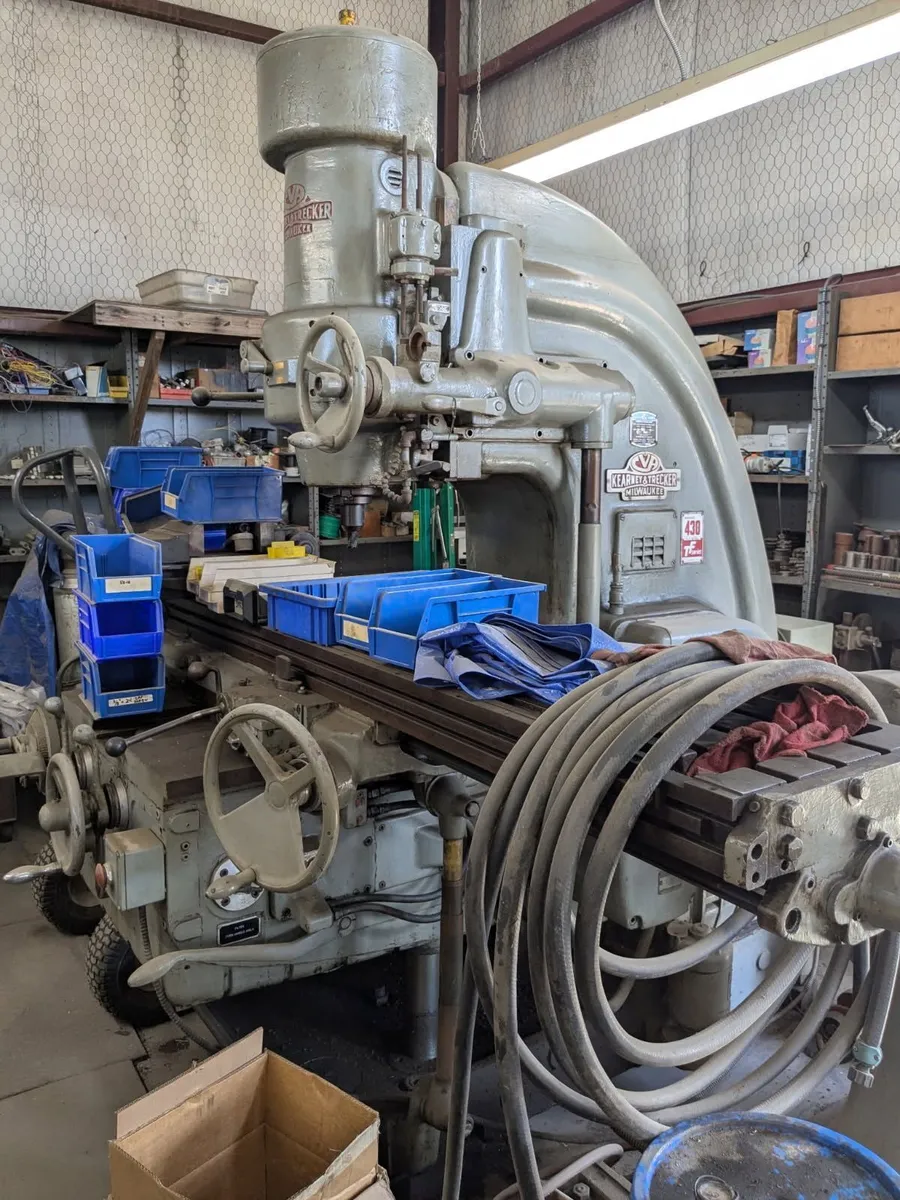

17" X 80"Used K & T Sliding Head Vertical Milling Machine
Table Size.........................................17" X 80"
Table Travel.......................................42"
Table Cross Travel.................................16"
Spindle Taper......................................# 50
Knee Travel Up & Down..............................16"

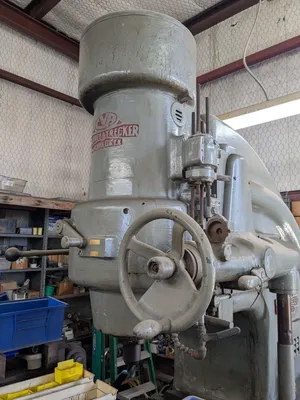

Sliding Vertical Head Travel.......................8"
Spindle Travel.....................................8"
Spindle Speeds.....................................15 To 1,500 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 20-1/2"
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Feeds Knee.........................................1/8 To 30 I.P.M.
Feeds Head.........................................3/16 To 45 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................50 I.P.M.
Rapid Head.........................................75 I.P.M.
Main Motor Two Speed...............................30/15 Hp. Wired 480 Volts 3 Phase
Weight.............................................16,100 Lbs.
Machine Floor Space................................R-L 110" X F-B 120"
Height.............................................120"
Twin Screw.........................................Yes
Coolant............................................Yes
Note:
Machine is in plant not under power. I'm trying to buy it at the present time.
Machine will be cleaned and cycled.
17" X 80"Used K & T Sliding Head Vertical Milling Machine
Imperial
| Table-W | 17" |
| Table-L | 80" |
| Travel-Long | 42" |
| Travel-Cross | 16" |
| Taper | 50 |
| RPM | 1,500 RPM |
| Power | 30 hp |
| Dimensions | R-L 110" X F-B 120" X 120" High |
| Weight | 16,100 Lbs |
Table Size.........................................17" X 80"
Table Travel.......................................42"
Table Cross Travel.................................16"
Spindle Taper......................................# 50
Knee Travel Up & Down..............................16"
Sliding Vertical Head Travel.......................8"
Spindle Travel.....................................8"
Spindle Speeds.....................................15 To 1,500 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 20-1/2"
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Feeds Knee.........................................1/8 To 30 I.P.M.
Feeds Head.........................................3/16 To 45 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................50 I.P.M.
Rapid Head.........................................75 I.P.M.
Main Motor Two Speed...............................30/15 Hp. Wired 480 Volts 3 Phase
Weight.............................................16,100 Lbs.
Machine Floor Space................................R-L 110" X F-B 120"
Height.............................................120"
Twin Screw.........................................Yes
Coolant............................................Yes
Note:
Machine is in plant not under power. I'm trying to buy it at the present time.
Machine will be cleaned and cycled.
