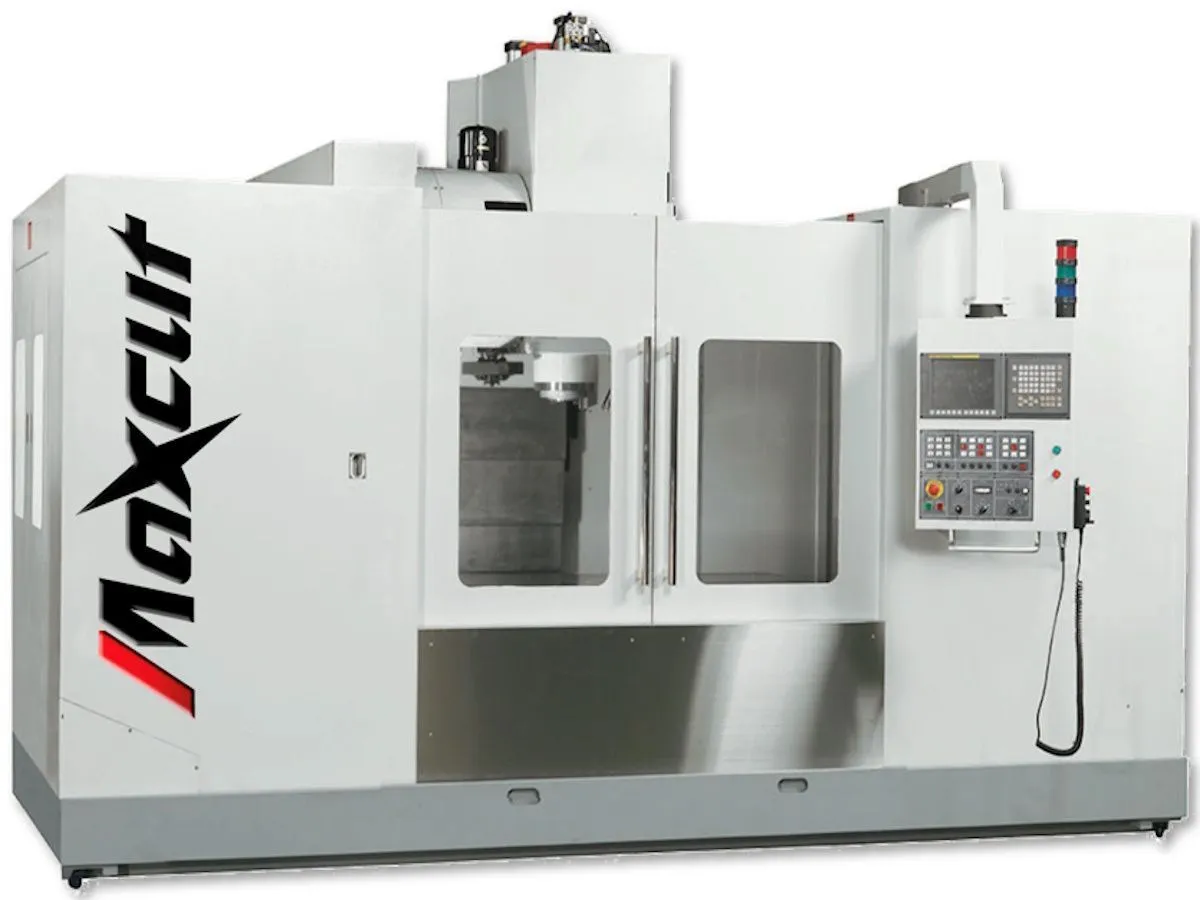

MAXCUT VMC-1700F VERTICAL MACHINING CENTER

Description

MAXCUT VMC-1700F VERTICAL MACHINING CENTER FEATURES:
The Maxcut VMC-1700F box way vertical machining center is a most valuable
investment due to the machine design being FME analyzed to ensure high rigid
durability. All the machine aspects including the control, the motion control system,
the coolant collection, the chip removal and the maintenance service are well designed
for easy operation:

The major structural components are Meehanite cast iron and heat treated to relieve stress
while assuring maximum rigidity and accuracy.
The triangulate wide-stance base incorporates a durable ribbed box design for maximum structural loads.
All castings are reinforced with heavy ribs to resist flex and dampen vibrations.
Hardened and ground ways on the three main axes with bearing surfaces plated with Turcite B for smooth
and stable movement.
The sturdy, cast-iron C-frame designed with four Y-axis guideway to ensure maximum rigidity and to provide the basis for efficient milling performance.

Hardened and ground ways on the three main axes with bearing surfaces plated with Turcite B for smooth and stable movement.
The close circuit pneumatic counterweight system with the air tank provides excellent performance
as the stable movement eases vibration for high-speed vertical rapid traverse.

The column and saddle offer:
The trapezoidal shaped column to ensure no vibration during machining to provide high machining accuracy.
The enhanced saddle and fully supported work piece structure contribute to the ability for heavy duty machining.
The craftmanship in hand scraping ensures high quality with attention to detail in the manufacturing process.
The double anchored ball screws offer large diameters anchored at both ends for parallelism to the axes guides. The high precision class ball screws are pre-tensioned to eliminate backlash.
The direct-coupled axis servo motors improve positioning accuracy and provide better contouring and threading.
The online dynamic spindle balancing instrument calibrates the spindle displacement, speed and acceleration through the full speed range.
The high-capacity cartridge spindle incorporates angular contact bearings throughout with a large
spacer between the front bearings to improve the radial thrust capacity as the cartridge design offers easy maintenance.
The one-piece design headstock offers high stability with capacity for heavy duty machining.
The spindle oil cooler assures permanent spindle accuracy and extends the spindle service life.
he ISO #50 geared head offers:
maximum 6000 rpm speed
two-step gear ratio
geared box which is dynamically balanced during the test run on the inspection table before assembly
The spindle temperature tracing is well tested before assembly on the machine. The two-hour temperature running trace is recorded to confirm the thermal expansion stability.
The fast, simple and long-life automatic tool changer provides high stability with:
the innovative cam-driven mechanism as the bi-directional tool selection is achieved by PLC software random programming the cam-driven tool magazine ensures rotation accuracy and smooth motion with full tool loads
The chip removal management system offers:
an efficient free-flow enclosure design
an efficient chip conveyor to remove the chips for operation time saving
multiple chip flushing systems for easy chip cleaning such as rear wash down with high pressure pumps and top wash down
The coolant through the spindle system uses a high-pressure pump to supply coolant through the tool cooling the cutting edge directly. This

clears chips during deep-hole drilling and tapping and increases tool life while allowing higher cutting speeds. Two systems are

available providing a separate CTS tank with 600L big capacity and a 20 bar or a 70 bar high pressure pump. The other provides a 20 bar high pressure pump built-in with the machine coolant tank requiring less floor space. Both systems include a coolant filter.
