New GATOR CHUCKS 1-115-2515 | Chucks New 3-Jaw

Product Information
Part Number...................................1-115-2515
Chuck Type....................................Scroll Self-Centering
Chuck Mount...................................A2-15
Spindle Type..................................A2-15
Chuck Diameter................................25"
Thru-Hole.....................................9.9213"
Gripping Range Min-Max........................1.18" - 24.80"
Max RPM.......................................1,000
Material......................................Forged Steel
Jaws..........................................3
Jaw Type......................................2 PC Hard Reversible
Weight Gross..................................597.01 Lbs.

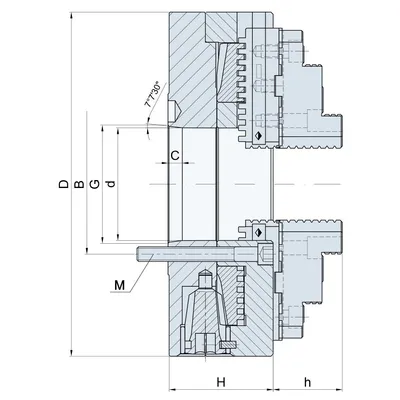

Product Dimensions
D.............................................25"
Taper Size....................................A2-15
d Hole........................................9.9213"
B (A1 & A2)...................................13"
G.............................................11.251"
C.............................................0.813"
H.............................................5.0787"
h.............................................3.622"
M Mounting Bolt Thread........................7/8"-9 TPI
M Mounting Bolt Length........................6"
Mounting Bolt.................................6
Includes
1 Set of Master and Hard Top Reversible Jaws..Yes
Chuck Mounting Bolts..........................Yes
Chuck Wrench..................................Yes
Hex Keys......................................Yes
Eye Bolts.....................................Yes
