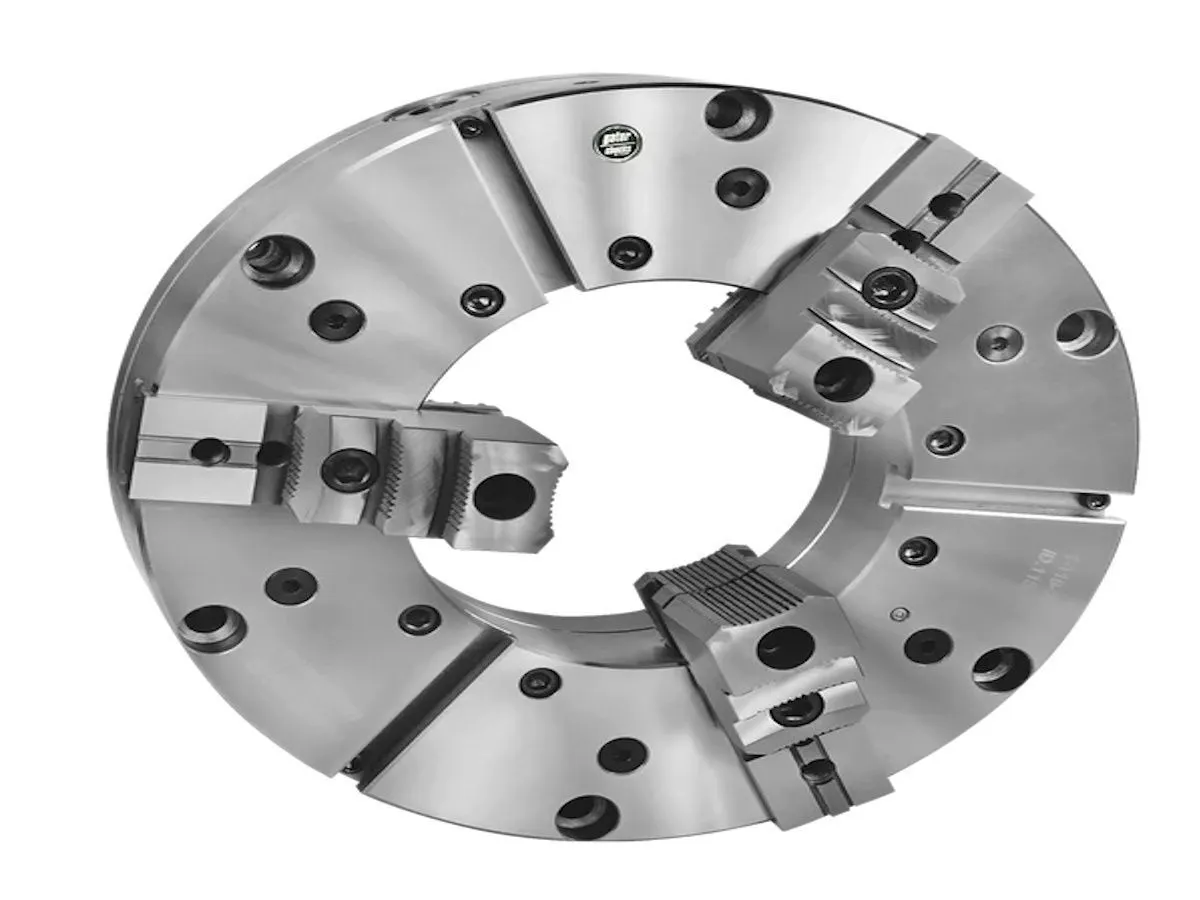

New GATOR CHUCKS 1-119-2515 | Chucks New 3-Jaw

Chuck Type.............................................HD Scroll Self-Centering
Chuck Mount............................................A2-15
Spindle Type...........................................A2-15
Chuck Diameter.........................................25"
Thru-Hole..............................................10.75"
Gripping Force per Jaw.................................18,040 LBF
Gripping Range Min-Max.................................3.15" - 24.80"
Max RPM................................................850
Number of Jaws.........................................3
Jaw Type...............................................2 PC Reversible
Weight Gross...........................................681.23 Lbs.
Includes
1 Set of Master and Hard Top Reversible Jaws,..........Yes
Chuck Mounting Bolts...................................Yes
Chuck Wrench, Hex Keys.................................Yes
Eye Bolts..............................................Yes

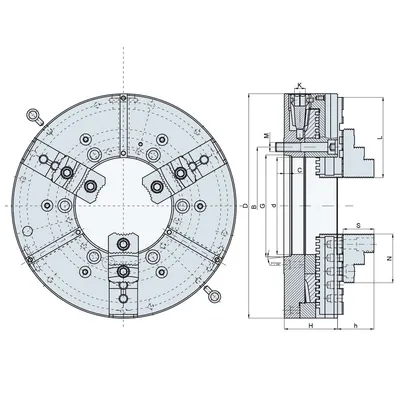

Product Dimensions
Chuck Mount...........................................A2-15
D.....................................................25"
B ....................................................13.00"
G.....................................................11.251"
d Thru-Hole Dia.......................................10.75"
H.....................................................6.063"
h.....................................................3.642"
C.....................................................0.8125"
S.....................................................3.295"
N.....................................................5.315"
K.....................................................0.866"
L.....................................................2.953"
Hard Top Jaw Width....................................3.346"
Master Jaw Width......................................3.150"
M Mounting Bolt Thread................................M24x3
Chuck Mounting Bolt Qty...............................6
Top Jaw Mounting Bolt Thread..........................7/8" - 9 TPI
