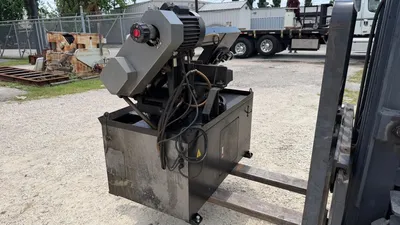

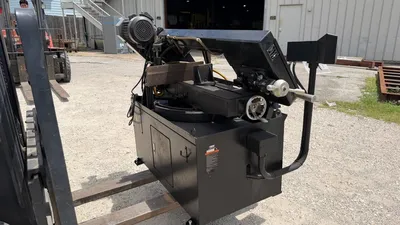

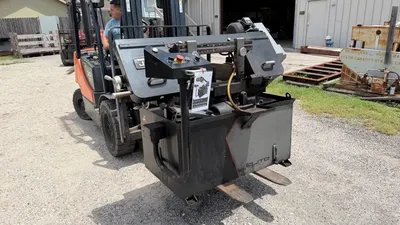

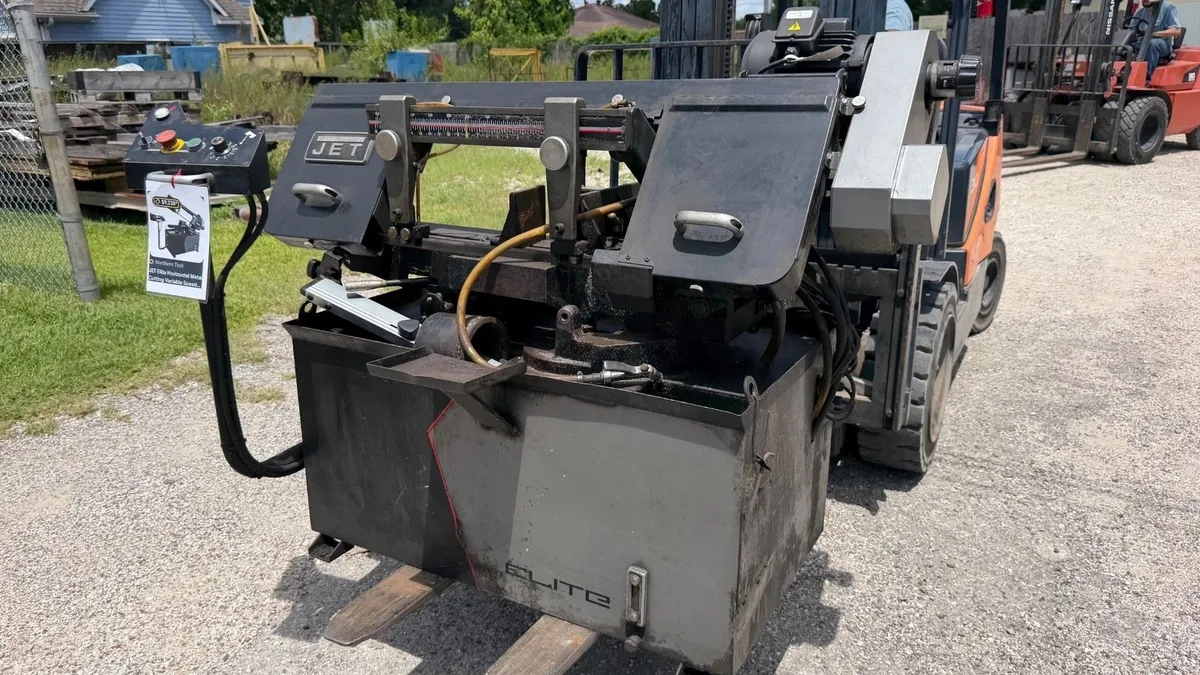

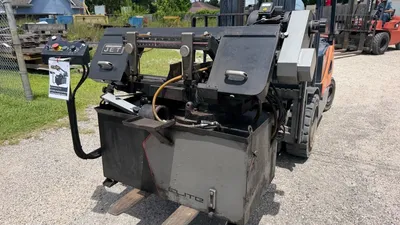

Used JET EHB-8VSM | Saws, Horizontal
Have one to sell?
ConditionUsed
1 available
Jet Model EHB-8VSM
Features
The ELITE swing away panel reloates saw controls to a single location, offering finger-tip operation of most major saw functions.
Mitering allows for angle cuts up to 45° right
For added safety, the EHB-8VSM Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in.
Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
Variable speed drivetrain allows operator to fine tune the blade speed fast and easily
Integrated pressurized wash hose for easy machine cleaning
Quick positioning vise for clamping of materials
Large handwheel with blade tensioning gauge acurately measures blade pressure
Automatic blade shut off switch stops the sawing process
Hydraulic downfeed control is easily adjusted enabling feed feed rates to evolve with the variaous types of materials
Built-in, self-propelled chip brush prevents chip build up in blade guides.
Blade is fully guarded for operators' safety
Type...........................................Manual
Cutting Capacity Width & Depth.................8" x 13"
Round at 90 Degrees............................8"
Round at 45 Degrees............................8"
Rectangle at 90 Degrees........................13" x 5-1/4"
Rectangle at 45 Degrees........................8" x 8" or 2" x 9-1/2"
Square at 90 Degrees...........................8" x 8"
Square at 45 Degrees...........................8" x 8"
Vise Swivels...................................45 Degrees
Head Movement..................................45 Degrees
Blade Size.....................................1" x .035" x 114-1/2"
Blade Wheel Diameter...........................11-5/8"
Blade Length...................................114-1/2"
Blade Speeds...................................82 - 310 SFPM
Bed Height.....................................30"
Motor Hp.......................................1-1/2HP, 115/230V, 1PH
Overall Dimensions.............................R-L 62-1/2" x F-B 23"
Height.........................................48"
Weight.........................................792 Lbs.
Standard Equipment
Coolant System
Quick positioning vise........................Yes
Adjustable material stops.....................Yes
