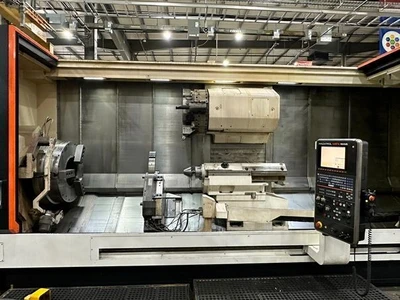

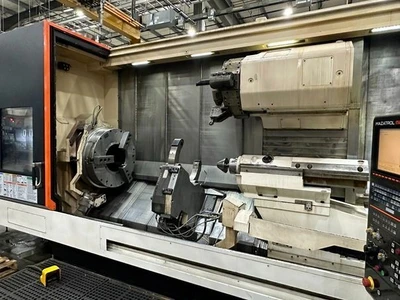

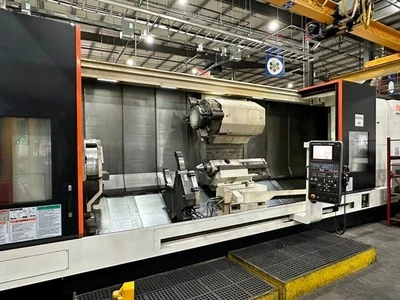

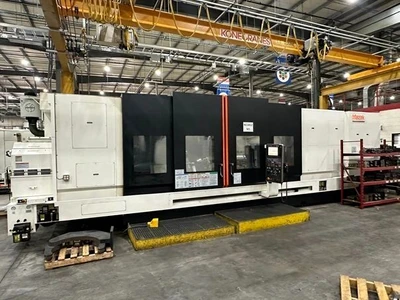

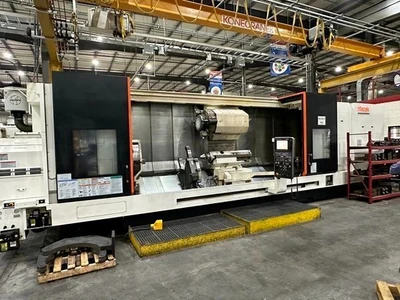

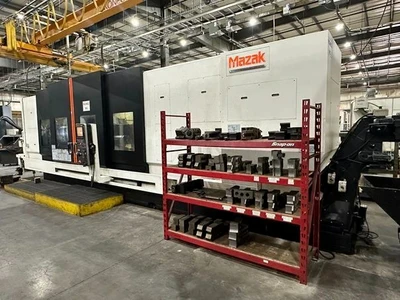

Used 2012 MAZAK CYBERTECH TURN 5500M | CNC Lathes, Slant Beds

Manufacturer......................................Mazak
Model.............................................Cybertech Turn 5500M
Year..............................................2012
Control ..........................................Mitsubishi Matrix Nexus Controller
Maximum swing.....................................36.02”
Swing over cross slide upper turret...............27.56”
Maximum machining diameter upper turret...........31.89
Trave Z- axis.....................................123"
Maximum machining length upper turret.............157.0”
Rotating speed (min-1)............................2 to 500
Through-hole diameter.............................14.76”
Main Spindle Index................................C-AXIS
Spindle nose......................................JIS A2-20”
Chuck Size........................................32
Live tooling speed................................3,000 rpm's
Main Spindle......................................60 hp
Milling output (Continuous/Half-hourly rating)....15 hp
Additional Manual Steady Rest Max.................23.5”
SMW-AUTOBLOK K6-ZSW Hydraulic Steady Rest min/max.5.31” to 18.11”
Movement stroke tailstock.........................157.00
Weight............................................70,000 Lbs.

Equipped With (subject to buyer verification):
Live Tooling
Pneumatic Main Chuck: BP 800-375
Tailstock
Boring Bar Stocker
Tool Eye
Chiller
Three (3) ID holders: grooving, finish bore, rough bore
Three (3) OD holders; grooving, finish, roughing
Twenty-One (21) sets of various size soft jaws
Note:
Mchine May be seen under power in Canadian plant with proper notice.
Buyer is responsible for removal from plant, freight and any and
all tariffs and taxes.
