42" X 160" New Webb Heavy-Duty Engine Lathe
Have one to sell?
ConditionNew
New
42" X 160" New Webb Heavy-Duty Engine Lathe
WEBB MA 42/50 Large Swing Heavy Duty Precision Lathes
Super heavy-duty large swing high speed precision gap lathes
Massive meehanite cast beds and base.
Turcite coated female coated slide ways for superior oil retention and longer way life
Large 6″ spindle bore standard, optional 9″ or 12″ bore
Main motor 20 Hp. optional 25 and 30 Hp. 220/440 volts electrics
Rapid traverse motor on apron and compound.
Modern compact construction

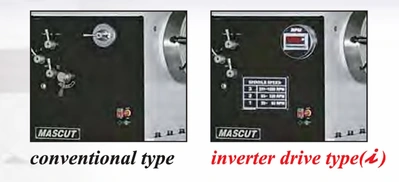

Optional inverter drive system
Exclusive importer since 1985
Magnetic brake system
18 speed head stock
Optional dual chuck system
Inch metric threading
Economically priced through one of the largest importers in the USA.
Superior Webb quality, customer service 6 days, overnight shipping on parts

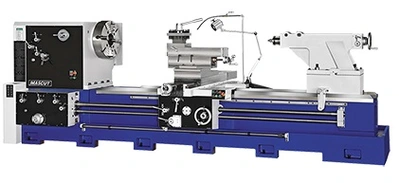

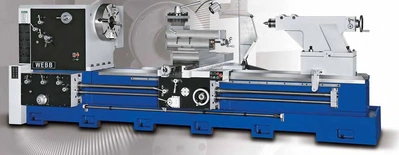

WEBB MA 42 X 160G SUPER HEAVY-DUTY HIGH-SPEED PRECISION GAP LATHE
LARGE 6-1/8" SPINDLE BORE, A-2-11 MOUNT, 5-615 RPM. 18 SPEEDS
30 H.P. MOTOR 440 VOLTS, MEEHANITE CASTINGS, ROLLER STEADY REST,
MACHINE WEIGHT 18,960 LBS SIX-WAY RAPID TRAVEL CARRIAGE AND COMPOUND,
COOLANT SYSTEM, MAGNETIC BRAKEFOR SPINDLE STOP. AUTO LUBE IN APRON,

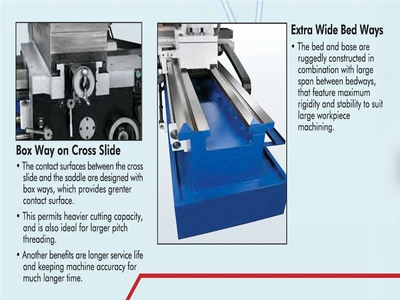

MASSIVE WIDE BED WAYS, SUPER WIDE BED WAYS. BOX WAY CROSS SLIDE,
FULL LENGTH SPLASH GUARD 6 POSITION RAPID TRAVEL INCLUDING COMPOUND
TOOLBOX, MANUALS.
SAME FACTORY SINCE 1985. 8500 LATHES SOLD IN USA
Swing Over Bed Ways............................42.1"
Swing Over Cross Slide.........................29.29"
Swing In Gap...................................61.12"
Length Of Gap..................................22.4"
Width Of Bed...................................17.7"
Cross Slide Travel.............................27.5"
Compound Travel................................14.96
Center Distance................................160"
Weight Between Center With Tailstock...........8,800 Lbs.
Weight Between Center With Tailstock & Steady..11,000 Lbs.
Spindle Hole...................................6.12"
Spindle Speeds (18 Speeds).....................5 To 615 Rpm's
Spindle Nose...................................A-2-11
Chuck size Rear................................32" 4-Jaw Factory Chuck
Feeds Cross....................................0.025 To 0.76 MM IPR
Feeds Long.....................................0.05 To 1.52 MM IPR
Threads Inch...................................2 To 60 T.P.I.
Threads Metric.................................1 To 30 MM
D.P............................................4 To 56 T.P.I.
Module.........................................0.5 To 15 M
Lead Screw Diameter And Threads................2 TPI
Tail Stock Quill Diameter......................4.1"
Tail Stock Quill Travel........................8.6"
Tail Stock Taper...............................# 5 Morse
Coolant Pump Motor.............................1/16 Hp.
Main Motor.....................................25 Hp.
Voltage........................................480 Volts
Rapid Traverse Long............................3/4 Hp.
Machine Length.................................246"
Machine Width..................................72.4"
Machine Height.................................69.2"
Machine Weight.................................18,960 Lbs.
Taper Attachment...............................Yes
Steady Rest Capacity (3.937"-15.748")..........Yes
Steady Rest Capacity (14.960"-23.622").........Yes
Newall D.R.O...................................Yes
Newall DRO System Installed....................Yes
Quick Change Tool Post And 5 Holders...........Yes
Rear Adaptor Plate (A-11)......................Yes
Six-Way Rapid Traverse.........................Yes
Full Length Rear Splash Guard..................Yes
Optional:
Main Motor 25 Hp...............................$2,890.00
Taper Attachment...............................$8,900.00
Steady Rest Capacity (3.937"-15.748")..........%5,690.00
Steady Rest Capacity (14.960"-23.622").........$6,990.00
Full Length Splash Guard.......................$3,340.00
Newall DRO System..............................$8,950.00
Newall DRO System Installed....................$950.00
Quick Change Tool Post And 5 Holders...........$3890.00
Rear Adaptor Plate (A-11)......................$2,890.00
Electric For 480 Volts.........................$2,000.00
Chucks:
25" 4-Jaw Direct Mount With Top Jaws...........$8,690.00
32" 4-Jaw Direct Mount With Top Jaws...........$11,700.00
Gator Chuck
32" 4-Jaw Direct Mount With Top Jaws...........$12,700.00
Note: Prices are subject to change without warning.
Delivery is 120 To 160 days after receipt of purchase order and down payment of 60%.
WEBB MA 42 Swing MASSIVE CUT Engine Lathes
WEBB Lathes are 100% Taiwan Built Machines with an Unmatched Reputation for Long Service.
We maintain a Complete Inventory of Parts. Friendly Staff for Over 40 Years!
Each Machine Includes the Following Standard Features
Heavy Duty Certified Meehanite Castings, Removable Gap Bed, Turcite Coated Female Surface's, Inch /Metric Dials, Automatic Forced Lubrication, Tail Stock, A1-11 Spindle, 6" Spindle Bore, 20 HP, Inch Metric Threading, Flood Coolant, Rear Chip Guard, Longitudinal Adjustable Stop, Center Sleeve, 2 Dead Centers, Touch Up Paint, Adjustment Tools, Operators and Parts Manuals.
NOW Optionally Available with Inverter Head and Constant Surface Speed Via PLC
