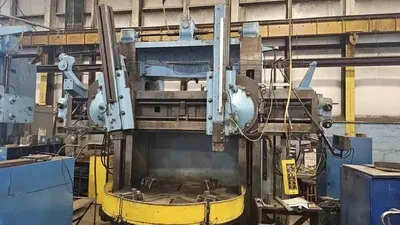

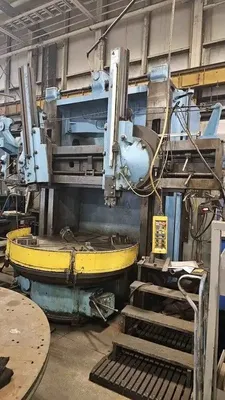

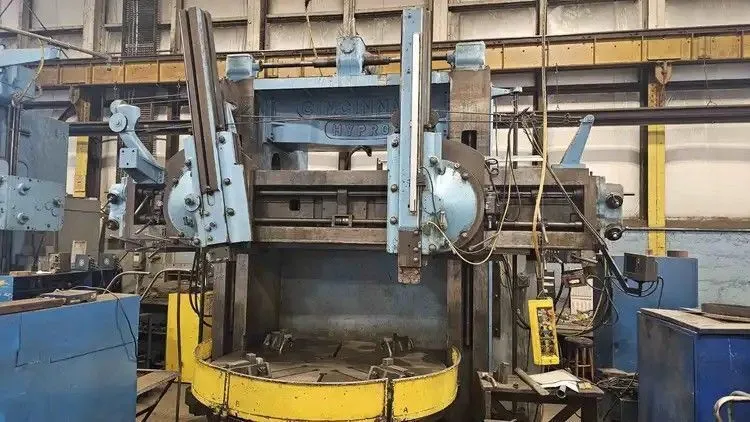

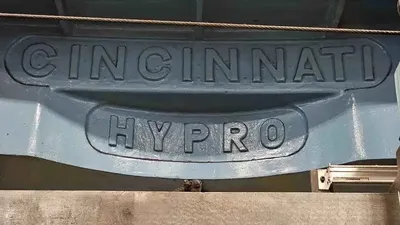

Cincinnati Hy-Pro Model 72 Vertical Boring Mill

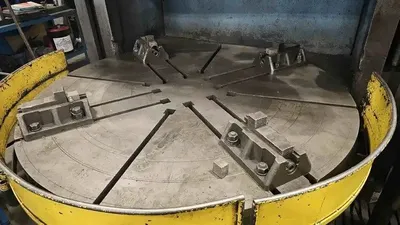

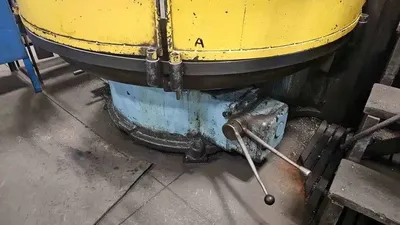

Table Size...........................................72"
Boring Mill Jaws.....................................4
Max. Swing...........................................79"
Height Under Rail....................................62"
Max. Height Under Ram Head...........................60.5"
Table Speed..........................................1 To 135 Rpm's

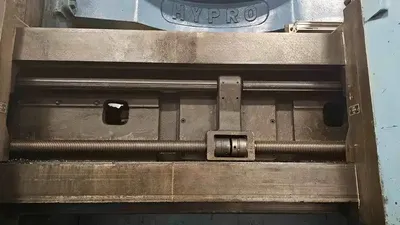

Rail Travel..........................................66"

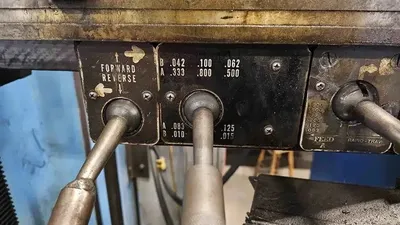

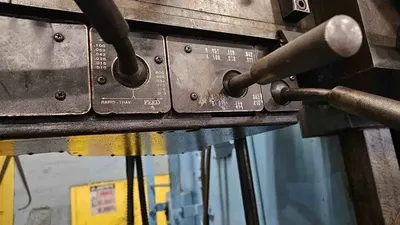

Feeds................................................0.010 To .800 I.P.M.

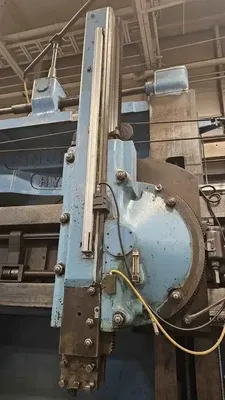

Right Ram Head Swivel................................60 +/-Degrees
Right Ram Head Travel Left To Right..................45"
Right Ram Head Travel Up & Down......................34"
Ram Diameters........................................7"

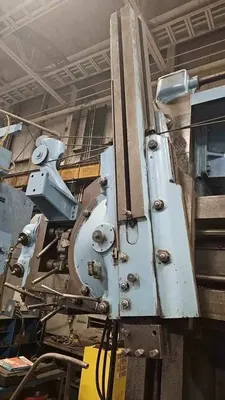

Left Ram Head Swivel.................................60 +/-Degrees
Left Ram Head Travel Left To Right...................45"
Left Ram Head Travel Up & Down.......................34"
Main Motor...........................................40 Hp. 575 Volt /3 Phase
Machine Width Left To Right..........................14'
Machine Depth Front To Back..........................12'
Machine Height.......................................12'
Machine Weight.......................................65,000 Lbs.
Rapids...............................................Yes

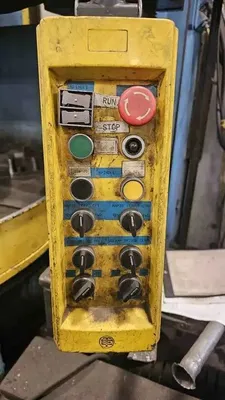

Pendant Control......................................Yes
Floor Mount..........................................Yes (No Pit)
Heidenhain Digital Readout...........................2 Axis
Pendent Control......................................Yes
Power Elevation......................................Yes
Variable Speed.......................................Yes
Floor Standing.......................................Yes

Note:

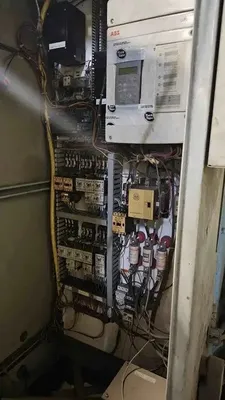

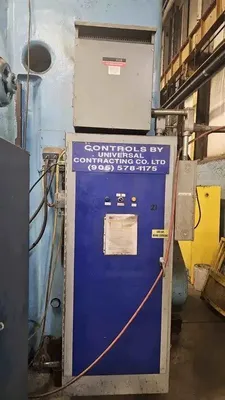

Machine has updated spindle drive and pendant.
