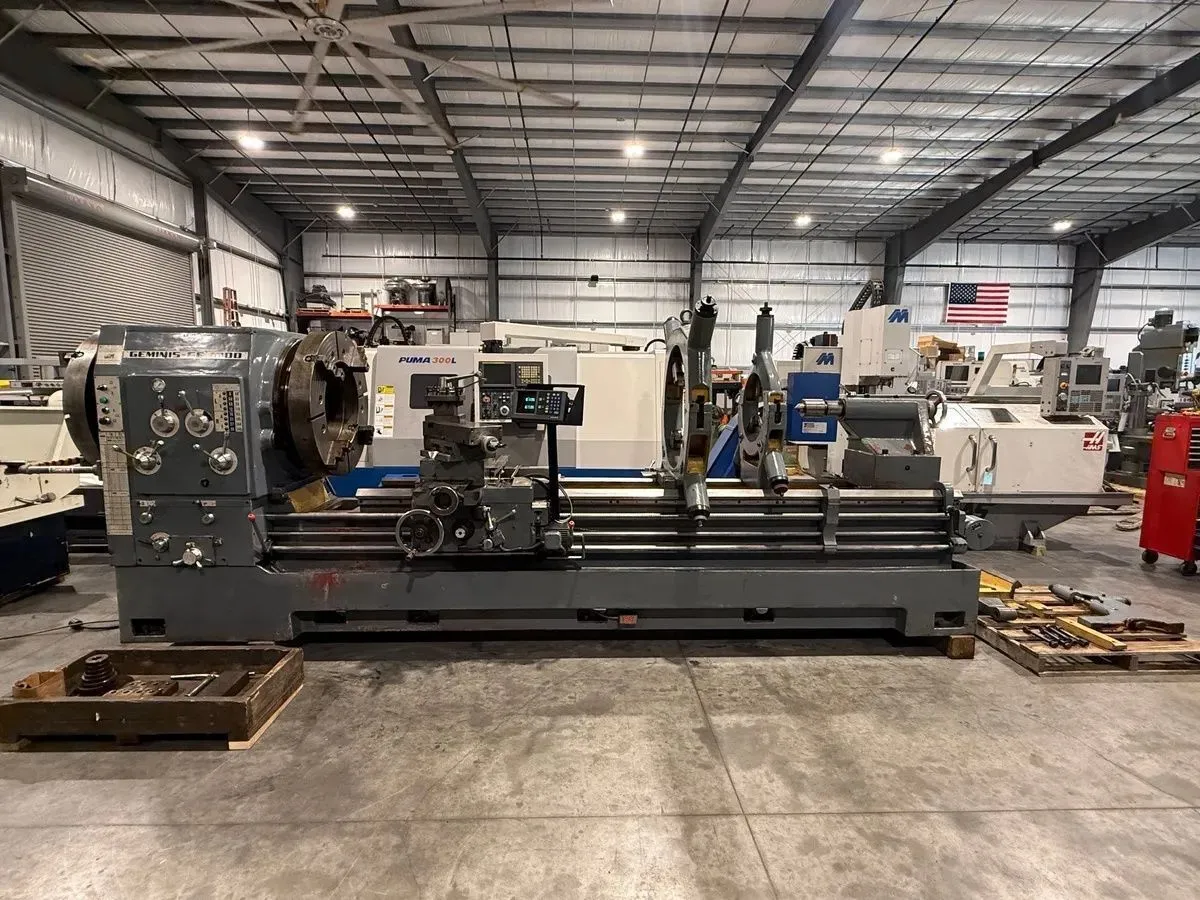

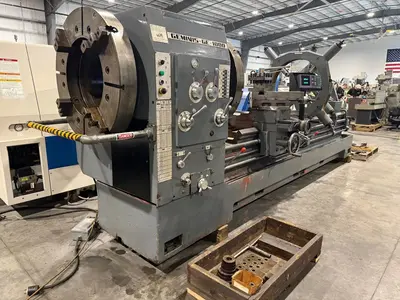

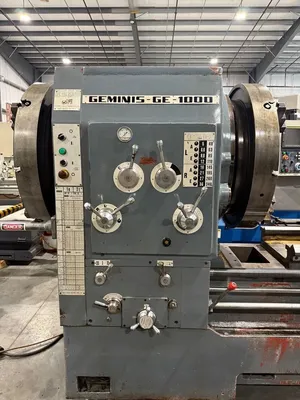

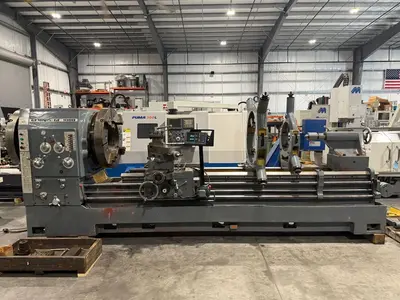

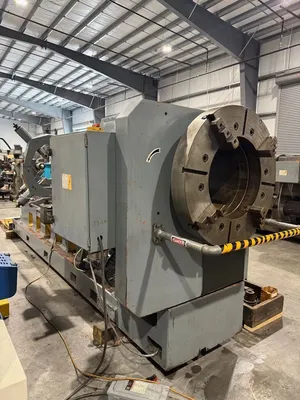

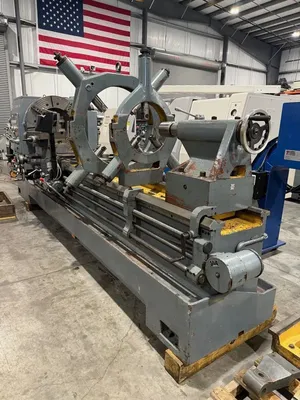

GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE
GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE
Swing over bed ways.................................39-3/8”
Swing in Gap........................................48-3/4”
Swing over cross slide..............................28-3/8”
Length of gap.......................................13-3/8”
Distance between center.............................120”cc
Spindle bore........................................20.25”

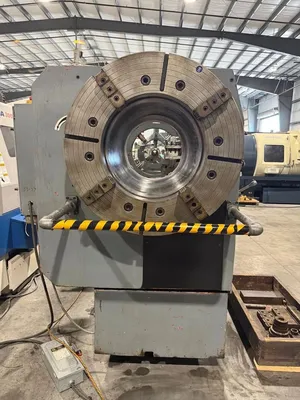

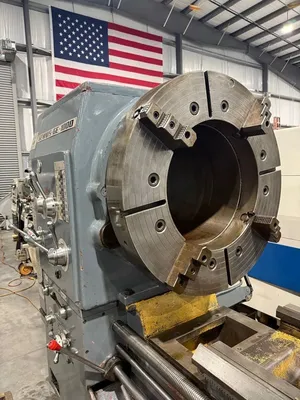

Chucks..............................................(2) 35” 4- Jaws
Spindle speeds.......................................5 – 340 R.P.M.
Inch threading.......................................1 – 56 T.P.I.
MM threading.........................................0.5 – 30 mm
Bed width............................................21-5/8”

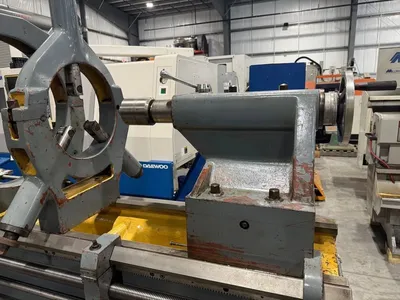

Tailstock quill travel...............................12”
Tailstock quill taper................................#6 Morse

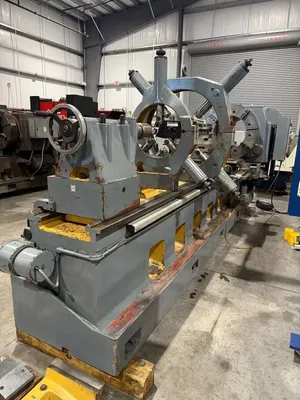

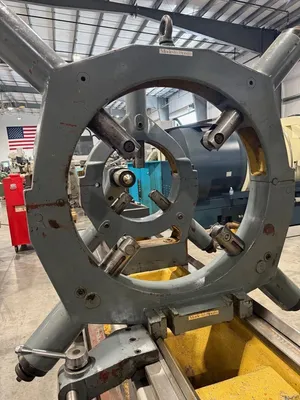

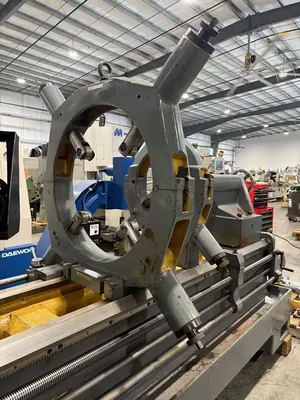

Steady Rest Capacity.................................30-1/2" & 17"
Main Motor...........................................30 H.P. Motor
Machine is wired.....................................460 volt / 3 phase / 60 H.Z.
Floor Space..........................................R-L 220" X F-B 85"
Height...............................................90"
Machine weight.......................................20,000 Lbs.

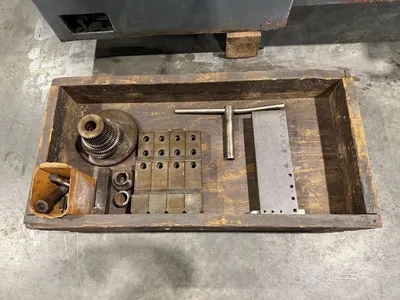

Equipped With:
Follow rest..........................................Yes

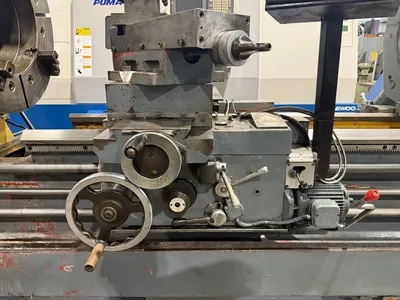

Power rapids on carriage.............................Yes

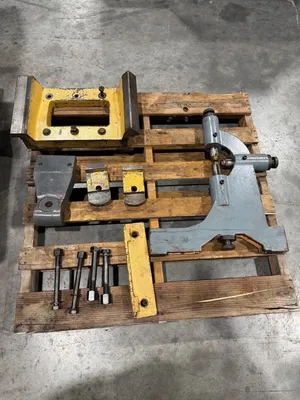

Taper attachment & Extra guide block.................Yes
Live Center..........................................Yes

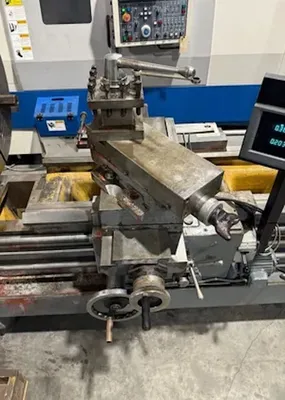

4-way tool post......................................Yes
Change gears.........................................Yes
Coolant pump with built in reservoir.................Yes

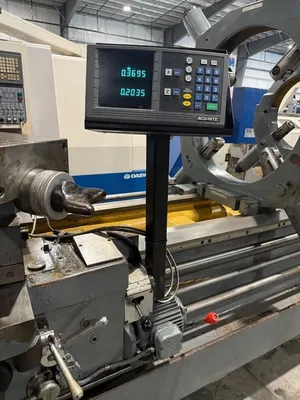

ACURITE 2 axis DRO Digital Read Out..................Yes
Machine location- F.O.B. Florida
