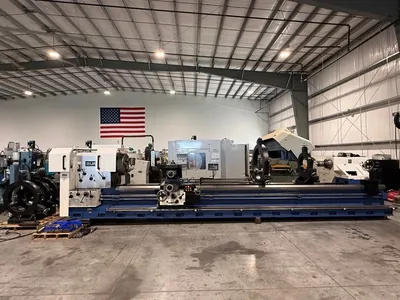

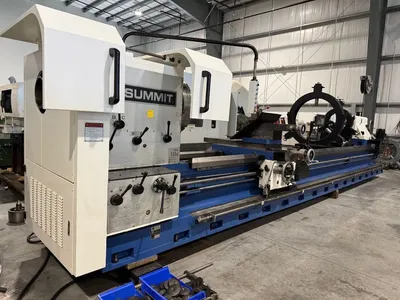

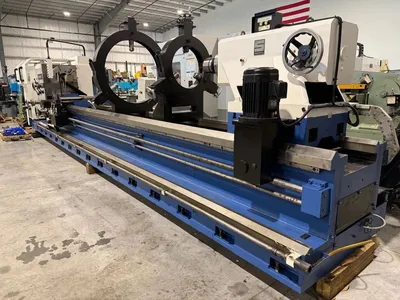

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO Year 2013

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe Year 2013, 9” Bore, DRO
Specifications:

Swing over bed-..............................................47”
Swing over cross slide.......................................32.6”
Distance between centers.....................................240”
Maximum workpiece between centers............................22,000 Lbs. (supported)
Spindle nose.................................................A2-15

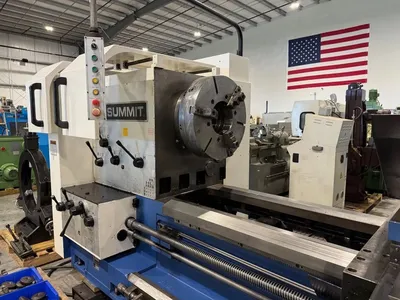

BISON “SET-TRU” 3 Jaw Chuck..................................25"
Spindle bore.................................................9”
Spindle speeds...............................................6 – 400 R.P.M.
Cross slide travel...........................................30.7”
Compound travel..............................................13.7”
Bed width....................................................31.5”
Leadscrew diameter...........................................1.97”
Longitudinal feeds 48........................................0.13 – 1.92 I.P.R.
Cross feeds 48 ..............................................0.065 - .96 I.P.R.
Inch threads 48..............................................1 – 15 T.P.I.
Metric threads 48............................................2 – 30 mm
Tailstock taper.............................................#7 Morse taper
Tailstock quill travel......................................11.8”
Tailstock quill diameter....................................7.9”
Main Motor..................................................40 hp.
Floor Space.................................................R-L 360" X F-B 87" X
Height......................................................83"
Weight......................................................43,120 Lbs.

Equipped With:

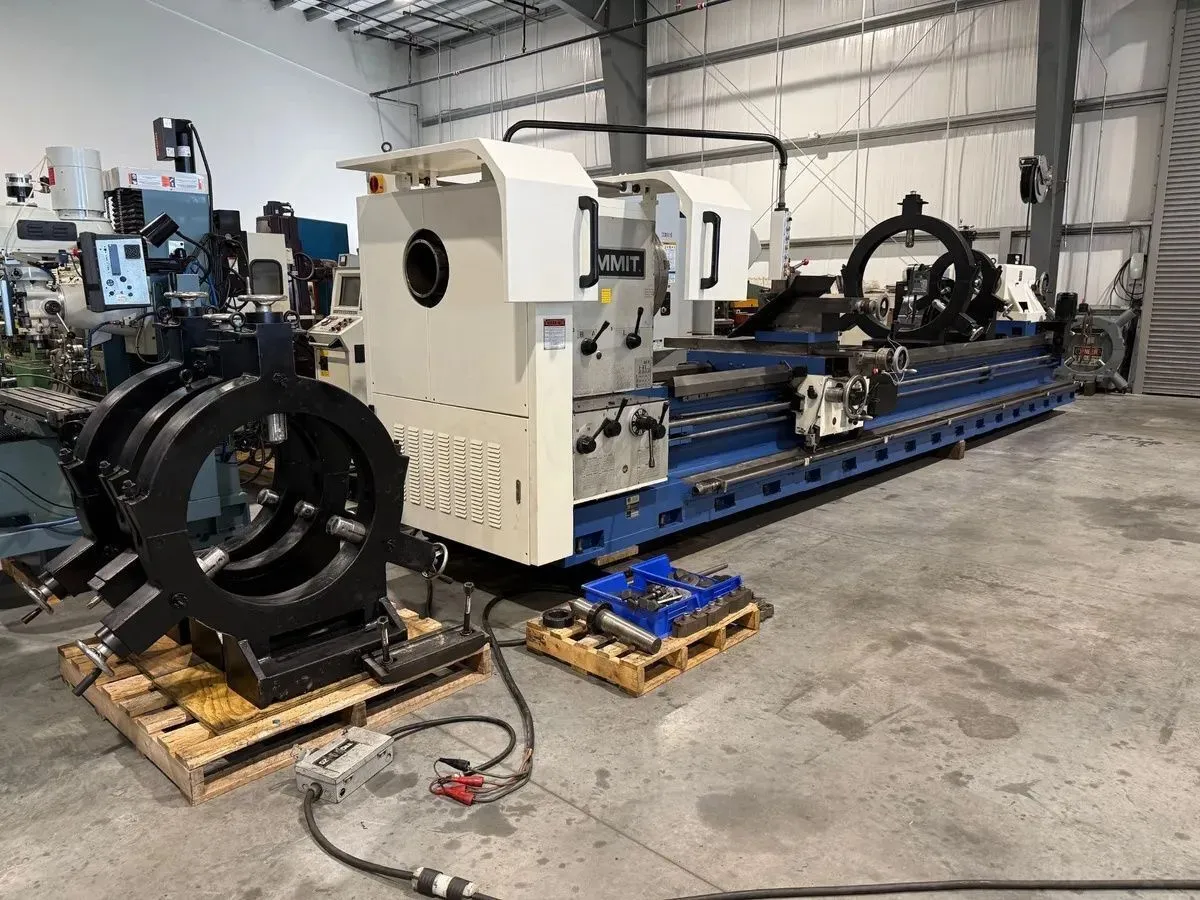

(5) Steady Rest Roller type-
35” Capacity, (2) 25” Capacity, 23” Capacity, 17” Capacity
Full cast HD Base design....................................Yes

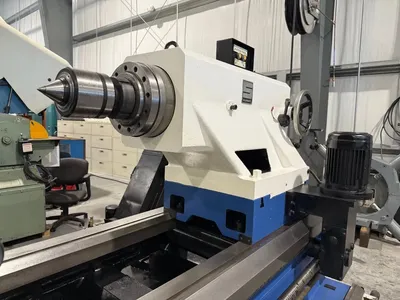

Power tailstock.............................................Yes

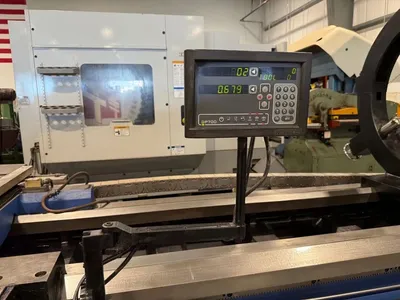

2 Axis NEWAL DRO Digital Readout............................Yes
Full length chip conveyor...................................Yes
2-way power rapids..........................................Yes
HD Live center..............................................Yes
Dead center.................................................Yes
DORIAN HD Tool Post.........................................Yes
Leveling Pads...............................................Yes

Machine location- F.O.B. Florida
