16" X 60" New Webb Engine Lathe model 1660G
Have one to sell?
ConditionNew
New

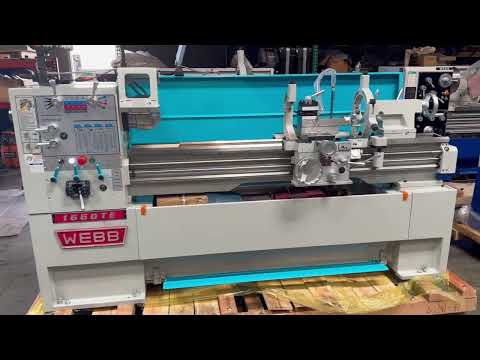

16" X 60" New Webb Engine Lathe Model TE1660G
Standard Features of TE 1640G/1660G:
Bed is made of high tensile case iron FC25, hardened and ground bed ways, gears and shafts on headstock are hardened and precisely ground, emergency foot brake is equipped for cutting the power and stopping the machine immediately, open type chip pan designed to remove chips, starting lever with safety device, apron is equipped with an interlock safety device to prevent feeding inter-gearing on the automatic feed and half-nut operation, overload safety device is equipped to shut off feeding automatically when the longitudinal or cross feeding is overloaded or touching and obstacle.
WEBB TE 16X40G HIGH SPEED PRECISION GAP BED LATHE WITH TOOLING PACKAGE
OVERSIZED CONSTRUCTION WITH ONE PIECE CAST BED AND BASE. 3500 LBS.
REMOVABLE FRONT CHIP PAN, ONE SHOT APRON OILER, PRECISION LATHE 8" 3 JAW
AND 10" 4 JAW CHUCKS , DIRECT MOUNT D-1-6 , 5 H.P. MAIN MOTOR 220/440 VOLTS,
COMPLETE COOLANT SYSTEM, HALOGEN WORK LAMP, FULL LENGTH SPLASH GUARD,
CHUCK GUARD, SAFETY FOOT BRAKE, 4 WAY FACTORY TOOL POST, ROLLER STEADY-
REST, FOLLOWER REST, INCH/METRIC THREADING, TOOLBOX AND MANUALS,100% TAIWAN MADE
Swing Over Bed Ways...........................16"
Swing Over Cross Slide........................9-1/2"
Swing In Gap..................................21-3/4"
Bed Width.....................................10"
Center Distance...............................60"
Compound Travel...............................3-9/16"
Cross Slide Travel............................8"
Spindle Hole..................................2-3/16"
Spindle Speeds (12)...........................50 To 2,000 Rpm's
Spindle Nose..................................D1-6
Chuck Size....................................8" 3-Jaw
Chuck Size....................................10" 4-Jaw
Feeds Cross...................................0.04 To .52 IPR
Feeds Long (32)...............................0.0017 TO 0.0242 2IPR
Threads Inch..................................4 To 56 TPI
Threads Metric................................0.4 To 7.0 MM
Lead Screw....................................1"
Tail Stock Quill Diameter.....................2-1/2"
Tail Stock Quill Travel.......................4-3/8"
Tail Stock Taper..............................# 4 Morse
Main Motor....................................5 Hp.
Machine Dimension.............................R-L 102" X R-L 48"
Machine Height................................60"
Weight........................................4,000 Lbs.
Inch And Metric Dials
Coolant Pan And Pump
Full Length Splash Guard
Thread Dial
Foot Brake
Foundation Pads
Prices Subject To Change Without Notice:
Machine Options At Additional Cost:
Accessories Description Retail Price
Quick Change Tool Post with 5 Holders......$1,090.00
Taper Tuning Attachment....................$2,440.00
Installation of Taper Attachment...........$550.00
2 Axis Newall DRO for X and Y Axis.........$3,790.00
Installation of Any 2 Axis DRO.............$600.00
Work Light (110V, 55W).....................$290.00
Single Saddle Stop.........................$325.00
Chucks:
Face Plate 14”.............................$495.00
JFK 5-C Collet Closure.....................$2,590.00
Install Collet Closure.....................$425.00
Steel Body 10" 3-Jaw D1-6
with two-piece jaws........................$3,573.00
New Gator Adjust True 10" 6-Jaw Steel Body.$3,464.00
New Gator Adjust True 10" 6-Jaw Semi Steel.$2,548.00
Adaptor Plate D1-6.........................$1,950.00
One Year Parts Warranty
