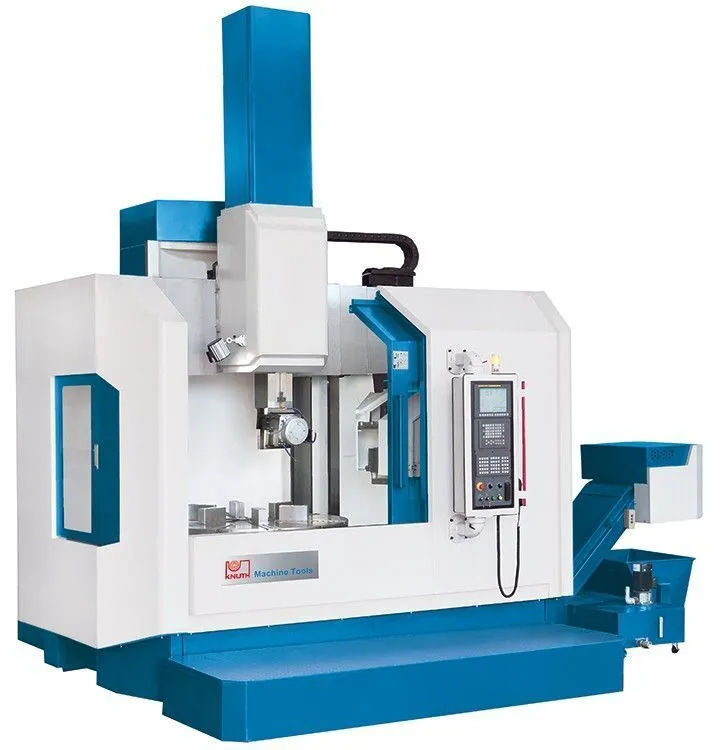

Knuth Verturn VDM 1600 CNC with removal of housing, chip conveyor
Vertical CNC Lathe
Efficiency and precision for high quality, power, and reliability.
• Heat-treated machine bed made of premium HT250 cast-iron.
• Large, induction-hardened and precision-ground rectangular guides with.
synthetic coating ensure optimum sliding and damping properties.
• High-precision preloaded ball screws from renowned manufacturers on all axes.
• Hydraulic clamping of cross traverse.
• Easy access to the 4-jaw face chuck allows easy clamping of heavy and
complex workpieces.
• Includes the proven Siemens 828 D SL.
• 4-step precision gears and infinitely variable 60 Hp main motor -
for high torque (up to 23,600 ft/lbs.) across the entire speed range.
• The work area is easily accessible through a wide opening safety door.
• All guideways are lubricated reliably via a central lubrication system.
• Chip conveyor with chip carriage and automatic 4-station tool changes
complete this extensive standard equipment.
Knuth has been building machine tool since 1923.
Control
The SINUMERIK 828D is perfect for the finishing of horizontal and vertical turning centers
with a machining channel and up to eight designed CNC measurement circuits. Out of the
rotating spindle, and the geometric axes (X - and Z-axis) other machine units can be operated:
CNC controlled turret - tailstock axis Driven (with travel to fixed stop) - tools and C-axis for
frontal and lateral surface machining - Y axis (orthogonal or oblique) - counter with
synchronous spindle function for the complete machining of workpieces
The SINUMERIK 828D is available a tailored for use in turning and milling CNC control.
CNC, PLC, operator interface and axis control for six CNC measurement circuits are
combined in one compact unit. The controller has extensive CNC functions, such as
support of the counter-spindle machining and a powerful tool management.
Especially for lathes, the SINUMERIK 828D offers extensive turning operations as
well as drilling and milling operations on the forehead and the lateral surface of
workpieces. The performance of the control and the new motion control allow you
to mirror-smooth surfaces with a minimum of processing time. Unnecessary
functionality has been dropped with the SINUMERIK 828D, which manifests itself
among other things in the GUI noticeable. Therefore, it is ideal for use in the workshop.
Also, operation, programming and maintenance are quickly mastered with minimal training.
Optimum user guidance through animated CNC input masks easy data exchange with
USB, CF, and Ethernet interface on the front panel, internal cellular modem for optimum
process monitoring via mobile phone
Standard Equipment
Siemens 828 D SL control, electronic hand-wheel, 4-jaw face chuck, automatic
4-station tool changer, coolant system, Automatic central lubrication, separate
control cabinet, control cabinet with heat-exchanger, signal lamp, chip tray, hydraulic
unit, oil cooler, workspace lighting, operating tools, operator manual
Specifications KnuthVerturn VDM 1600 CNC
Working Area
Turning diameter, vertical...................................63 in.
Machining height max.........................................47 in.
Travel X-axis................................................40 in.
Travel Z-axis................................................31 in.
Travel W-axis................................................33 in.
Work piece weight max........................................11,000 lbs.
Headstock
Speed range..................................................0.5 - 200 rpm
Torque max...................................................23,600 ft.lb.
Lathe chuck diameter.........................................55 in.
Feed
Rapid feed X-axis............................................236 in./min
Rapid feed Z-axis............................................236 in./min
Feed W-axis..................................................17 in./min
Tool Head
Number of tool stations......................................4 positions
Tool-change time tool/tool...................................10 seconds
Tool weight max..............................................55 lbs.
Accuracies
Positioning accuracy.........................................0.00118 in.
Repeatability................................................0.00059 in.
Drive Capacity
Motor rating main drive......................................60 Hp
Motor rating feed............................................3 Hp
Motor rating coolant pump....................................3/4 Hp
Measures and Weights
Overall dimensions...........................................R-L 207" X F-B 128"
Machine Height...............................................146"
Weight.......................................................29,000 lbs.
Full enclosure...............................................P.O.R.
Optional:
Packaging and handling.
Strong base, machine wrap and skeleton crate if
shipped by dry van. (not recommended for large machines)
Strong base and machine wrap if shipped by
preferred method of flatbed..................................$375.00
Installation verification and machine
operation training (1-day on site)
includes KNUTH technician's labor
from 8am - 5pm (Monday - Friday),
transportation, local travel, meals and lodging..............$10,000.00
Warranty: Standard (12) months new machine warranty,
one shift operation (2,000 hours.).
Machines below $30,000, covers parts only.
Machines above $30,000, covers parts and labor.
Machines above $60,000, covers parts, labor,
and domestic travel, except for special offers.
The customer is responsible for any freight and
all other associated costs not covered by warranty.
Warranty commences upon delivery of machine.
Consumables and operator misuse are excluded.
Any damage to machine as a result from incorrect
setup, misuse, negligence, poor maintenance, or
other circumstances beyond our control \ is not covered under warranty.
Technical Phone & E-mail Support - free for as long as you own the machine.
