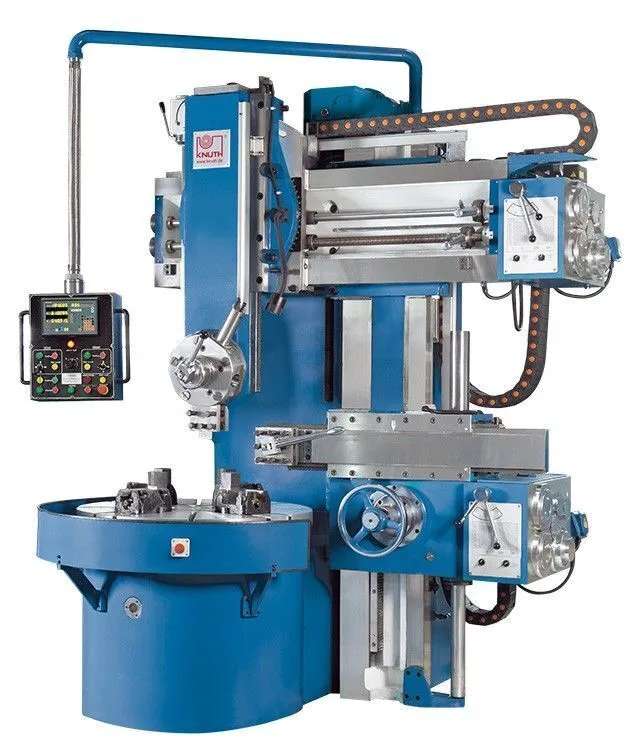

Knuth VCM 1600 S Vertical Lathe
The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor, and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining, and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.
Knuth has been building machine tool since 1923.
Manual, solid and proven technology with inverter controlled main drive.
Ideal for rework of heavy-duty work pieces
Infinitely variable feed control via servomotor
Optimum tooling and easy access for cranes and forklift trucks
Heavy-duty column with wide, hardened guideways
Hydraulic clamping of cross traverse
Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
Spindle runs in a high-precision two-row roller bearing and is adjustable
Reduction 4-Speed gear drive ensures high torque and a speed range of 5 - 160 rpm,
infinitely variable in each gear.
Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
TECHNICAL DATA
Headstock
Speed range 4 ranges.............................5 - 160 rpm
Headstock torque.................................18,400 ft.lb.
Rotary table diameter............................55 in.
Working Area
Rotating diameter max............................63 in.
Turning diameter of upper tool holder............63 in.
Turning diameter of side tool holder.............55 in.
Machining height max.............................39 in.
Travel X1 axis, upper support....................36 in.
Travel Z1 axis, upper support....................31 in.
Travel W-axis, traverse..........................26 in.
Travel X2 axis, side support.....................25 in.
Travel Z2 axis, side support.....................35 in.
Swivel range of upper tool holder................± 30 °
Workpiece length height..........................39 in.
Work piece weight max............................11,000 lbs.
Rapid feed
Rapid feed of upper support......................71 in./min
Rapid feed of side support.......................71 in./min
Feed
Feed speed X-axis................................0 - 3 in./min
Feed speed Z-axis................................0 - 3 in./min
Feed speed W-axis................................17 in./min
Tool Head
Tool holder......................................1.2 x 1.6 in.
Tool weight max..................................110 lbs.
Drive Capacity
Motor rating main drive..........................29.5 Hp
Motor rating X-axis..............................1,3/1,8 kW / 2/2.4 Hp
Motor rating Z-axis..............................1,3/1,8 kW / 2 /2.4 Hp
Measures and Weights
Overall dimensions...............................R-L 111" x F-B 105"
Height...........................................111"
Weight...........................................27,500 lbs.
STANDARD EQUIPMENT
3-axis position indicator, tool holder vertical, tool holder horizontal,
Automatic central lubrication, work lamp, anchor bolts, and operating tools
Note: *Requires professional installation by KNUTH Technicians, machine
final assembly is done on-site at customer facility. Price quoted separately
due to variable costs based on installation location and assistance/equipment
available during installation. Please ask your sales representative for more
information.
Full enclosure..................................P.O.R.
Optional:
Packaging and handling.
Strong base, machine wrap and skeleton crate if
shipped by dry van. (not recommended for large machines)
Strong base and machine wrap if shipped by
preferred method of flatbed.....$375.00
Installation verification and machine
operation training (1-day on site)
includes KNUTH technician's labor
from 8am - 5pm (Monday - Friday),
transportation, local travel, meals and lodging............$10,000.00
Warranty: Standard (12) months new machine warranty,
one shift operation (2,000 hrs).
Machines below $30,000, covers parts only.
Machines above $30,000, covers parts and labor.
Machines above $60,000, covers parts, labor,
and domestic travel, except for special offers.
The customer is responsible for any freight and
all other associated costs not covered by warranty.
Warranty commences upon delivery of machine.
Consumables and operator misuse are excluded.
Any damage to machine as a result from incorrect
setup, misuse, negligence, poor maintenance, or
other circumstances beyond our control \
is not covered under warranty.
Technical Phone & E-mail Support - free for as long as you own the machine.
Shipping charges: Arranged by KNUTH,
CIF Destination. LTL or Flatbed
shipment insured for full value.
Please inspect shipment for damage
upon receipt and notify us immediately
if damaged is noted or suspected.
If shipment is accepted, BOL must be
marked “Damaged” and should note
the details and extent of damage.
Additionally, photos must be taken
immediately to document the damage.
Information should be submitted to
KNUTH for claim to be filed. KNUTH
will either refund, repair, or replace
the equipment once proper evidence of
damage is received.....................................$6,325.00
