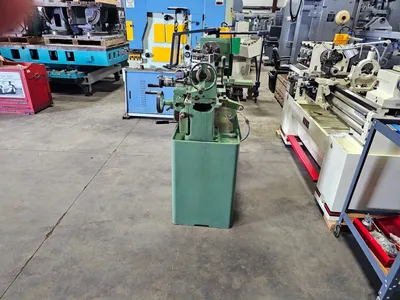

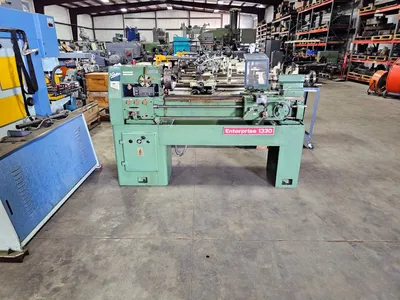

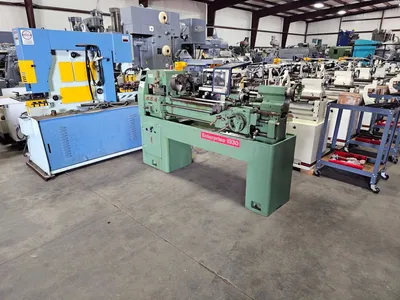

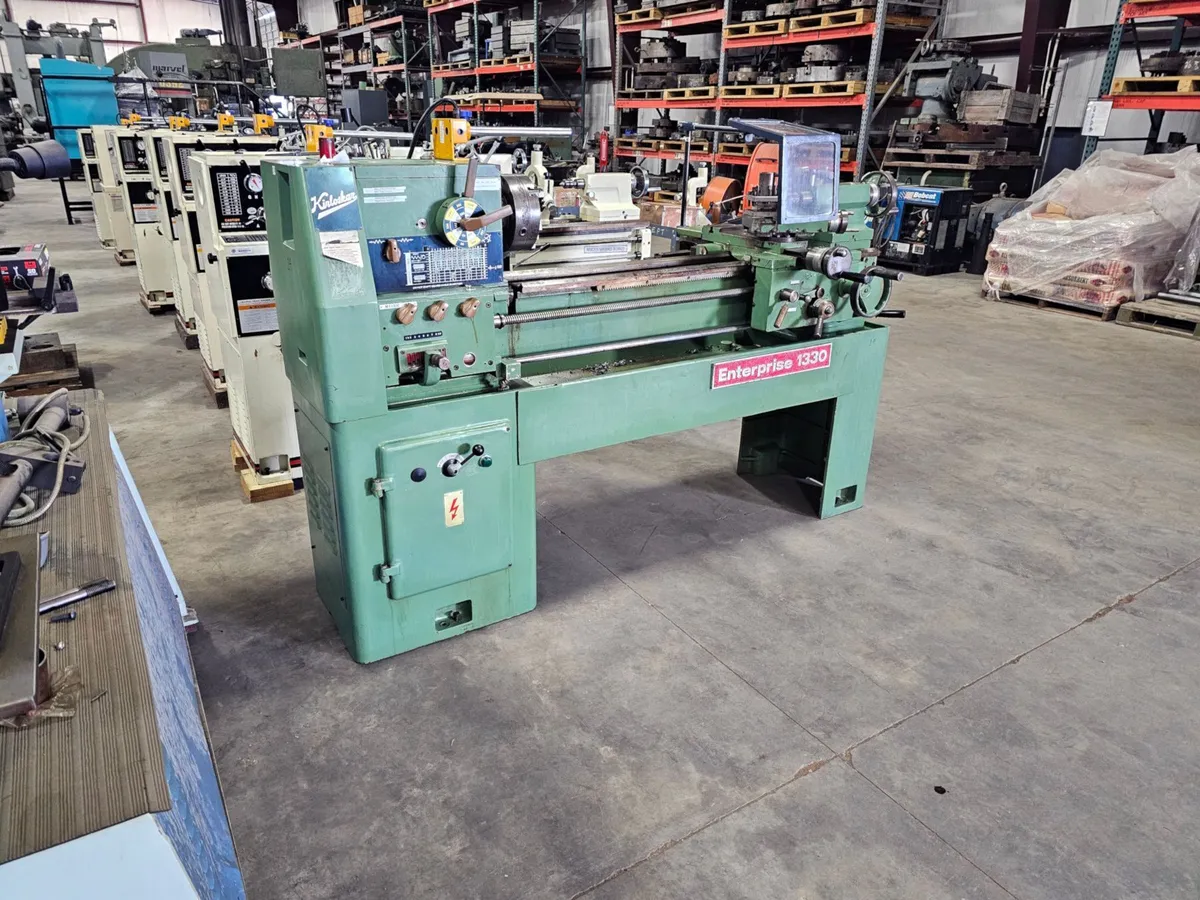

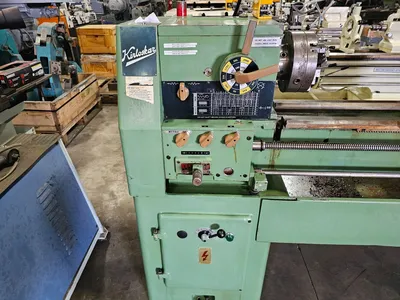

Enterprise Engine Lathe Model 1330 Gear Head

Swing Over Ways....................................13"
Swing Over Cross Slide.............................6"
Distance Between Centers...........................30"
Width of Bed.......................................7.086"
Spindle Bore.......................................1.5"
Spindle Mount......................................D1-4
Spindle Taper W/ Sleeve............................MT-5 (MT-3)
Chuck Size.........................................3-Jaw
Chuck Size.........................................4-Jaw
Number of Spindle Speeds...........................12
Range of Spindle Speeds............................90 - 1,500 Rpm's
Number of Longitudinal and Cross Feed Rates........40
Range of Longitudinal Feeds........................0.0012-0.0294 IPR
Range of Cross Feeds...............................0.00048-0.0118 IPR
Number of Inch Threads.............................40
Range of Inch Threads..............................4 - 112 TPI
Number of Metric Threads...........................22
Range of Metric Threads............................0.4 - 7.5
Max Tool Size......................................5/8" x 5/8"
Compound Slide Travel..............................3.9"
Cross Slide Travel.................................6.9"
Carriage Travel....................................37-1/2"
Tailstock Spindle Travel...........................4-3/4"
Taper in Tailstock Spindle.........................MT-4"
Steady Rest Capacity...............................3-3/4"
Follow Rest Capacity...............................2-3/4"
Main Motor.........................................3 Hp 220 Volts Single Phase
Floor Space........................................R-L 76" X F-B 30"
Machine Height.....................................61"
Machine Weight.....................................1,638 Lbs.
Equipped With:
Coolant Pump And Pan...............................Yes

Note: Machine is coming out of a college machine shop program.
