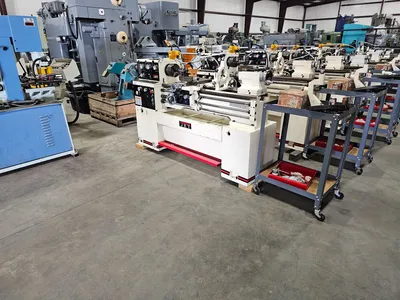

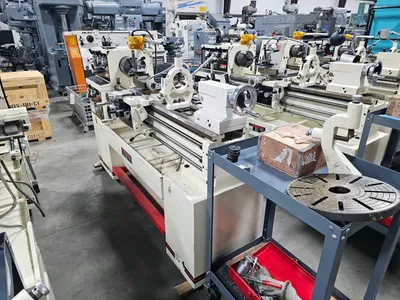

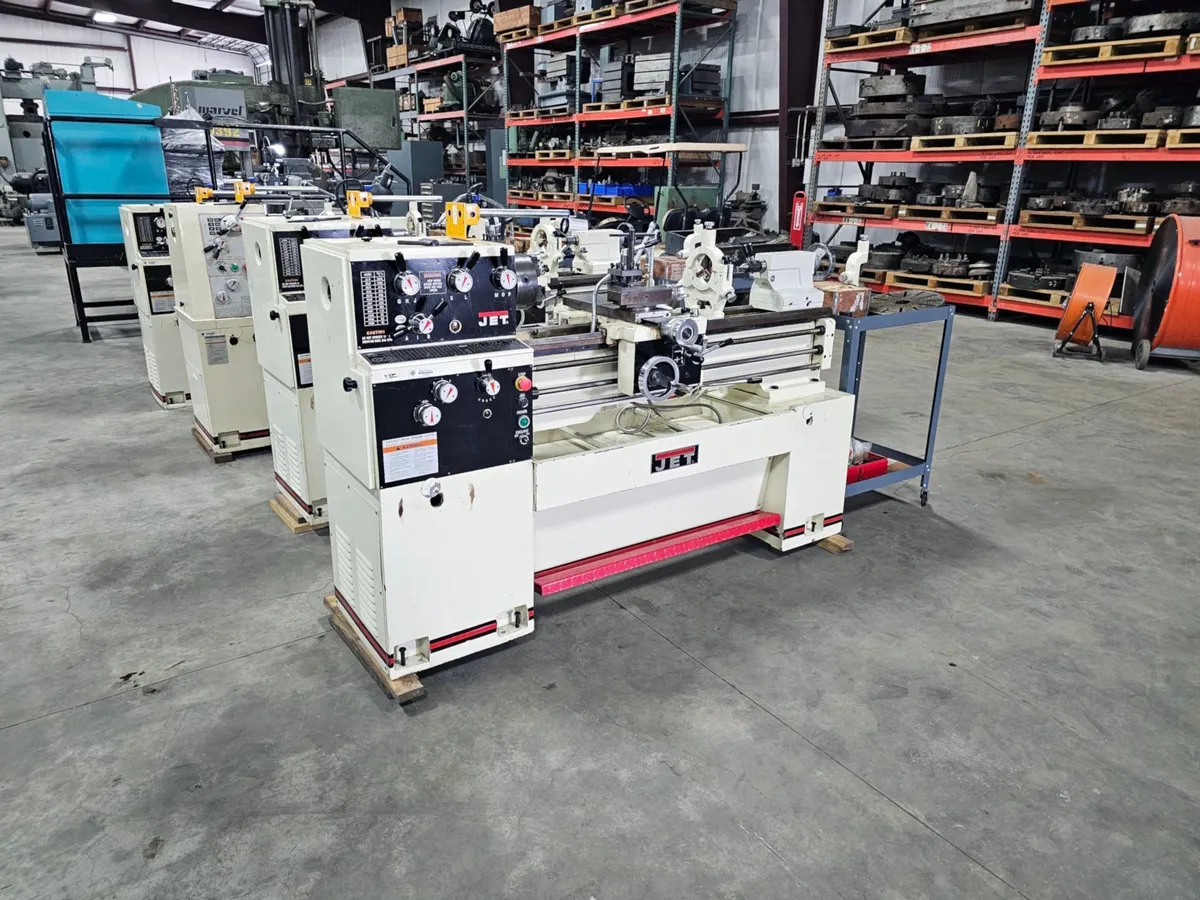

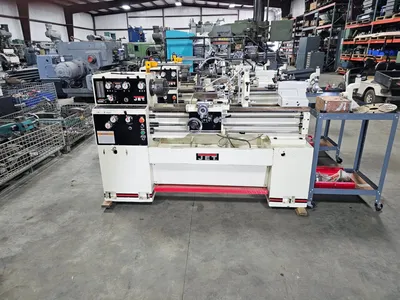

Jet Model GH-1340W-1

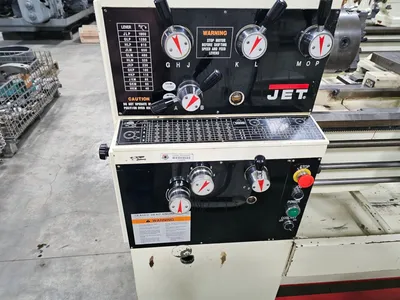

This uniquely designed JET® engine lathe delivers precision metal parts in less time, thanks to its geared head. Gear box provides large threading and feed capabilities without gear changes. Hardened and ground gears are featured in the headstock and gearbox. D1-4 spindle is supported by high-quality tapered roller bearings. Headstock is constantly oiled during operation. V-way bed design is induction hardened and ground.
Swing Over Ways....................................13"
Swing Over Cross Slide.............................7.5"
Swing In Gap.......................................19"
Length Of Gap......................................9.375"
Distance Between Centers...........................40"
Width of Bed.......................................10-1/2"
Spindle Bore.......................................1-1/2
Spindle Mount......................................D1-4
Spindle Taper W/ Sleeve............................MT-5 (MT-3)
Chuck Size.........................................3-Jaw
Chuck Size.........................................4-Jaw
Number of Spindle Speeds...........................12
Range of Spindle Speeds............................40 - 1,800 Rpm's
Number of Longitudinal and Cross Feed Rates........40
Range of Longitudinal Feeds........................0.0012 - 0.0294 IPR
Range of Cross Feeds...............................0.0003 - 0.0103 IPR
Number of Inch Threads.............................40
Range of Inch Threads..............................4 - 112 TPI
Number of Metric Threads...........................22
Range of Metric Threads............................0.45 - 7.5
Max Tool Size......................................5/8" x 5/8"
Compound Slide Travel..............................3-1/2"
Cross Slide Travel.................................6-3/8"
Carriage Travel....................................37-1/2"
Tailstock Spindle Travel...........................4-3/4"
Taper in Tailstock Spindle.........................MT-3"
Steady Rest Capacity...............................3-3/4"
Follow Rest Capacity...............................2-3/4"
Main Motor.........................................3 Hp 220 Volts Single Phase
Floor Space........................................R-L 74" X F-B 30"
Machine Height.....................................48"
Machine Weight.....................................2,275 Lbs.
Equipped With:
Coolant Pump And Pan...............................Yes
Note: Machine is coming out of a college machine shop program.
