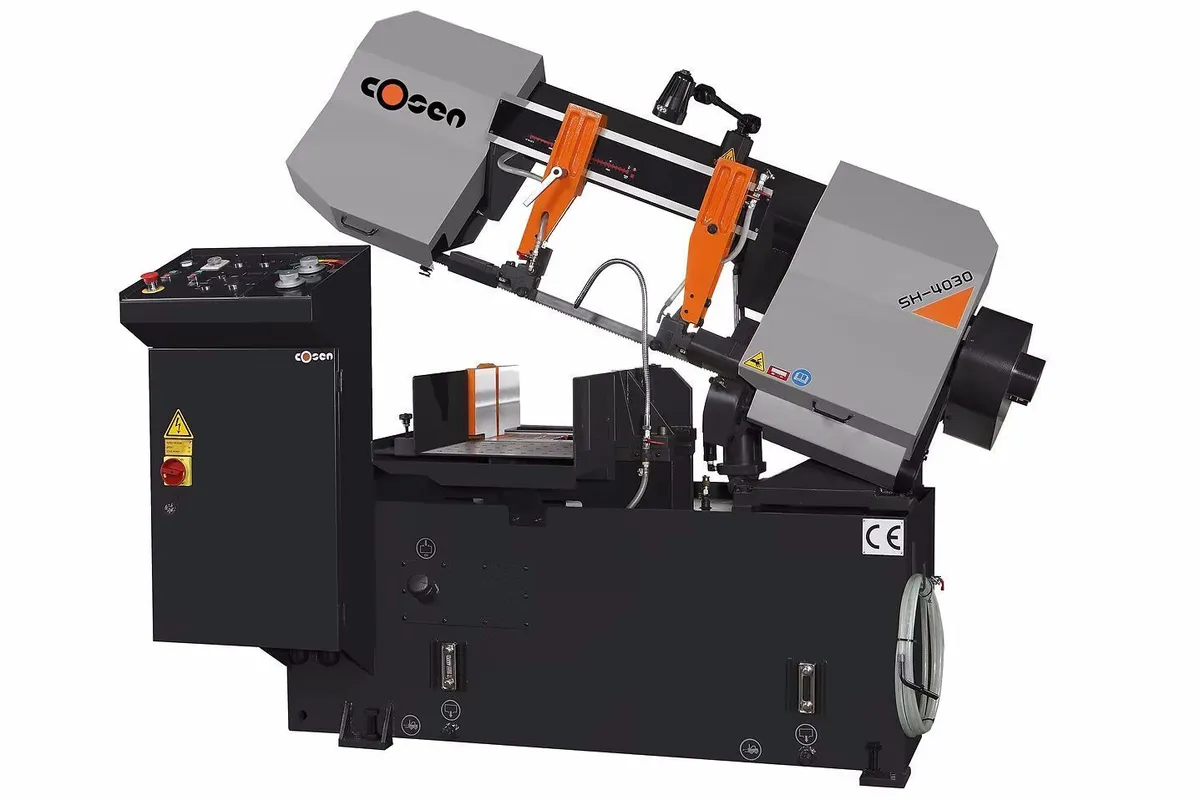

Cosen Model SH-4030 Semi-Automatic Horizontal Scissor Style Band Saw

Machine Specifications:
Maximum Cutting Capacity Round........................11.8”
Square................................................11.8” x 11.8”
Rectangular@ 90 Degrees...............................11.8” x 15.7”
Work Bed Height.......................................29.1”
Blade Speed...........................................69 To 298 FPMFPM
Blade Size............................................R-L 12'6"x F-B 42"
Machine Weight........................................53"
Motor Saw Blade.......................................5 Hp.
Coolant...............................................1/8 Hp.
Hydraulic.............................................1/4 Hp.
Voltage...............................................230 V, 3 Phase 60
Floor Space...........................................R-L 78” x F-B 43”
Height................................................53”
Weight................................................2,259 LBS.
Control System:
The operator’s control panel located on the left side of the saw is
convenient and user friendly.
All operator controls are clearly labeled for ease of operation.
The electrical components are located inside the control box with
the main lockout disconnect is on the front of the control box
for safety and easy maintenance.

Machine Features:
Hydraulic cylinder plus precision ground hinge support
Gearbox designed to accept high lateral pressure (no thermal distortion)
Five step variable speed drive
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Precision cutting feed rate valve system for optimal performance
Saw head automatically raises after each cut
Variable Step less Pully

Included Accessories
Blade “clip” device eases blade changing, when necessary, by holding
the blade on the band wheel during installation, making it very easy
for one person to change the blade.
Additional flushing hose for cleaning.
Bi-metal saw blade.
Toolbox with tools, leveling pads, and an additional wire brush
Operation & parts manual.

Optional Accessories: ...................................Price
Top Clamp for Bundle Cutting (Part# AHC-1900B) ..........$1,995.00
Variable Vise Pressure Control System (AHA-10400KIT1) ...$1,395.00
Heavy-Duty Roller Table 5’ long (Part#GRCW-25-5)
Capacity- 4,200 lbs......................................$3,195.00
Heavy-Duty Roller Table 10’ long (Part# GRCW-25-10)
Capacity-7,700 lbs.......................................$4,895.00
6’ 6" Heavy-Duty Table w/ Vertical Alignment Rollers
(Part# 05RC-4470-2M) Capacity- 5,500 lbs.................$3,995.00
Buck Boost Transformer for incoming power of 208V or
below....................................................$1,995.00
Voltage Change to 460V 3 PH..............................TBD

*Pricing on optional accessories valid only when purchased with machine.
Pricing may differ when purchased individually without machine to be determined.
