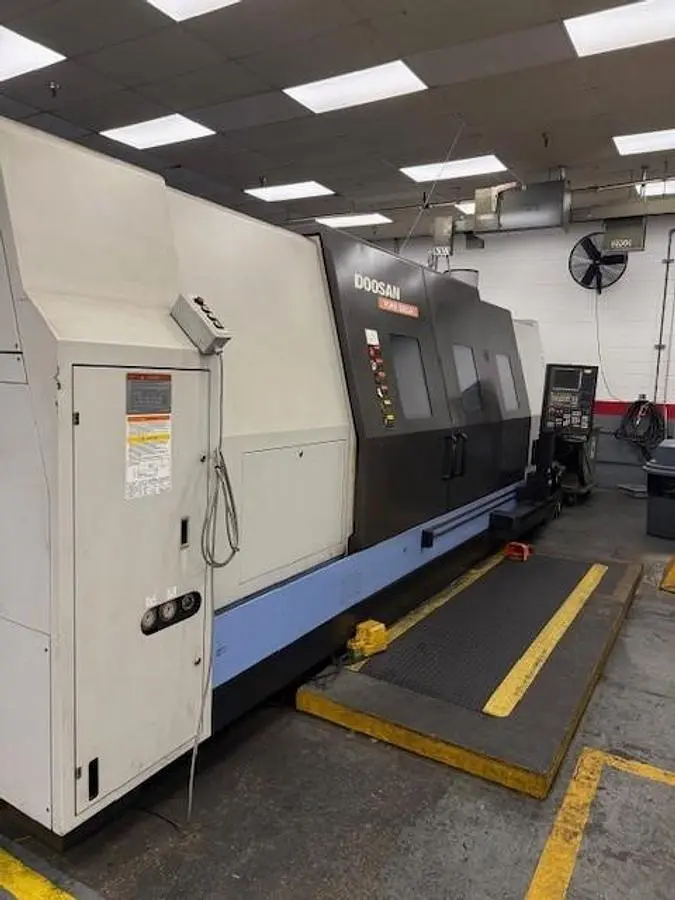

Doosan Puma Model 800 LM With Milling
Have one to sell?
ConditionUsed
1 available
The PUMA Series is DN Solutions (formerly Doosan Machine Tools) high performance lathe series. Designed for heavy and intermittent cutting, accurate production, and premium surface finishes, this series has a wide variety of models with chuck sizes ranging from 8”-21”, turning lengths up to 120", and options for sub-spindles, y-axis, and milling capabilities. This Series has a box guideway structure which prevents vibration and gives it secure dynamic rigidity. It has the highest spindle speed in its class and also delivers powerful cutting capabilities.
Model.............................................Puma 800LM
Swing.............................................45"
Max Turning Diameter..............................35.4"
Max Turning Length................................126"
Spindle Bore......................................12.6"

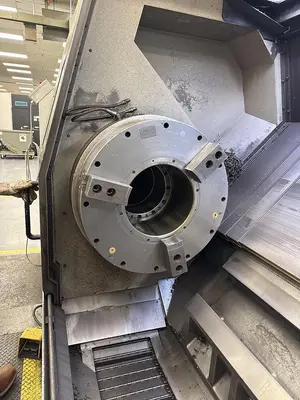

Chuck Size Air....................................32"
Chuck Hole Size...................................14.92"
Main Spindle Speed................................750 rpm
Spindle Speed Rotary Tools........................3,000 rpm
Travel Distance X-axis............................18.5"
Travel Distance Z-axis............................127.4"
Rapid Traverse X-axis.............................472 in/min
Rapid Traverse Z-axis.............................394 in/min
Turret Capacity Turning and Boring................12 Tools
Boring Bar Diameter...............................3
Turret Capacity...................................12 Position, VDI
Machine Floor Space...............................R-L 290" X F-B 109"
Machine Height....................................102"
Machine Weight....................................48,060 Lbs.
Main Sindle Motor.................................60 hp
Equipped With:
Coolant System....................................Yes
Chip Conveyor.....................................Yes
