30" X 120" G New Webb Engine Lathe High Speed Precision Gap Bed Lathe
Have one to sell?
ConditionNew
New

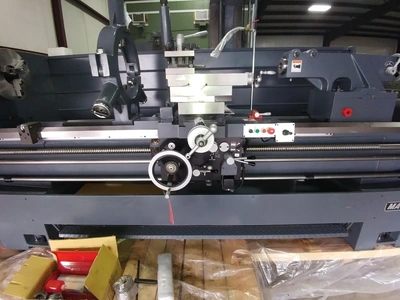

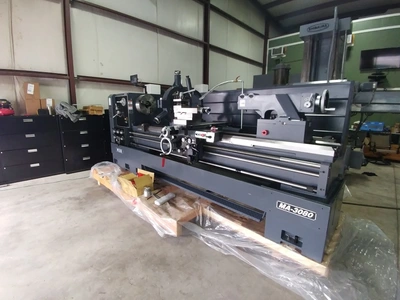

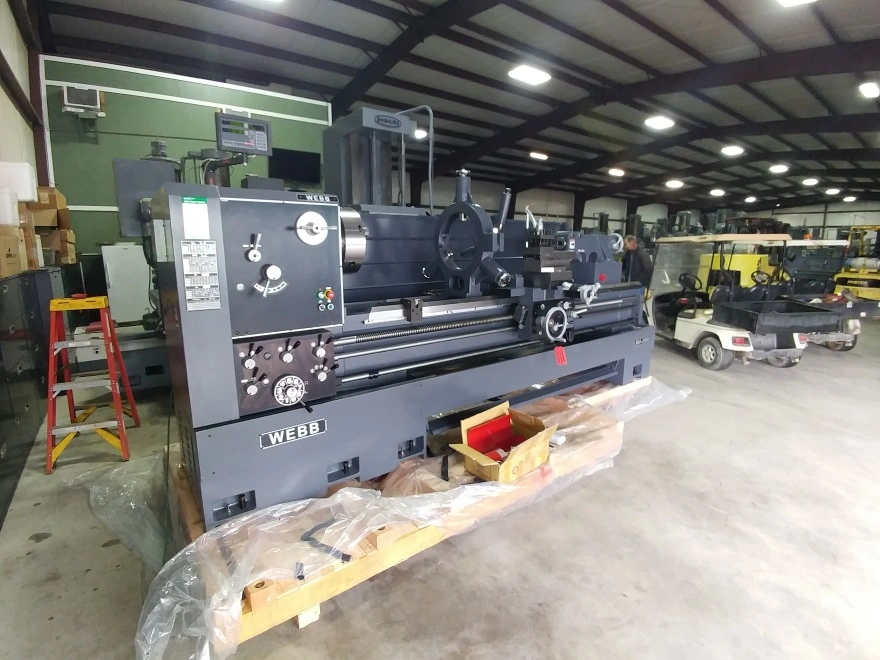

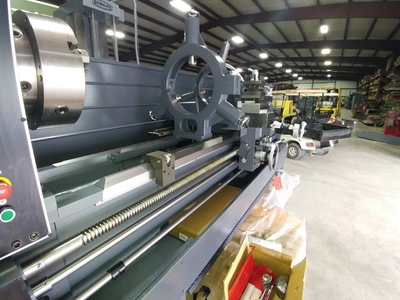

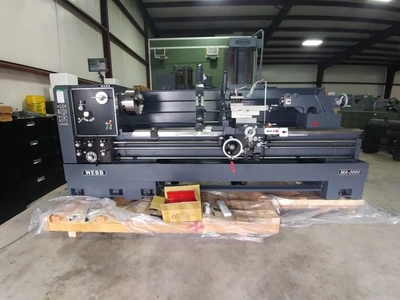

30" X 120" New Webb Engine Lathe
Features:
WEBB MA 30 X 120G HIGH SPEED PRECISION GAP BED LATHE
6-1/8" SPINDLE BORE
A2-11 MOUNT,

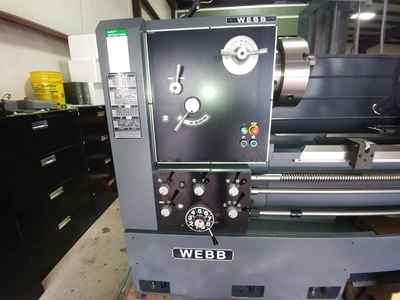

18 SPEED HEAD STOCK,
RAPID TRAVERSE ON APRON,
MEEHANITE CASTING, TURCITE COATED SLIDE WAYS
ROLLER STEADY REST,
INCH / METRIC DIALS AND THREADING
AUTO LUBE SYSTEM IN APRON
COOLANT SYSTEM
SQUARE TOOL POST,
20 H.P. MAIN MOTOR, 220/440 VOLTS ELECTRICS
EXCLUSIVE IMPORTER FROM OUR LATHE MFG SINCE 1985. 7,500 SOLD IN USA.
HIGHEST QUALITY MACHINE TOOLS SOLD IN THE USA.
30" X 120" New Webb Engine Lathe
Swing Over Bed Ways.....................................30"
Swing Over Cross Slide..................................19.6"
Swing In Gap............................................38.5"
Width Of Bed............................................17.7"
Cross Slide Travel......................................17.7
Compound Travel.........................................9.8"
Center Distance.........................................120"
Spindle Hole............................................4"
Spindle Speeds..........................................23 To 1,293 Rpm's
Spindle Nose............................................D1-11
Feeds Cross.............................................0.025 To 0.35 MM IPR
Feeds Long..............................................0.05 To 0.70 MM IPR
Threads Inch............................................2 To 28 T.P.I.
Threads Metric..........................................0.8 To 14 MM
D.P.....................................................4 To 56 T.P.I.
Module..................................................0.5 To 7 M
Lead Screw Diameter And Threads.........................2 TPI
Tail Stock Quill Diameter...............................4.1"
Tail Stock Quill Travel.................................8.6"
Tail Stock Taper........................................# 5 Morse
Coolant Pump Motor......................................1/8 Hp.
Main Motor .............................................15 Hp.
Machine Length .........................................144"
Machine Width ..........................................72"
Machine Height..........................................72"
Machine Weight..........................................7,386 Lbs.
Rapid Traverse Long.....................................118" / 59" Min.
Machine Options:
All prices and specifications are subject to change without notice:
MA 30” Series Upgrade to 20 HP..........................$2,590.00
MA 30” Inverter Head with CSS and PLC for 15 HP........ $8,970.00
MA 30” Inverter Head with CSS and PLC for 20 HP.........$10,970.00
MA 30” Series Double Chuck System Rear Adaptor Plate....$2,890.00
MA 30” Series Steady Rest Roller type...................$2,990.00
Follow Rest.............................................$1,390.00
Micrometer Carriage Stop................................$490.00
5 Position Micrometer Carriage Stop.....................$590.00
Halogen Work Light......................................$239.00
Taper Attachment........................................$2,990.00
Installation of taper attachment........................$750.00
Full Length Splash Guard 120” Centers Machine...........$1,095.00
Chucks:
A2-11 Rear Spindle Adaptor..............................$2,690.00
Chuck Size 15" 3-Jaw A-2-11 Cam Lock Mount..............$2,790.00
Chuck Size 20" 4-Jaw A-2-11 Cam Lock Mount..............$3,490.00
Gator Chucks:
Gator Chuck Size 16" 3-Jaw with 2-piece jaws...........P.O.R.
A2-11 Gator Chuck Size 20" 4-Jaw With 2 Piece Top
Jaws Semi-Steel Heavy-Duty.............................$8,350.00
Tooling:
Aloris Type DA Tool Post Type with 3 Turning Holders 1-1/4"
2 Boring 1.5" Capacity..................................$4,255.00
Voltage:
Rewire to 440V..........................................$1,000.00
Digital Read Outs – Acu-Rite and Newall
Newall 2 Axis Digital readout System ...................$8,484.00
All prices and specifications are subject to change without notice:
Delivery is about 75 days after the receipt of purchase order and 20% down payment.
WEBB 30 and 33 Swing MASSIVE CUT Engine Lathes
WEBB Lathes are 100% Taiwan Built Machines with an Unmatched Reputation for Long Service.
We maintain a Complete Inventory of Parts. Friendly Staff for Over 40 Years!
Each Machine Includes the Following Standard Features
Heavy Duty Certified Meehanite Castings, Removable Gap Bed, Turcite Coated Female
Surface’s, Inch /Metric Dials, Automatic Forced Lubrication, Tail Stock, A2-11 Spindle, 6” Spindle
Bore, 20 HP, Inch Metric Threading, Flood Coolant, Longitudinal Adjustable Stop, Center Sleeve, 2 Dead Centers, Touch Up Paint, Adjustment Tools, Operators and Parts Manuals.
NOW Optionally Available with Inverter Head and Constant Surface Speed Via PLC
