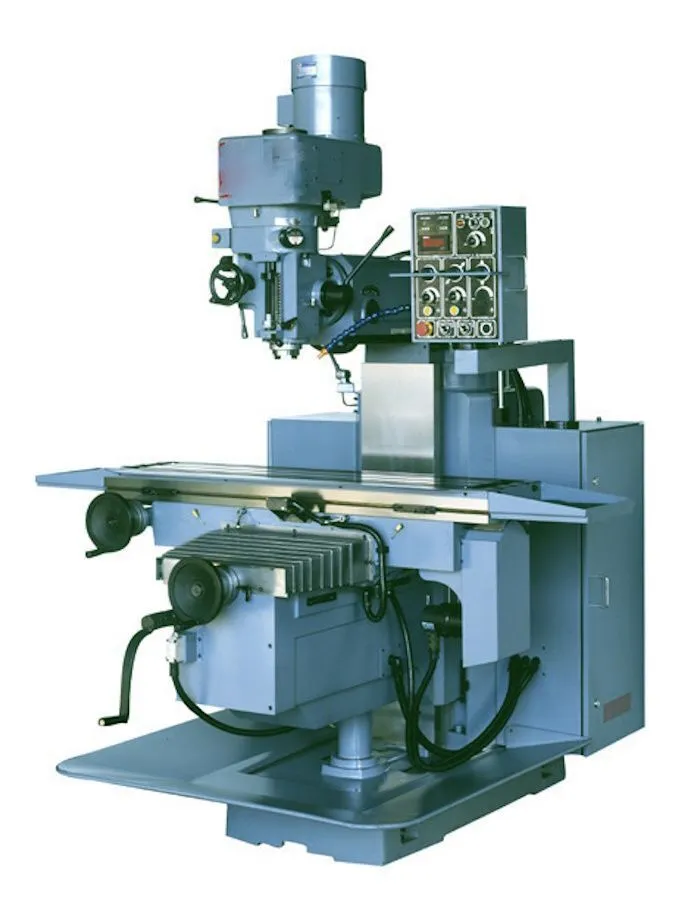

Used 13"X59" Webb CNC Knee Type Milling Machine Model Champ 5A-EVS-XL

Table Size..................................................13" X 59"
Knee Width..................................................14"
Table Weight Capacity.......................................1,500 Lbs.
T-Slots On Table............................................3
T-Slot Size.................................................5/8"
Spindle Taper...............................................40 NST
Spindle Speeds Low..........................................70 To 500 Rpm's
Spindle Speeds Variable High................................60 To 3,800 Rpm's
Spindle Feeds...............................................0.0015,.003 And .0047 I.P.R.
Spindle Quill Travel........................................4-3/8"
Spindle Swivel..............................................+/- 90 Degrees
Spindle To Table Min. / Max.................................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.....................4" To 25-5/8"
Saddle Travel In & Out Y axis...............................18"
Table Travel Longitudinal X Axis............................40"
Knee Travel Z Axis..........................................20"
Table Feeds Variable........................................0 To .250 I.P R.
Ram Travel In And Out.......................................24"
Over Arm Swivel.............................................60 Degrees
Main Motor..................................................5.5 Mitsubishi
Inverter Drive With Dynamic Braking
Wired.......................................................220 Volts 3 Phase
Floor Space Right To Left...................................102"
Floor Space Front To Back...................................84"
Height......................................................84"
Weight......................................................6,600 Lbs.
Ball Screws On The X & Y Axis...............................Yes
Heavy Duty DC Drive Motors With Controls
On Up Feed Rates & Rapids...................................Yes
Coolant System With Chip Pan................................Yes
Steel Way Cover Front.......................................Yes

Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description................................Price
Webb-1036
Maxi Torque Power Draw Bar System for 40 NST Taper..........$1,250.00
Install Air Draw Bar .......................................$225.00
Riser:
WEBB-2004....4” Riser Block with Hardware...................$690.00
WEBB-2006 ...6” Riser Block with Hardware...................$730.00
WEBB-2008 ...8” Riser Block with Hardware...................$790.00
WEBB-2010....10” Rise Block with Hardware...................$890.00
Installation................................................$225.00
Tooling:
WEBB-1111
11 Piece Collet Set, 1/8 to ¾ by 16ths Pro Series...........$229.00
WEBB-1126
6” Precision Machinist Vise ................................$680.00
6” Precision Vise Economy...................................$570.00
WEBB.1152....52 Piece Work Hold Down Clamp Set..............$149.00
WEBB.1170-8 8 Inch Rotary Table / vert. and Horiz...........$1,195.00
WEBB.1170-10 10Inch Rotary Table / vert. and Horiz..........$1,390.00
WEBB.1170-12 12 Inch Rotary Table / vert. and Horiz.........$1,590.00
D.R.O. System:
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$850.00

Newall D.R.O. System Will Be Priced Separately.

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
