Used GIDDINGS & LEWIS VTC 1600 | Boring Mills, CNC Vertical Boring Mill

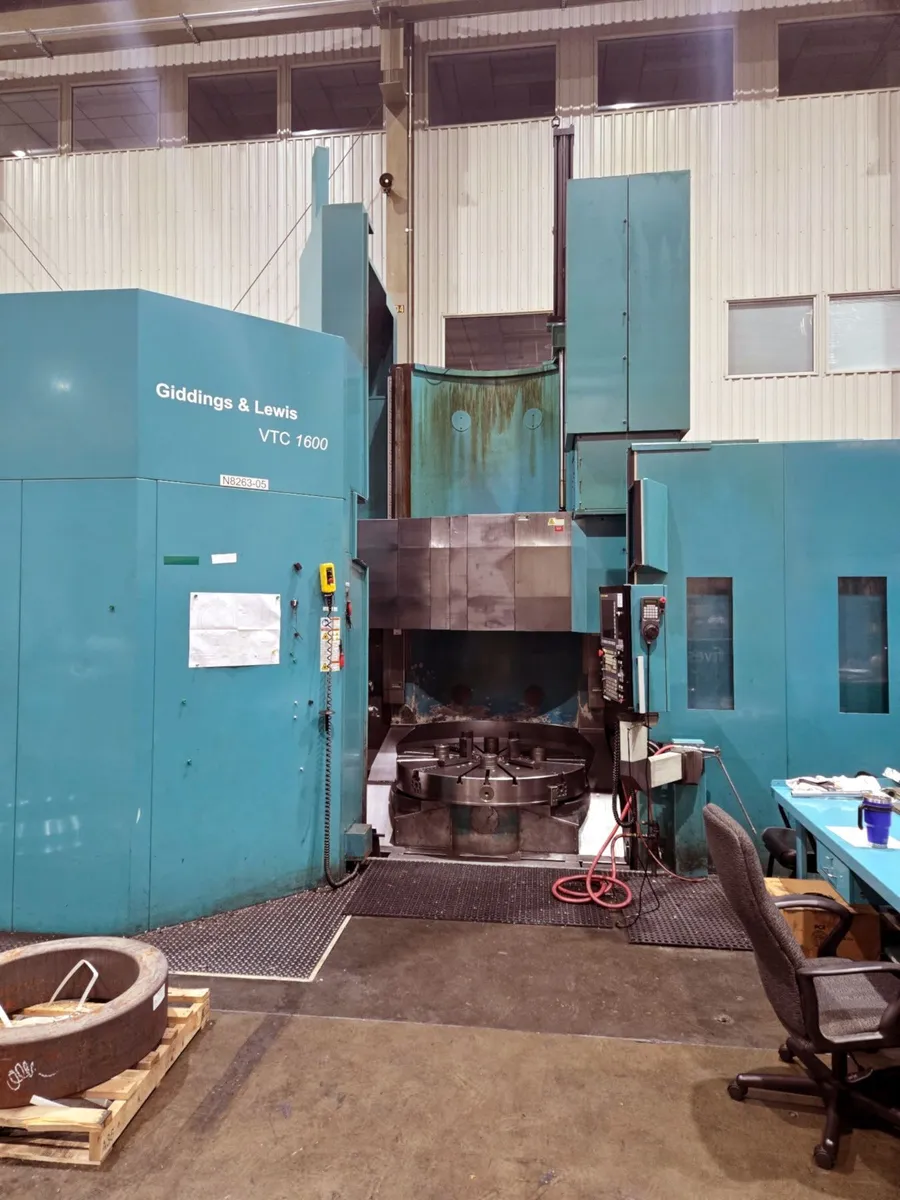

FIVES GIDDINGS AND LEWIS VTC 1600 VERTICAL TURNING CENTER

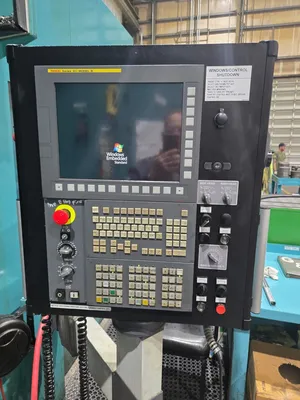

Control...................................................FANUC 30/31I-B
SPECIFICATIONS:
MAIN SPINDLE TURNING DIAMETER MAX.........................78.7"
MAIN SPINDLE TURNING LENGTH MAX...........................59.1"
MAIN SPINDLE CHUCK DIAMETER...............................63"
TABLE BASE
TABLE/CHUCK SPEED.........................................1-400 RPM
LOW RANGE.................................................1-110 RPM
HIGH RANGE................................................1-400 RPM
CONSTANT TORQUE...........................................18,130 FT/LB
TABLE LOAD CAPACITY.......................................33,000 LBS
X-AXIS TRAVEL.............................................47.6"
Z-AXIS TRAVEL.............................................68.9"
X-AXIS RAPID TRAVERSE.....................................787 IPM
Z-AXIS RAPID TRAVERSE.....................................787 IPM
RAM SIZE..................................................9.84" X 9.84"
FEED THRUST AVAILABLE, X-AXIS.............................7,600 LBS.
FEED THRUST AVAILABLE, Z-AXIS DOWN........................7,600 LBS.
FEED THRUST AVAILABLE, Z-AXIS UP..........................5,000 LBS.
Main Motor................................................100 Hp. 440 Volts
EQUIPPED WITH:
LEAF TYPE CHIP CONVEYOR
FULL MACHINE ENCLOSURE W/ OPEN TOP
