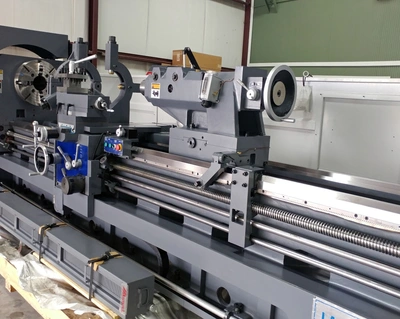

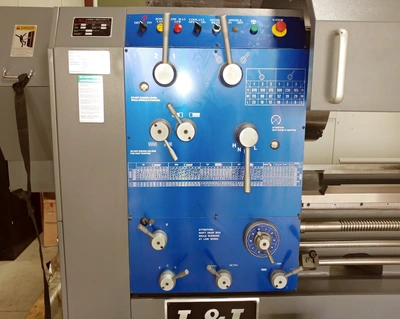

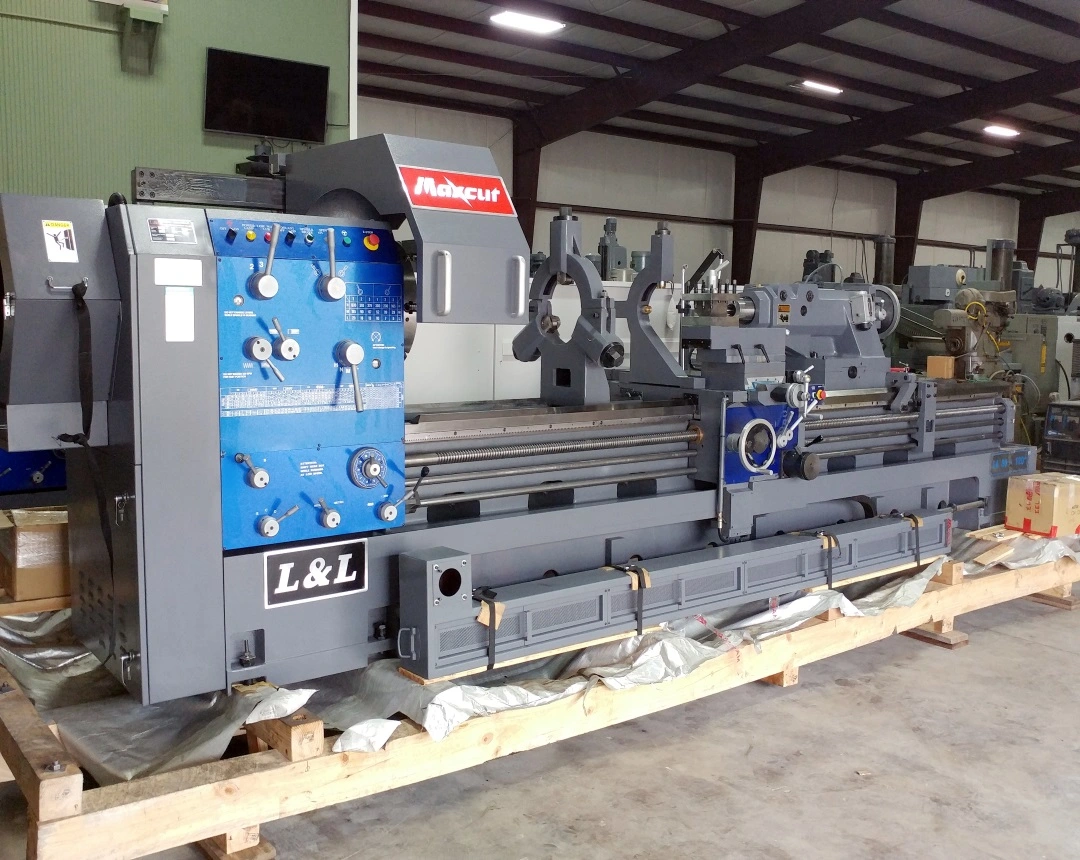

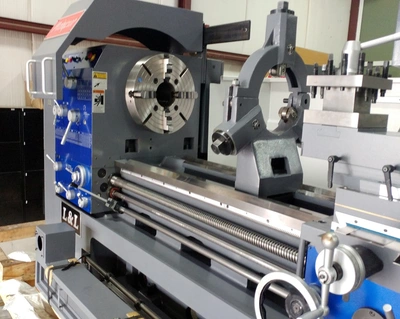

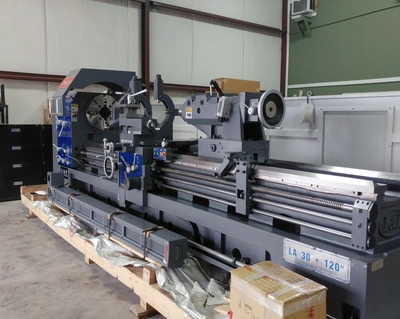

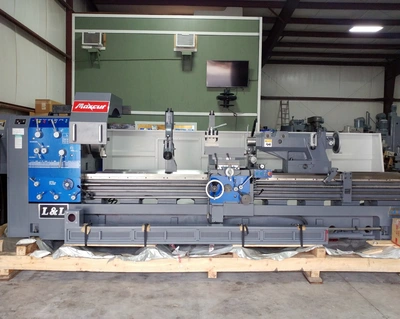

34" X 120" New Kent USA LA-34 Series Engine Lathe With 6"Spindle Bore

Swing Over Bed Ways.....................................34"
Swing Over Cross Slide..................................24.4"
Center Distance.........................................120"
Bed Way Width...........................................20"
Spindle Hole............................................6"
Spindle Taper...........................................# 5 Morse
Compound Rest Travel....................................11.8"
Spindle Speeds (18 Steps)...............................5 To 670 Rpm's
Spindle Nose............................................A-2-11
Feeds Cross.............................................0016 To .048 I.P.R.
Feeds Long..............................................0.0032 To .096 I.P.R.
Threads Inch (70).......................................0.25 - 30 T.P.I.
Threads Metric (62).....................................1-120 MM
D.P. (70)...............................................1-120 MM
Module (53).............................................0.025-30 T.P.I.
Rapid Traverse Z Axis...................................18.5 I.P.M.
Rapid Traverse X Axis...................................18.5 I.P.M.
Ball Screw Diameter Z Axis..............................0.984"
Ball Screw Diameter X Axis..............................1.968"
Tail Stock Quill Diameter ..............................4.9"
Tail Stock Quill Travel.................................5.9"
Tail Stock Taper........................................# 6 Morse
Main Motor..............................................20 Hp.
Coolant Pump Motor......................................1/8 Hp.
Machine Dimension.......................................197"Long. X 60" Wide
Height..................................................72"
Weight..................................................19,864 Lbs.
Steady Rest Roller Type.................................1.8" To 11.8"
Follow Rest.............................................1.18" To 9"
4- Way Rapid Traverse...................................Yes
Foot Brake..............................................Yes
Thread Dial.............................................Yes
Hardened And Ground Ways................................Yes

Specifications and pricing subject to change or improved without prior notice.

OPTIONS AND ACCESSORIES
Custom upgrade from 6” spindle bore to 9” spindle bore (A2-15)*...$18,975.00
Custom upgrade from 6” spindle bore to 12” spindle bore (A2-20)* .$41,195.00
DRO system 80” (2-axis, x=0.0001”/Z=0.0005” Res.)* ...............$5,860.00
DRO system 120” (2-axis, x=0.0001”/Z=0.0005” Res.) * .............$8,295.00
DRO system 160” (2-axis, x=0.0001”/Z=0.0005” Res.)*...............$9,625.00
DRO installation charge for up to 200” between center model ......$825.00
Aloris DA #5-SET (Tool Post and 6 holders)........................$3,320.00
Royal spindle type live center (M.T. #6)..........................$3,365.00
3-jaw chuck w/back plate (20” A2-11, 6” bore).....................$8,970.00
3-jaw chuck w/back plate (24” A2-15, 9” bore).....................$19,050.00
Precision 3-jaw chuck w/back plate (Zero-set, 15” A2-11)..........$8,960.00
4-jaw independent Chuck (24” A2-11, 6” bore)......................$9,100.00
4-jaw independent Chuck (30” A2-20, 12” bore).....................$14,865.00
Rear adaptor plate for rear mount chuck with 6” through hole......$9,500.00
Rear adaptor plate for rear mount chuck with 12” through hole.....$16,100.00
Steady rest (ø225-455mm)..........................................$9,200.00
Follow rest (ø30-230mm)...........................................$6,900.00
Roller support bracket (ø355-720mm)...............................$16,200.00
Face plate (20” A2-11 for 6” bore)................................$3,265.00
Taper turning attachment*.........................................$9,200.00
Micrometer carriage stop..........................................$2,300.00
Upgrade to 30 HP spindle motor....................................$4,600.00
Coolant (1 gallon, mixes 1:30)....................................$120.00

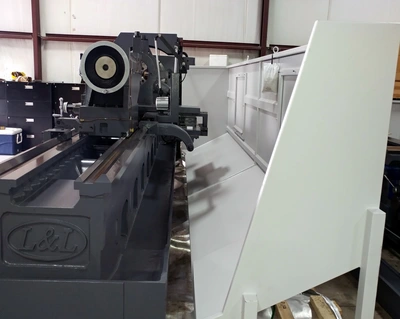

Full length mobile rear splash guard
(<120”; POR for 160” and 200” models) .............................$13,500.00

*Please note:
Installed options may require a deposit;
which is non-cancelable and non-refundable.

Note: Delivery is 120 to 145 days after receipt of purchase order and
down payment.
