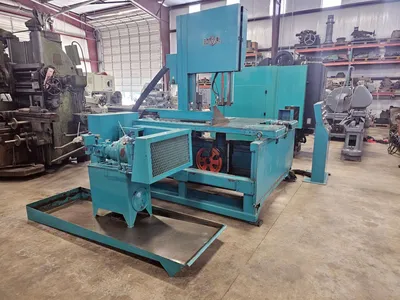

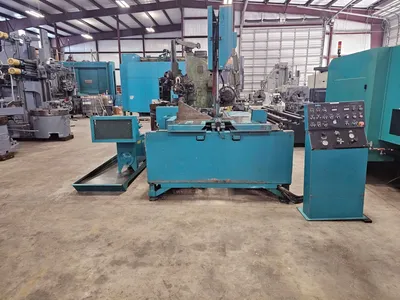

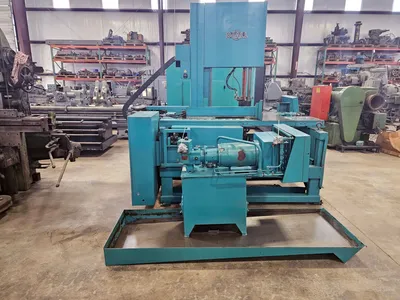

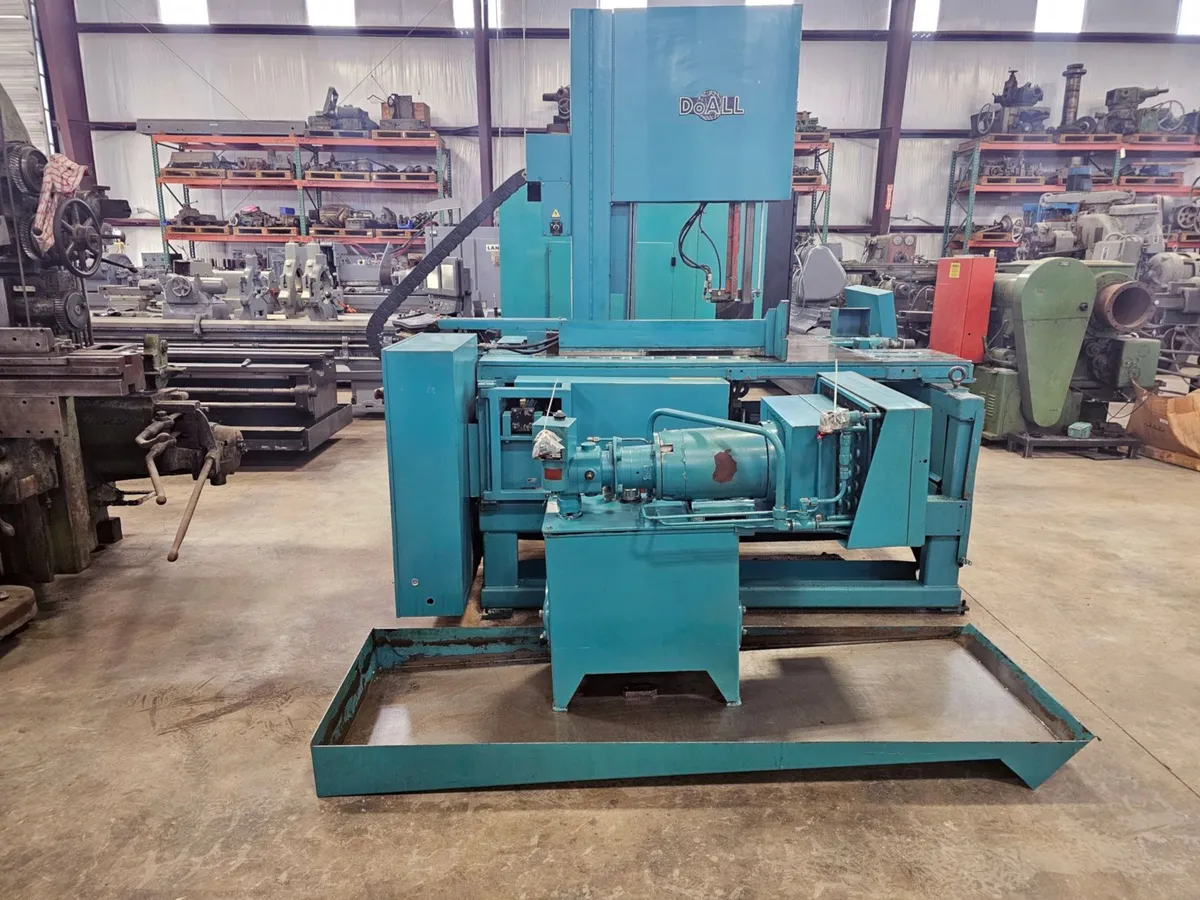

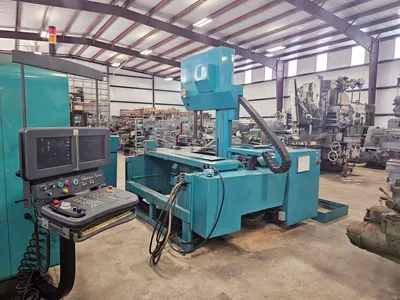

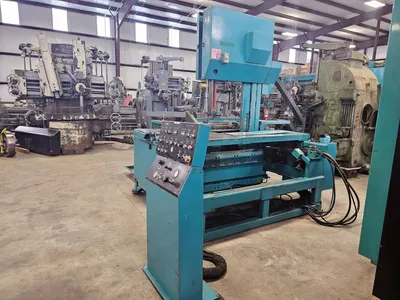

DOALL TF-2025M vertical saw, year November 2000. Used condition with a 20" throat, 1.25" blade width, and 209" blade length. Speed range: 50-400 FPM.
CATALOG SPECIFICATIONS:
Capacity, Rectangles.....................................20" x 25"
Capacity, Rectangles 45 Degree Blade Angle.............. 17" x 20"
Capacity, Rectangles 60 Degree Blade Angle.............. 11" x 20"
Capacity, Round Stock....................................20"
Capacity, Round at 45 Degrees............................17"
Capacity, Round at 60 Degrees............................11"
Table Size ..............................................30" x 33"
Table Height from Ground.................................43.75"
Table Load Capacity......................................1,000 LBS.
Blade Length.............................................209"
Blade Width..............................................1.25" x .042"
Blade Speeds, Infinitely Variable........................50 to 400 FPM
Motor Rating ............................................10 HP
Electrics ...............................................460/3/60 16 AMP.
Approximate Machine Dimensions (No Conveyors)............80" x 110"
Approximate Machine Height ..............................106"
Approximate Machine Weight...............................5,000 LBS
EQUIPPED WITH:

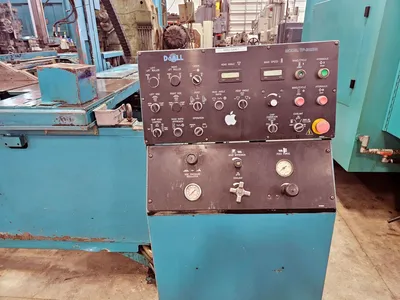

Operator Control Panel
Start & Stop Hydraulics
Blade Start
Blade Stop
E-Stop
Power Feed
Power Tilt (60 Degrees Left or Right)
Head Angle Indicator Display
Band Speed Indicator
Variable Blade Speeds and Feed Rate
Blade Guides,
Chip Pan
Hydraulic Unit 30 Gallon
Coolant System 30 Gallon
Note:
Machine Will be cleaned and cycled.
New Replacement Cost $70,000.
