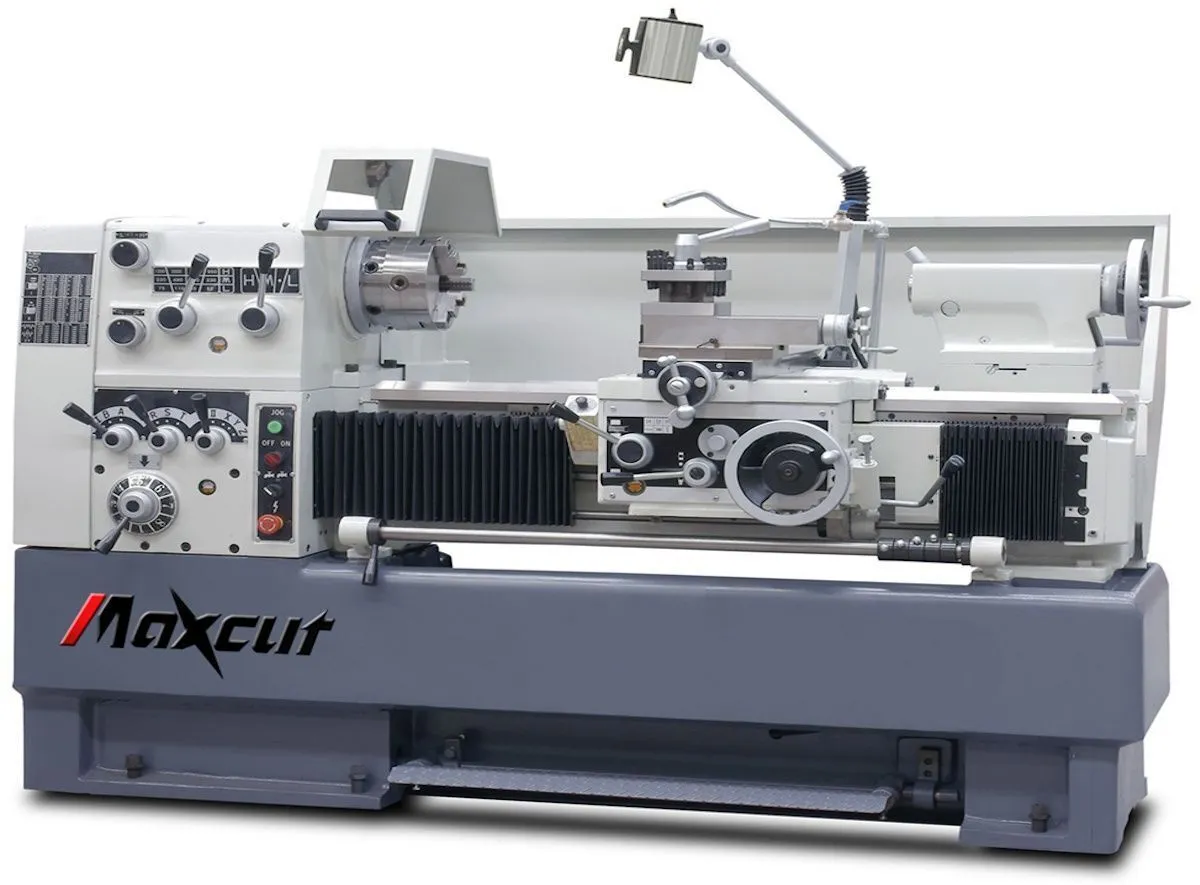

New Maxcut 21"X67" Engine Lathe Model LA 2167
Have one to sell?
ConditionNew
1 available
New
New Maxcut 21"X67" Engine Lathe Model LA 2167
FEATURES:
The design and features are based on highly reputable Japanese precision lathes.
Extra rigid one-piece Meehanite casting bed and heavily ribbed webbing to provide maximum stability for heavy duty cutting.
All slide ways are hardened and precision ground resulting in outstanding wear resistance after long periods of operation.
High quality precision ground and carburization treated gears enhance the durability and stability for heavy duty cutting.
Japanese NSK bearings and Taiwanese TECO motor for high reliability.
SPECIFICATIONS
Distance between center.......................1700mm (67”)
Width of bed..................................300mm (12”)
top slide travel..............................120mm (4-3/4”)
Swing over bed................................530mm (21”)
Swing over cross slide........................372mm (14-2/3”)
Swing in gap..................................620mm (24”)
Center height.................................270mm (10.630”)
Gap width in front of face plate..............200mm (8”)
Spindle bore..................................80mm (3”)
Spindle nose..................................A2-6
Spindle taper.................................MT#6 x #4
Spindle speed gear range 12 speeds............25 To 1,540
Lead screw diameter / pitch...................Ø35mm (Ø1-1/8”) / 4 TPI 6mm
Inch thread from..............................2 to 72 TPI / 44 sizes
Metric thread 6mm: from.......................0.2 to 14 / 39 sizes
Longitudinal feed from........................0.03 to 0.85mm (from 0.012” to 0.034”)
Cross feed....................................2/3 of longitudinal feed
Number of feeds...............................36
Tailstock quill diameter......................Ø60 (2-3/8”)
Tailstock quill travel........................150 (6”)
Tailstock center taper........................MT#4
Spindle motor.................................5kW (7.5 hp)
Coolant pump..................................1/8 hp
STANDARD + INCLUDED ACCESSORIES
3 jaw & 4-jaw manual chuck with chuck guard....Yes
Lead screw cover...............................Yes
Follow rest....................................Yes
Steady rest....................................Yes
Taper turning attachment.......................Yes
LED work light.................................Yes
MT#6 center sleeve.............................Yes
MT#4 dead center...............................Yes
Coolant equipment..............................Yes
Splash guard...................................Yes
Leveling screws................................Yes
Service kit....................................Yes
