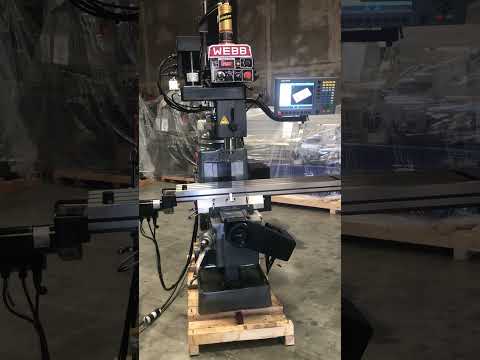

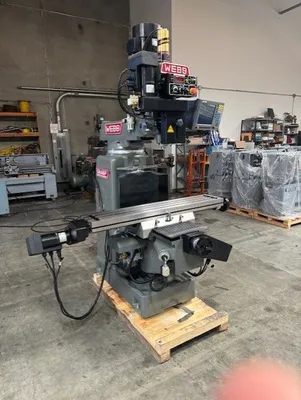

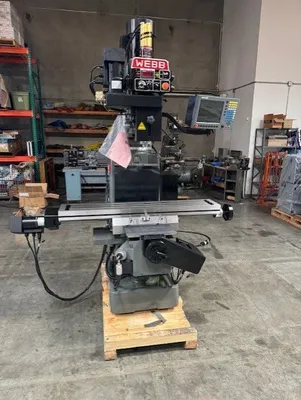

New 10" X 54" WEBB CHAMP 3-EVS-2X-XL CNC KNEE MILL WITH 3 AXIS ACU-RITE G2 CONTROL
Have one to sell?
ConditionNew
1 available
New
New 10" X 54" Webb CNC Knee Type Milling Machine Model Champ 3EVS-3X-XL With Mill Power G2/3
100 % Made In Taiwan. MFG SINCE 1977, 15,400 IN SERVICE IN USA
WEBB CHAMP 3EVS-XL-3X-G2 CNC KNEE MILL WITH ACU-RITE G2 CONTROL 2 AXIS CNC WITH
MITSUBISHI INVERTER DRIVE 3 H.P. ELECTRONIC VARIABLE SPEED MILLING HEAD.
LINEAR SCALE Z AXIS, BALL SCREWS X, Y AND Z AXIS, NST 30 TAPER SPINDLE,
LARGE 10 X 54 TABLE, HAND WHEELS FOR MANUAL MOVEMENT, 3200 LBS MEEHANITE CASTING,
TURCITE COATED SLIDE WAYS, AUTO LUBE, TOOLBOX AND ALL MANUALS,
220 VOLTS 3 PHASE ELECTRICS. 1 YEAR PARTS WARRANTY.
MACHINE DELIVERED TURNKEY READY.
Standard Features
3 HP variable speed head
60-550-4500 spindle RPM
AC-Freq inverter head (single-phase or 3-phase capable,
large digital spindle rpm display with real-time load meter)
Automatic centralized lubrication system with metered check-valves
Hardened and Ground (Hrc-52) table surface and all slide ways
Table Size....................................................10" X 54"
Table Weight Capacity.........................................850 Lbs.
T-Slots On Table..............................................3
T-Slot Size...................................................5/8"
Spindle Taper.................................................NST 30
Spindle Speeds Electronic Variable Speed......................60 To 4,500 Rpm's
Spindle Feeds.................................................0.0015 To .003 I.P.R.
Spindle Quill Diameter........................................3.375"
Spindle Quill Travel..........................................4"
Drilling Capacity Manual......................................0.75"
Drilling Capacity CNC.........................................0.375"
Boring Capacity...............................................6"
Milling Capacity..............................................2" 3"/Min.
Spindle Tilt..................................................+/- 45 Degrees
Spindle Swivel................................................+/- 90 Degrees
Spindle To Table Min. / Max...................................2.75" To 17.75"
Spindle Centerline To Column Min. / Max.......................5" To 27"
Saddle Travel In & Out Y Axis.................................14"
Table Travel Longitudinal X Axis..............................32"
Knee Travel Z Axis............................................15"
Table Feeds Variable..........................................0 To .250 I.P R.
Over Arm Travel In And Out....................................21-5/8"
Over Arm Swivel...............................................360 Degrees
Main Motor....................................................3 Hp. 220V/3 Phase
Floor Space Right To Left.....................................84"
Floor Space Front To Back.....................................84"
Height........................................................84"
Weight........................................................3,110 Lbs.
Servo Knee Axis Motor & Install...............................$1,900.00 Included
4th Axis On Knee..............................................$1,890.00 Included
NST 30 Taper Spindle In Place Of R-8..........................$990.00 Included
Maxi Torque Power Draw Bar System for 30 Taper................$1,290.00 Included
Install Air Draw Bar .........................................$225.00 Included
Linear Z Axis Scale On Quill..................................$1,190.00 Included
Option Prices Are Not Include in Base Price.
Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description..................................Price
Power Tool Lock:
Webb-1036
Maxi Torque Power Draw Bar System for 30 Taper................$1,290.00
Install Air Draw Bar .........................................$225.00
WEBB- 1200
Coolant Pump System...........................................$990.00
WEBB- 1205
Coolant/Chip Pan..............................................$695.00
Install Coolant Pump System...................................$595.00
Riser:
WEBB- 2004....4” Riser Block with Hardware....................$895.00
WEBB- 2006 ...6” Riser Block with Hardware....................$695.00
WEBB- 2010....10” Rise Block with Hardware....................$880.00
Installation..................................................$175.00
WEBB- 3100....Precision Ground Ball screws X and Y Axis.......$1,900.00
Tooling:
WEBB -1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series..........$249.00
WEBB -1126
6” Precision Machinist Vise ..................................$790.00
6” Precision Vise Economy.....................................$670.00
WEBB- 1152....52 Piece Work Hold Down Clamp Set...............$149.00
WEBB..1170-8..8 Inch Rotary Table / vert. and Horiz...........$995.00
WEBB..1170-8..10Inch Rotary Table / vert. and Horiz...........$1,290.00
WEBB..1170-12.12 Inch Rotary Table / vert. and Horiz..........$1,690.00
D.R.O. System:
Mitutoyo Digi-matic Quill Scale With Bracket Installed........$975.00
Voltage:
Wired To 440 Volts............................................$1,000.00
Delivery 4 Weeks after receipt of order.
ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
All WEBB Mills Feature:
Certified Meehanite Castings, Clean Room Assembled Class 7 Spindles, Cooled Spindle Heads, Lower Spindle Motor Shaft is Bearing Supported, Highest Accuracy Mills in Production, Same Factory Since 1977, Tens of Thousands Sold World Wide.
No one USA Imported Mill Complete Inventory of Parts.
Friendly Staff for Over 40 Years
All WEBB Mills are:
Coolant Ready
Include One Shot Lubrication
Tool Box with Adjustment Tools and Operation Manual.
Electronic Head
Machines Provide, Full Torque Throughout the Entire RPM Range.
All WEBB Mills Meet the WEBB Accuracy,
Parallelism of Y Travel:0008"/16.
Parallelism of Knee Travel: 0008"/16".
Parallelism of Quill Travel: .0005"/5"
Spindle Run-out: 00015"
