Used 2010 MAZAK HYPER QUADREX 450M | CNC Lathes, Slant Beds
Have one to sell?
ConditionUsed
1 available

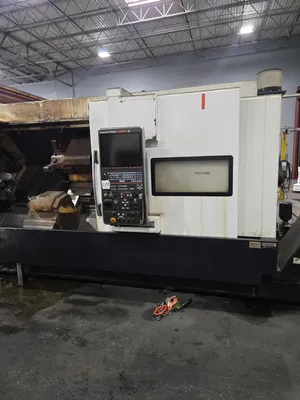

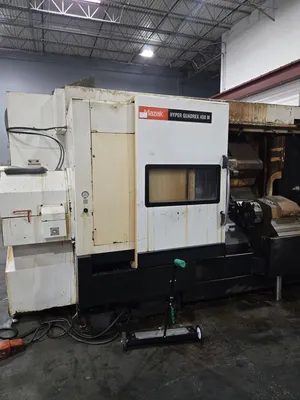

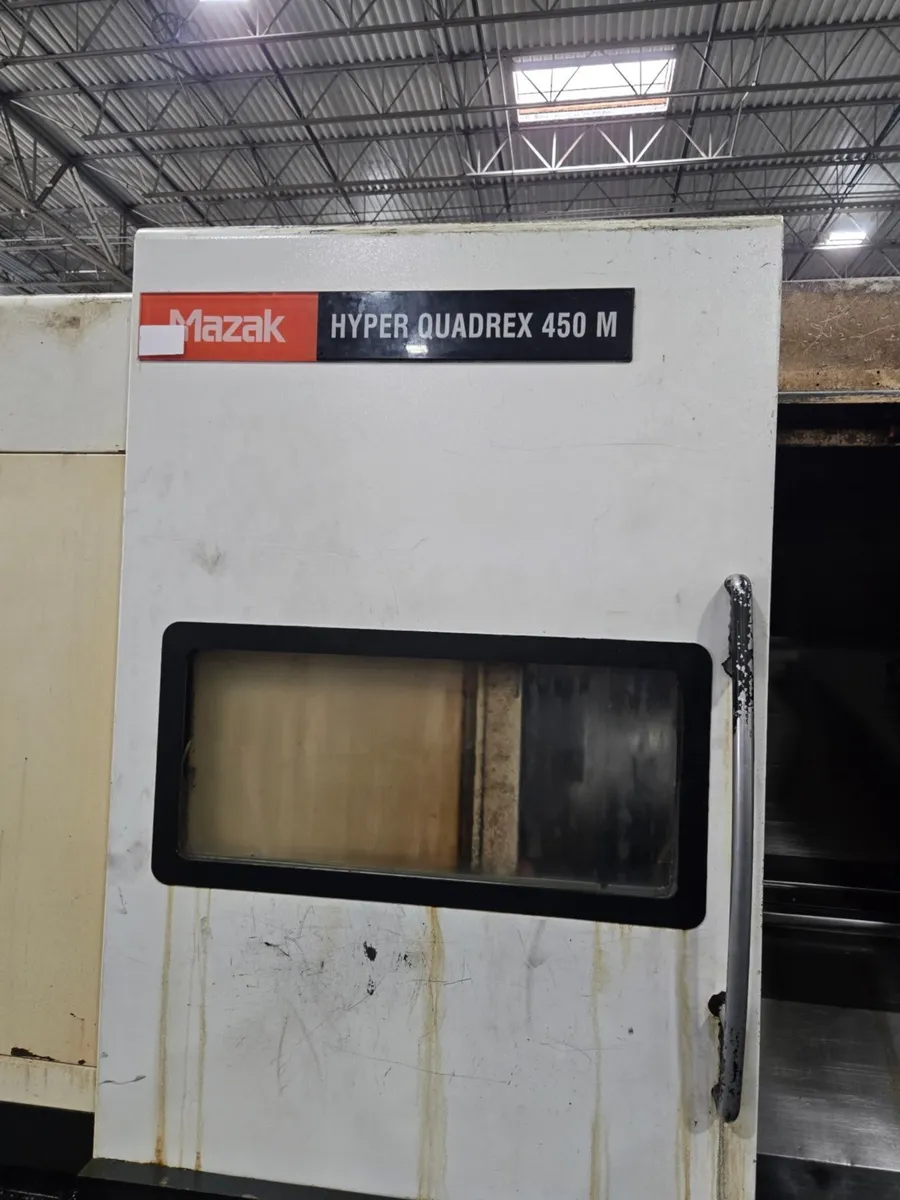

Mazak Hyper Quadrex 450 M
MACHINE DESCRIPTION:
The HYPER QUADREX 450M Multi-Tasking turning center brings high productivity and heavy material removal to large-diameter part applications, including shafts and pipes. Its extreme performance capabilities are made possible via its twin-turret configuration, rotary milling capability and robust integral motor/headstock with a 7.2" spindle bore.
MACHINE CHARACTERISTICS:

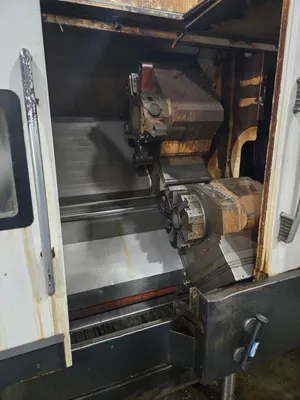

Upper and lower turrets work in tandem for simultaneous turning
Main spindle provides high horsepower, speed and torque
Milling spindle on upper turret offers high versatility
Rigid machine construction ensures high precision operations
Strong tailstock adds support to long, heavy shaft-type part production

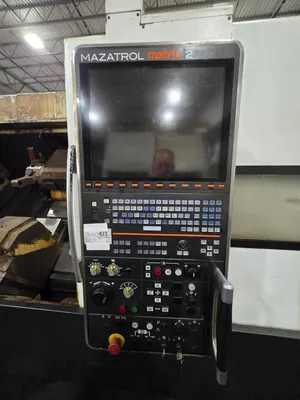

User-friendly MATRIX 2 CNC high accuracy and productivity
Swing...........................................33.07"
Turning Diameter................................23"
Machining Length................................82.83"

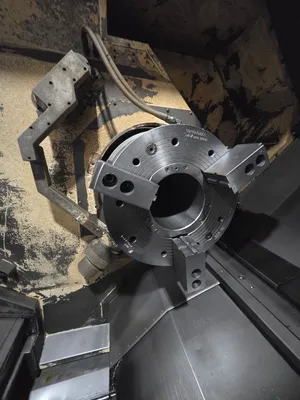

Chuck Size BBN470-191 ES........................18"
Bar Capacity....................................7.2"
Max RPM.........................................2,000 RPM
Power...........................................50 hp
Tailstock.......................................Yes
Live Tooling....................................Yes

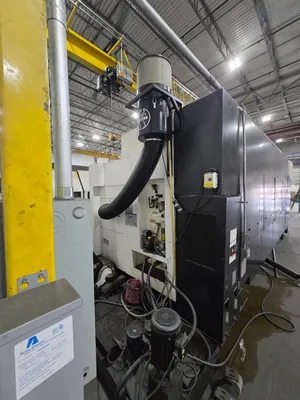

Royal Mist Filter Package.......................Yes
Chip Conveyor...................................Yes
Coolant.........................................Yes
Note:
Machine is being cleaned and painted at the present time in our
Houston Texas painter's warehouse. Once it is painted it will be
moved to our warehouse and put under power. It could be put under
power on customer's floor provided the customer set it in place
and runs power and air to machine. We will send our tech in to
put it under power and get it up and running. Houston customers only.
