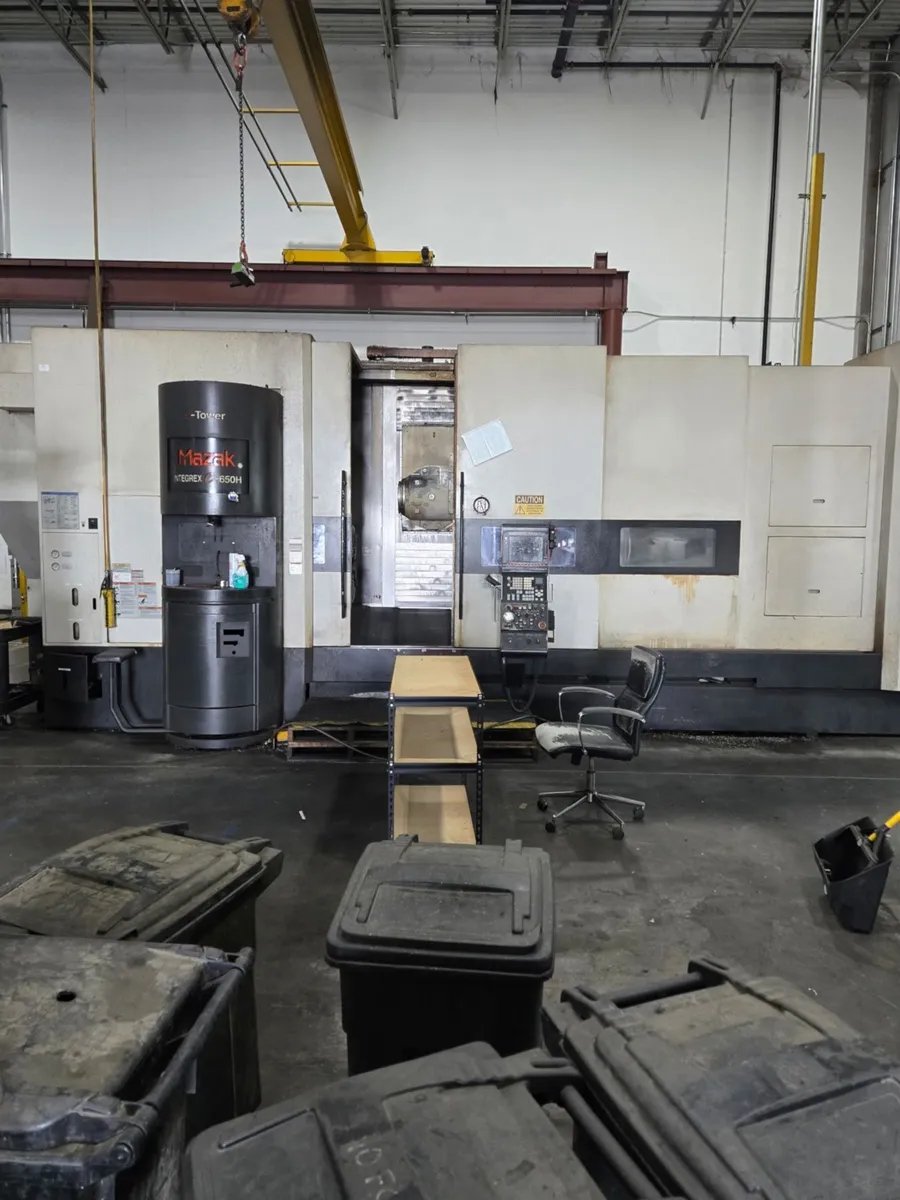

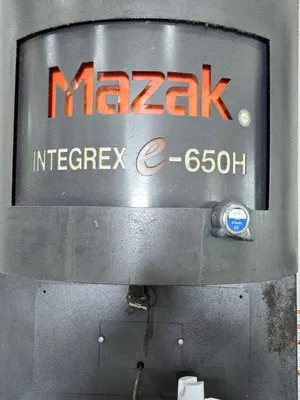

MAZAK INTEGREX E-650-H Year 2005 -11

Swing over bed........................................36"
Maximum machining diameter............................36"
Distance between centers..............................132"
Maximum machining length..............................120"
Main spindle speed....................................1,000 RPM
Spindle motor.........................................60 HP
Spindle borer.........................................10.8"
Spindle taper.........................................CAT 50
C-axis spindle speed..................................10,000 RPM
Milling Spindle Motor.................................50 Hp.
X-axis travel.........................................40"
Z-axis travel.........................................123"
Y axis travel.........................................26.6"
B-axis travel.........................................30° TO 210°
C-axis increments.....................................0.001°
Programmable Hydraulic Steady Rest ...................13.8" Capacity
Floor Space
Machine Height
Machine Weight........................................70,000 Lbs.
Chip Conveyor.........................................Yes
Coolant...............................................Yes
EQUIPPED WITH:

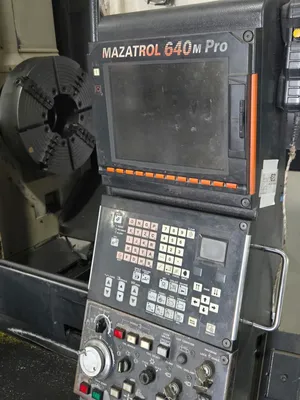

MAZAK MAZATROL 640M CNC PRO CONTROL...................Yes

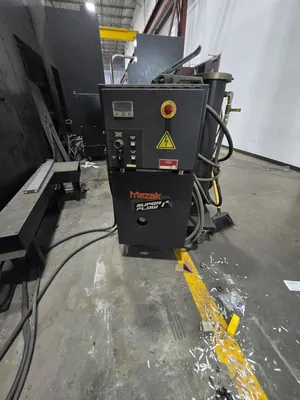

HIGH PRESSURE COOLANT THROUGH SPINDLE.................Yes
80 TOOL ATC...........................................Yes

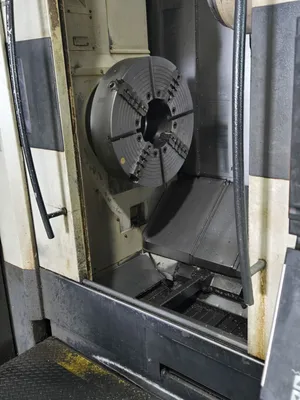

4 JAW CHUCK ON FRONT..................................Yes
TAILSTOCK.............................................Yes

Note:
Machine is being cleaned and painted at the present time in our
Houston Texas painter's warehouse. Once it is painted it will be
moved to our warehouse and put under power. It could be put under
power on customer's floor provided the customer set it in place
and runs power and air to machine. We will send our tech in to
put it under power and get it up and running. Houston customers only.
