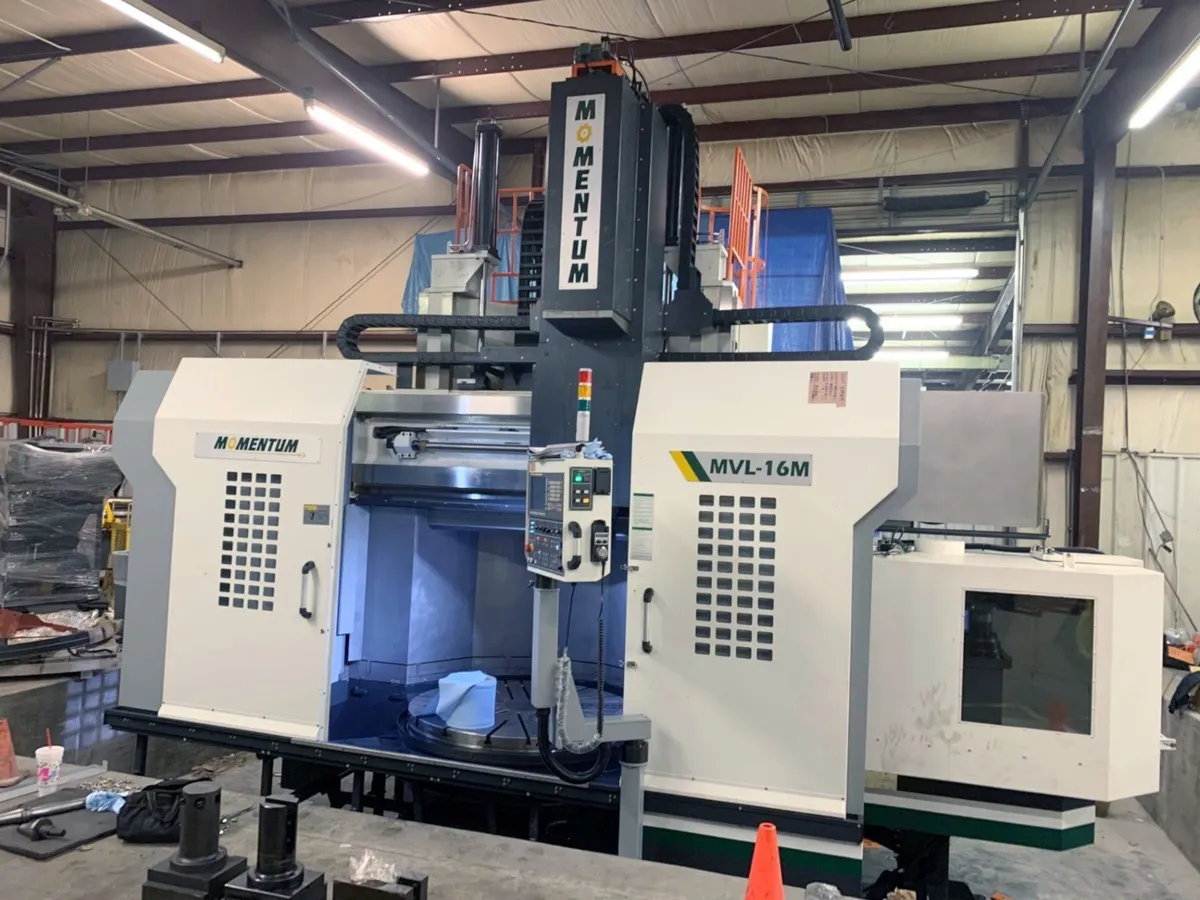

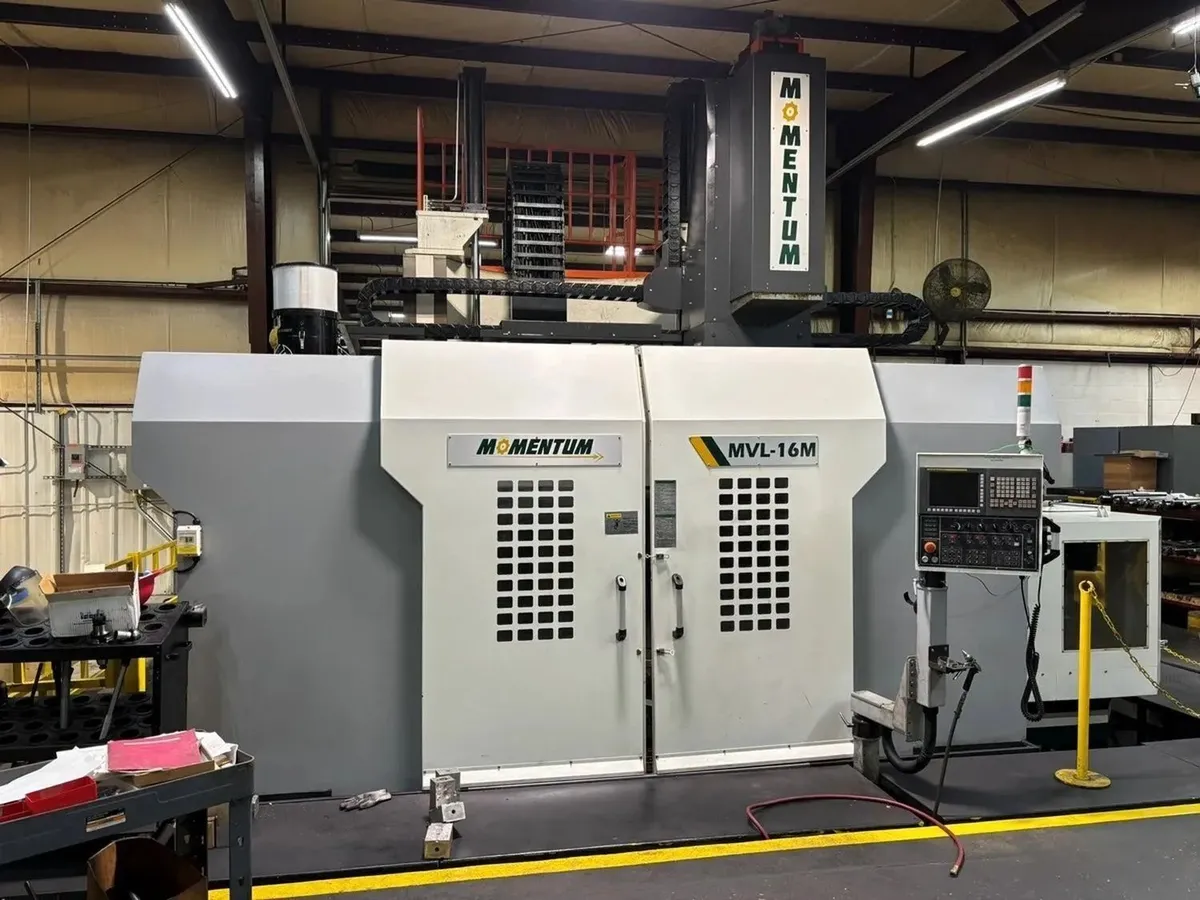

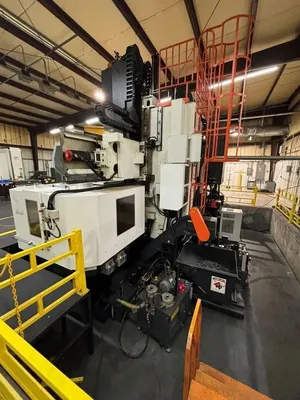

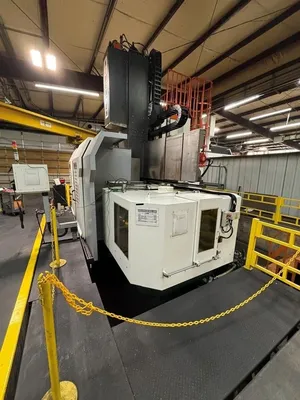

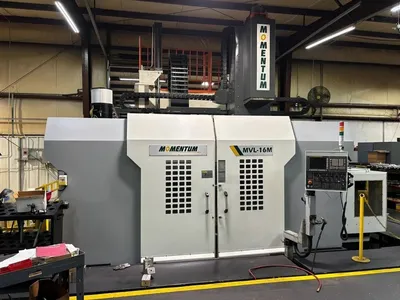

62.99" Momentum CNC Boring Mill Model MVL-16M With Live Tooling and C Axis

Product Specifications

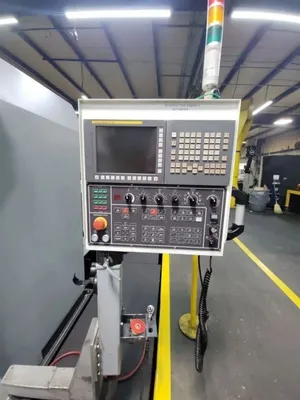

Control.................................................Fanuc Oi-TF CNC
Less Than 3,000 Hour of Turning Time
Capacity:
Table Diameter T-Slotted................................62.99"
Max. Table Weight.......................................22,046 Lbs.
Max. Table Torque.......................................17,701
Boring Mill Jaws........................................4
Maximum Turning Diameter................................78.74"
Maximum Height Under Ram Face...........................70.08"
Maximum Cutting Height..................................63.18"
Table Speeds Low / High Range...........................65 To 280 RPM
Milling Spindle Speeds..................................486-3000 RPM
Milling Spindle Taper...................................#50
Max Milling Spindle Torque..............................604
Ram Diameter............................................10"X10"
Ram Vertical Travel Z Axis..............................39.37"
Ram Horizontal Travel...................................45.87"
Rail Travel.............................................35.43"
Feed Rate...............................................0.039 To 78.4 IPM
Rapid Traverse..........................................393 IPM
Floor Space.............................................R-L 161" x F-B 204"
Machine Height..........................................213.78"
Machine Weight..........................................36,800 lbs. Lbs.
Main Motor..............................................73.7 / 60.3 HP / 60 HP T220/3/60
X And Z Axis Servo Motors...............................9.4 With 3:1 Reduction
Milling Spindle Horsepower..............................29.5
CF Axis Motor...........................................9.4 With 360:1 Reduction
Required Electrical Power...............................3-Ph 460V ±10%; 60Hz ±1%
Main Breaker Size.......................................175 Amp, 139 kVA @ 460V
CTS / Flood / Bed Wash Pumps Bar [PSI], L/min...........87 and 100
Tank Volume Liters Gallons...............................157
Tank Filtration, Basket / Secondary......................0.040/0.024]
Equipped With:
Ram W/ 16 Position Automatic Tool Changer
Live Milling Spindle

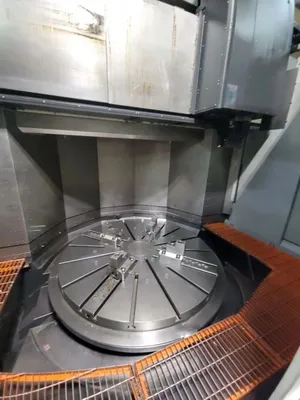

C-Axis Table
Right Angle Head
Coolant Through Spindle
Chip Conveyor
Full Enclosure
Note:
Machine in plant under power.
Replacement cost $855,000.00
The machine was equipped with most every option
The machine was bought and used primarily for one job,
now complete. Less than 3000 hours turning time.
Link to the Momentum Brochure:
https://momentumna.com/wp-content/uploads/2024/10/MVL-SR-Brochure_10_04_24-6.pdf
