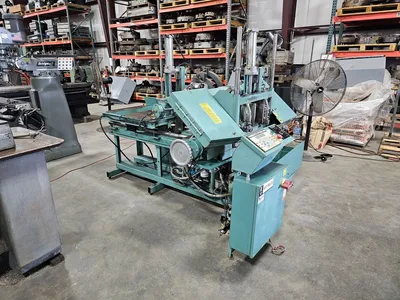

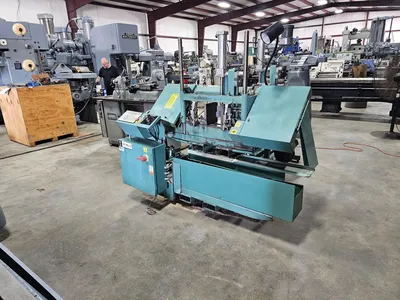

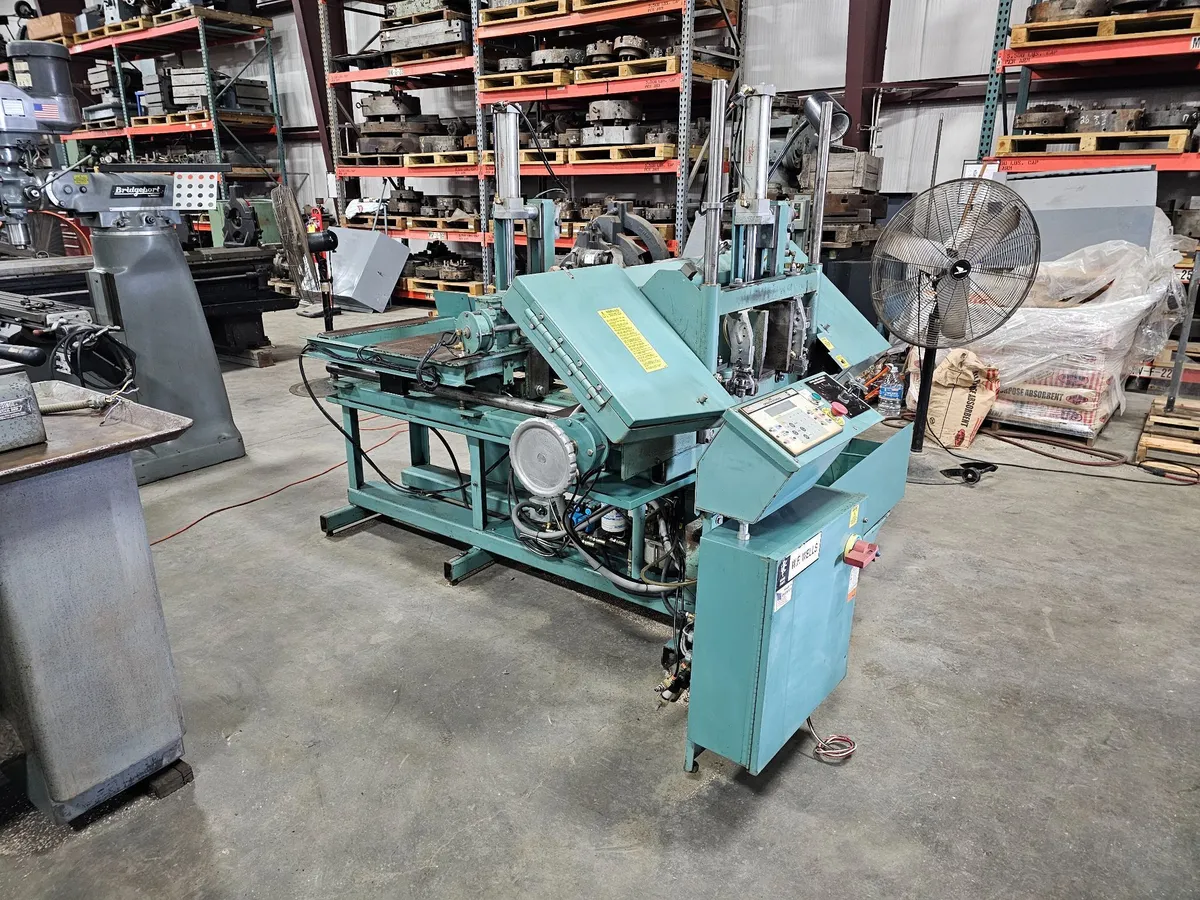

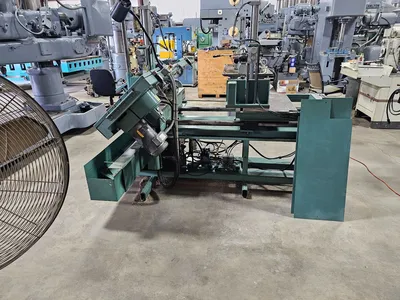

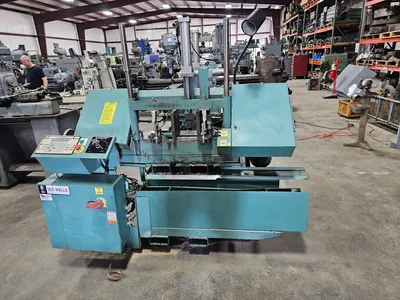

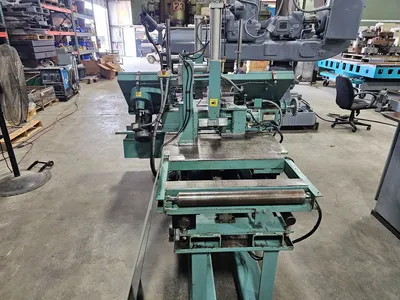

9"X14" W.F. Wells Dual Column Horizontal Saw Model W-914A-CNC

Specifications
Capacity Rectangular at 90 degrees....................9" High x 14" Wide.
Round.................................................9" Diameter
Weight Capacity.......................................3,000 lbs.
Blade Speed...........................................70-380 SFPM
Blade Size............................................1" X .035" X 11' 6"
Blade Guide Roller Guides with Carbide Inserts
Vise Air,.............................................8½" High
Band Wheel Size.......................................14½" Order
Blade Drive...........................................3 HP, AC Vector Drive
Sawing Force..........................................30-120 lbs.
Coolant Capacity......................................15 Gallon
Hydraulic Capacity....................................¾ Gallon
Hydraulic Drive.......................................¾ HP Motor
Work Height...........................................35"
Bar-feed Projection Hydraulic.........................0-25" CNC Controlled
Projection Accuracy...................................+/-.002"
Remnant End...........................................8"
Tipoff Worktable......................................19½" Wide x 15½" Deep
Machine Dimensions....................................R-L 96" x F-B 82"
Height................................................68"
Shipping Weight.......................................2,400 lbs.
Shuttle Indexes Unlimited
Blade Tension Manual
Electric Wired to NFPA 79 Machine Tool Standards
CNC Programmable Controller with Color Touch Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Fork-Lift Pockets in Base

MADE IN USA
