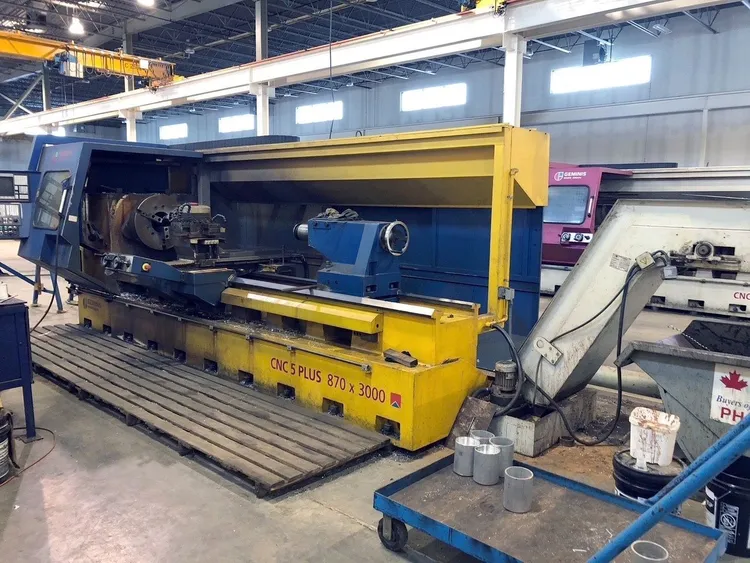

34" x 118" Geminis CNC 5 Plus 870 x 3000 CNC Hollow Spindle Flat Bed Lathe

Control:...................................................Fagor 8055T CNC Control

SPECIFICATION:
Swing Over Bed.............................................34.25"
Swing Over Cross Slide.....................................22.04"
Spindle Bore...............................................9.05"
Height Of Centers; From Flat Guide.........................19.68"
Maximum Turning Length.....................................118"
Width Of Longitudinal Slide................................22.5"
Width Of Cross Slide.......................................11.78"
Travel Of Cross Slide......................................17.65"
Spindle Speeds (4-Ranges)..................................0 - 900 RPM
Chuck Size Front...........................................24" 4-Jaw

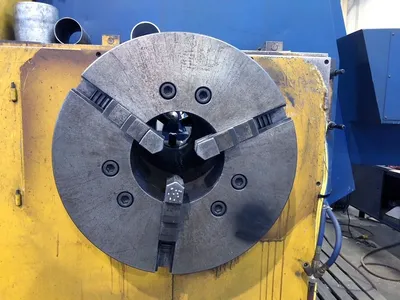

Chuck Size Rear............................................24" 3-Jaw
Main Motor.................................................37 KW (50 HP)
Floor Space................................................R-L 20.9" X F-B 96"
Machine Height ............................................87.2"
Machine Weight.............................................12,567 Lbs.
Equipped With:
Front & Rear Chucks........................................9.05" Spindle Bore
4-Position Auto-Indexing Turret............................Yes
Steady Rest................................................Yes
Tailstock..................................................Yes
Chip Conveyor..............................................Yes

Note:
Machine is in Canadian Plant.
