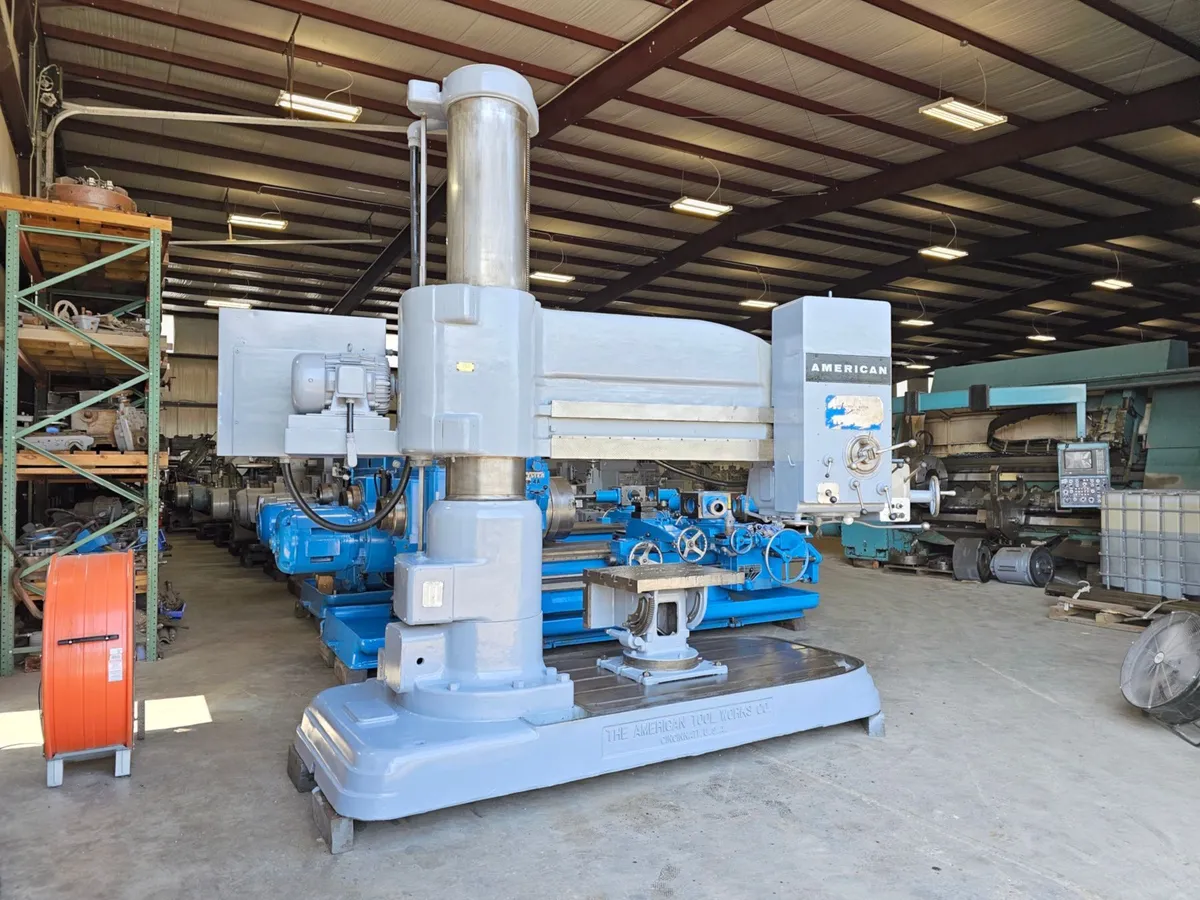

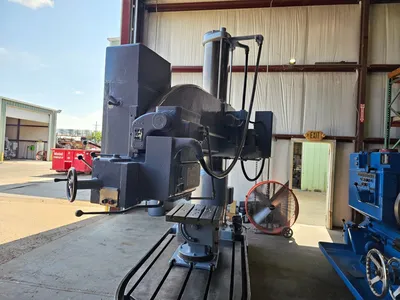

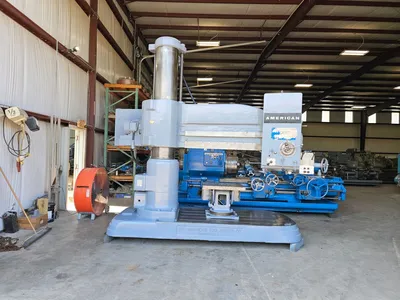

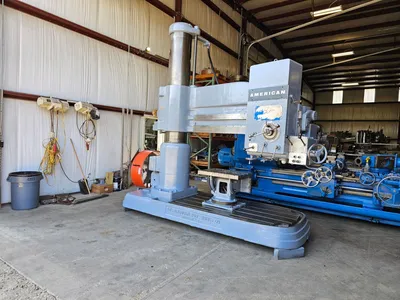

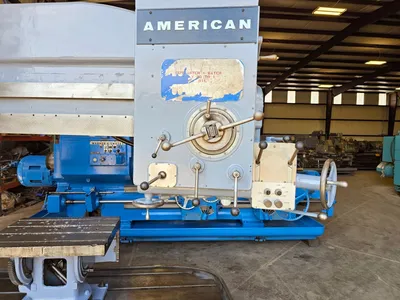

6' X 17" Used American Hole Wizard Radial Drill Year 1970 Serial Number

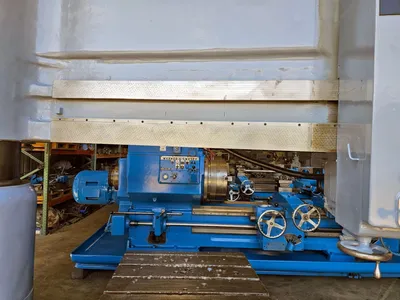

Arm Size.........................................6'

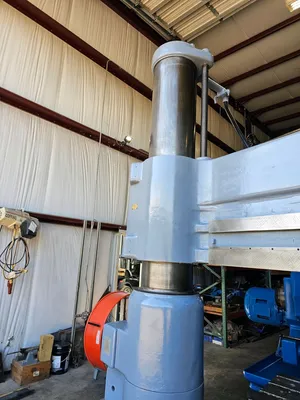

Column Diameter..................................17"
Maximum Height Under Spindle.....................96"
Minimum Height Under Spindle.....................45"
Spindle Speeds...................................20 To 1,600 Rpm's
Spindle Taper....................................# 5
Spindle Travel...................................22-1/2"
Spindle Diameter.................................3-1/2"
Spindle Feeds....................................0.003 To .125 I.P.R.
Main Motor.......................................15 Hp. 220 /440/3
Floor Space......................................R-L 11'6" X F-B 60"
Height...........................................120'6"
Weight...........................................25,000 Lbs.

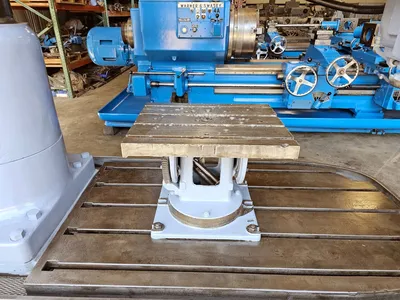

Box Table........................................22" X 28" X 25 High
Power Clamp......................................Yes
Power Elevation..................................Yes
Power Traverse To Head...........................Yes
Coolant..........................................Yes
Note:
Machine will be cleaned, painted and cycled.
