Used 10"X54" Webb CNC Knee Type Milling Machine Model Champ 5VK-HC-XL
Have one to sell?
ConditionUsed
1 available
Used 10"X54" Webb CNC Knee Type Milling Machine Model Champ 5VK-HC-XL
USED 2022
1 YEAR WARRANTY, SAME FACTORY SINCE 1979, 15,400 SOLD IN USA.

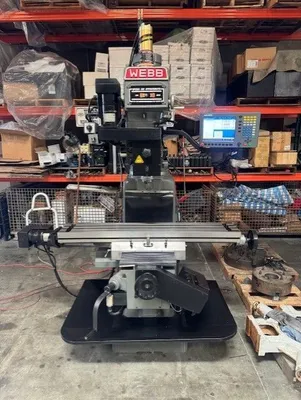

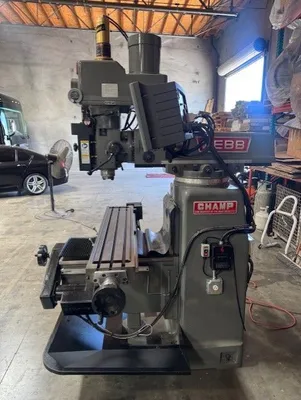

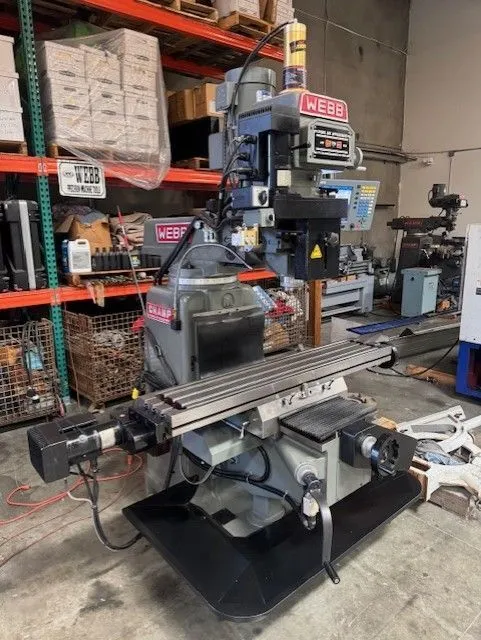

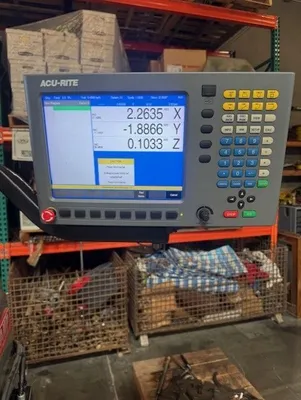

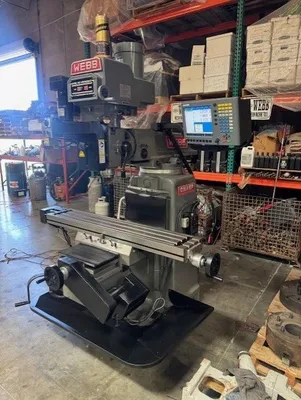

WEBB CHAMP 5VK-HC-XL-3X CNC KNEE MILL WITH ACU-RITE 3 AXIS G2 CONTROL SYSTEM
LARGE 10 X 54 TABLE, BOX WAYS ON THE KNEE AND COLUMN, 5 H.P. HEAVY DUTY

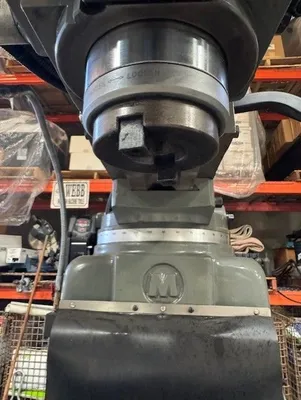

STANDARD VARIABLE SPEED MILLING HEAD, 40 TAPER SPINDLE, 60- 4000 RPM. CHROMED QUILL ,
MEEHANITE CASTINGS, TURCITE COATED SLIDE WAYS, 4200 LBS FRAME,
PRECISION GROUND BALL SCREWS X AND Y AXIS, Z AXIS, LINEAR Z AXIS SCALE INSTALLED,
CONVERSATIONAL PROGRAMMING, GRAPHICS PACKAGE. ,

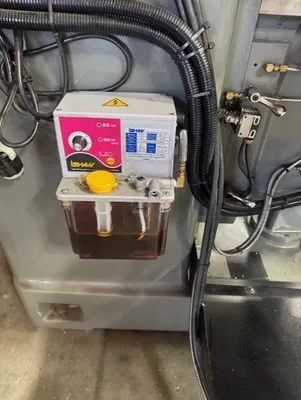

AUTO LUBE SYSTEM. EXTENDED TRAVELS 18" Y 20.5 Z 38" X TOOLBOX AND ALL MANUALS,
ADDED ITEMS, MAXI TORQUE AIR AUTOMATIC DRAW BAR AND LINEAR Z AXIS READ OUT SCALE

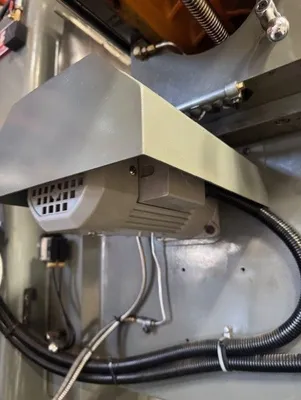

ON QUILL, FACTORY SUPER DUTY POWER KNEE FEED, COOLANT SYSTEM AND CHIP PAN,
Table Size..................................................10" X 54"
Knee Width..................................................14"
Table Weight Capacity.......................................1,500 Lbs.
T-Slots On Table............................................3
T-Slot Size.................................................5/8"
Spindle Taper...............................................40 NST
Spindle Speeds Low..........................................70 To 500 Rpm's
Spindle Speeds Variable High................................60 To 3,800 Rpm's
Spindle Feeds...............................................0.0015,.003 And .0047 I.P.R.
Spindle Quill Travel........................................5"
Spindle Swivel..............................................+/- 90 Degrees
Spindle To Table Min. / Max.................................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.....................4" To 25-5/8"
Saddle Travel In & Out Y axis...............................18"
Table Travel Longitudinal X Axis............................38"
Knee Travel Z Axis..........................................20.5"
Table Feeds Variable........................................0 To .250 I.P R.
Ram Travel In And Out.......................................24"
Over Arm Swivel.............................................60 Degrees
Main Motor..................................................5 Hp.
Floor Space Right To Left...................................102"
Floor Space Front To Back...................................84"
Height......................................................84"
Weight......................................................4,200 Lbs.
Webb-1036
Maxi Torque Power Draw Bar System for 40 NST Taper..........$990.00 Included
Install Air Draw Bar .......................................$225.00 Included
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $2,190.00 Included
Manual Milling Machine Options: Prices Subject To Change Without Notice
Stock Number.....Description................................Price
Webb-1036
Maxi Torque Power Draw Bar System for 40 NST Taper..........$990.00
Install Air Draw Bar .......................................$225.00
WEBB-1200
Coolant Pump System.........................................$995.00
WEBB-1205
Coolant/Chip Pan............................................$695.00
Install Coolant Pump System.................................$350.00
Riser:
WEBB-2004....4” Riser Block with Hardware...................$750.00
WEBB-2006 ...6” Riser Block with Hardware...................$795.00
WEBB-2008 ...8” Riser Block with Hardware...................$795.00
WEBB-2010....10” Rise Block with Hardware...................$990.00
Installation................................................$225.00
WEBB-3100....Precision Ground Ball Screws X and Y Axis......$2,100.00
Power Feeds:
Servo Dynamo Power Table Feed:
SERVO Dynamo 150 Table Feed – Longitudinal..................$895.00
SERVO Dynamo 150 Table Feed – Cross.........................$895.00
SERVO Dynamo 150 Table Feed – Knee..........................$990.00
SERVO 150 Inch Pound Table Feed - Longitudinal..............$980.00
SERVO 150 Inch Pound Table Feed – Cross.....................$1,250.00
SERVO 200 Inch Pound Table Feed – Knee “200 Series” ........$1,590.00
WEBB Factory Power Knee Feed Super Duty 4 and 5 Series ONLY $2,190.00
Table Feed Installation ....................................$200.00
Cross Feed Installation ....................................$275.00
Knee Feed Installation......................................$490.00
Tooling:
WEBB-1111
11 Piece R8 Collet Set, 1/8 to ¾ by 16ths Pro Series........$189.00
WEBB-1126
6” Precision Machinist Vise ................................$780.00
6” Precision Vise Economy...................................$670.00
WEBB.1152....52 Piece Work Hold Down Clamp Set..............$169.00
WEBB.1170-8 8 Inch Rotary Table / vert. and Horiz...........$1,095.00
WEBB.1170-10 10Inch Rotary Table / vert. and Horiz..........$1,395.00
WEBB.1170-12 12 Inch Rotary Table / vert. and Horiz.........$1,690.00
D.R.O. System:
Mitutoyo Digimatic Quill Scale With Bracket Installed.......$850.00
Voltage:
440 Volts 3 Phase...........................................$750.00
ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
All WEBB Mills Feature:
Certified Meehanite Castings, Clean Room Assembled Class 7 Spindles, Cooled Spindle Heads, Lower Spindle Motor Shaft is Bearing Supported, Highest Accuracy Mills in Production, Same Factory Since 1977, Tens of Thousands Sold World Wide.
No one USA Imported Mill Complete Inventory of Parts.
Friendly Staff for Over 40 Years
All WEBB Mills are:
Coolant Ready
Include One Shot Lubrication
Tool Box with Adjustment Tools and Operation Manual.
Electronic Head
Machines Provide, Full Torque Throughout the Entire RPM Range.
All WEBB Mills Meet the WEBB Accuracy,
Parallelism of Y Travel:0008"/16.
Parallelism of Knee Travel: 0008"/16".
Parallelism of Quill Travel: .0005"/5"
Spindle Run-out: 00015"
