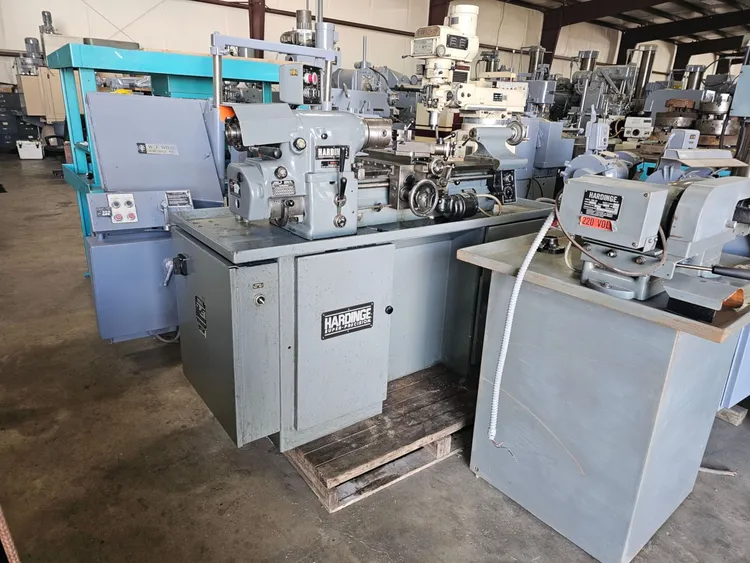

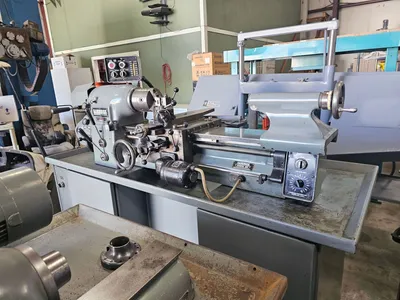

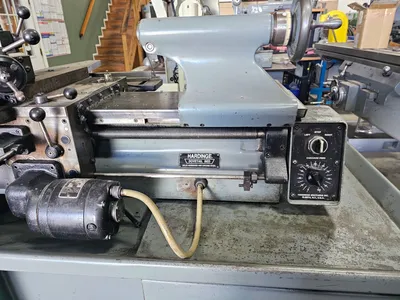

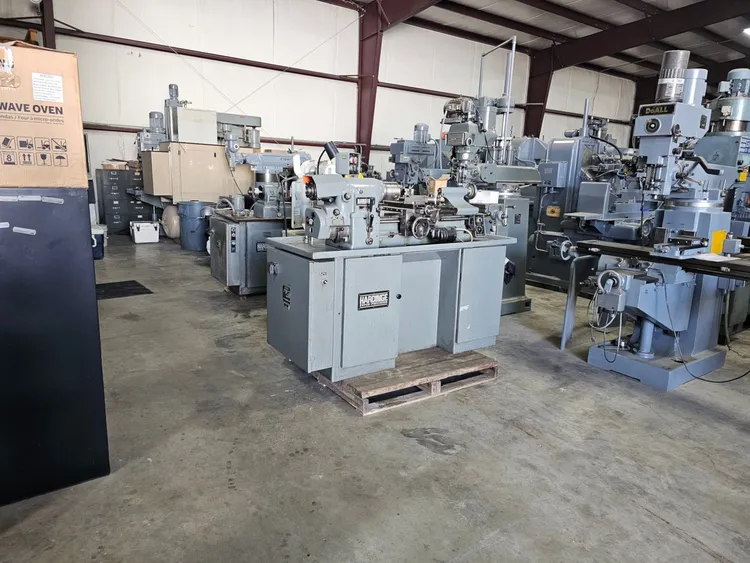

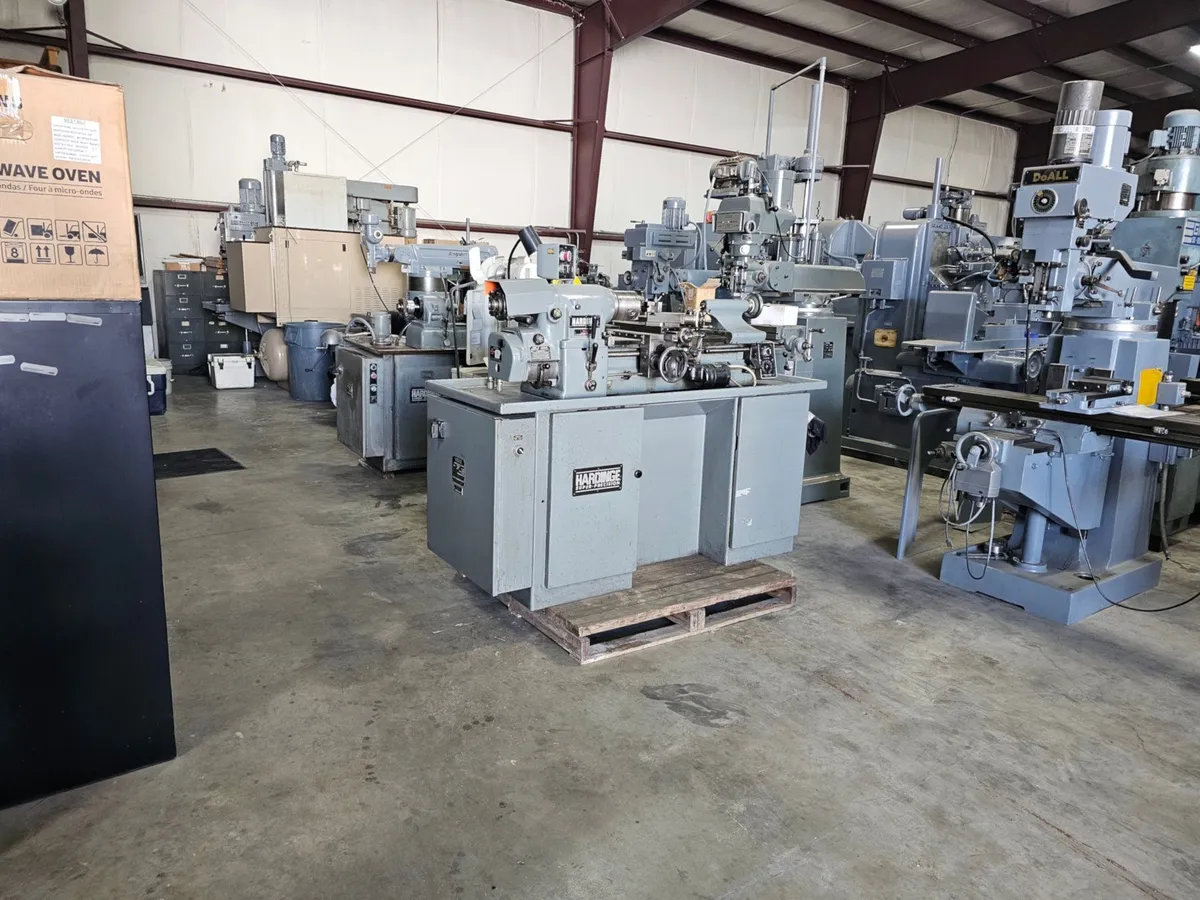

11"X18" Hardinge Model HLV-H Precision Lathe

11"X18" Hardinge Model HLV-H Precision Lathe
Serial No. HLV-H-14688-T
New – 1982

*Preliminary Specifications Subject to Verification.
SPECIFICATIONS:
Swing Over Bed.......................................11″
Swing Over Cross Slide...............................6″
Swing Over Carriage..................................9″
Distance Between Centers.............................18″
Spindle Capacity 5C Collets – Round.................-1/16″
Spindle Capacity 5C Collets – Hex....................7/8″
Step Chucks..........................................1-1/16″ – 6″
Variable Spindle Speeds..............................125 – 3000 RPM
Hole thru Spindle....................................1-1/4″
Compound Slide Travel................................3″
Carriage Power Feed Range............................5/16″ – 7 IPM
Cross Slide Power Feed Range.........................3/16″ – 4 IPM
Tailstock Spindle Travel.............................3-3/4″
Tailstock Spindle Taper..............................No. 2 MT
Lead Screw Diameter..................................1″ – 8″ Thread
Range of Threads (27) – Inch.........................11″ – 108″ TPI
Range of Threads (27) – Metric.......................0.275 – 2.7 mm
Electrics............................................1.5 Hp.230V/3Ph/60Hz
Actual Machine Dimensions............................R-L 69" X F-B 36"
Height...............................................58"
Weight – Approximate.................................2,200 Lbs.

Hardinge Lathe HLV-H-EM EQUIPPED WITH:
Auxiliary Inch and Metric Threading Box..............Yes
Dual Dials for Reading in Inch or Millimeter.........Yes
Assorted Collets.....................................Yes
6″ 3-Jaw Chuck.......................................Yes
Cut-Off Slide, Tool Posts............................Yes
M.D. Coolant.........................................Yes

Note:
May be seen under power with proper notice.

*Preliminary Specifications Subject to Verification.

The Hardinge Lathe HLV-H-EM is a highly regarded toolroom lathe
renowned for its precision and versatility. Manufactured by Hardinge Inc.,
it embodies the company’s commitment to quality and craftsmanship.
The HLV-H-EM is designed to deliver exceptional accuracy, making it a
preferred choice for toolmakers, prototype manufacturers, and high precision
machining operations.
Featuring a solid construction and meticulous engineering,
the Hardinge Lathe HLV-H-EM offers a range of advanced features.
It boasts a variable speed control system, allowing for precise adjustments
to match the requirements of different materials and cutting operations.
The lathe’s precision-ground bed, cross slide, and carriage assembly ensure
stability and accuracy during machining processes.

The Hardinge Lathe HLV-H-EM incorporates a quick-change tooling system,
facilitating efficient tool changes and minimizing downtime. Its spindle
design enables rapid collet changes, contributing to enhanced productivity.
The lathe’s versatility extends to its ability to perform threading, turning,
facing, drilling, and tapering operations.

With its reputation for reliability, precision, and versatility,
the Hardinge Lathe HLV-H-EM continues to be a trusted tool in industries
that demand high levels of accuracy and performance.
