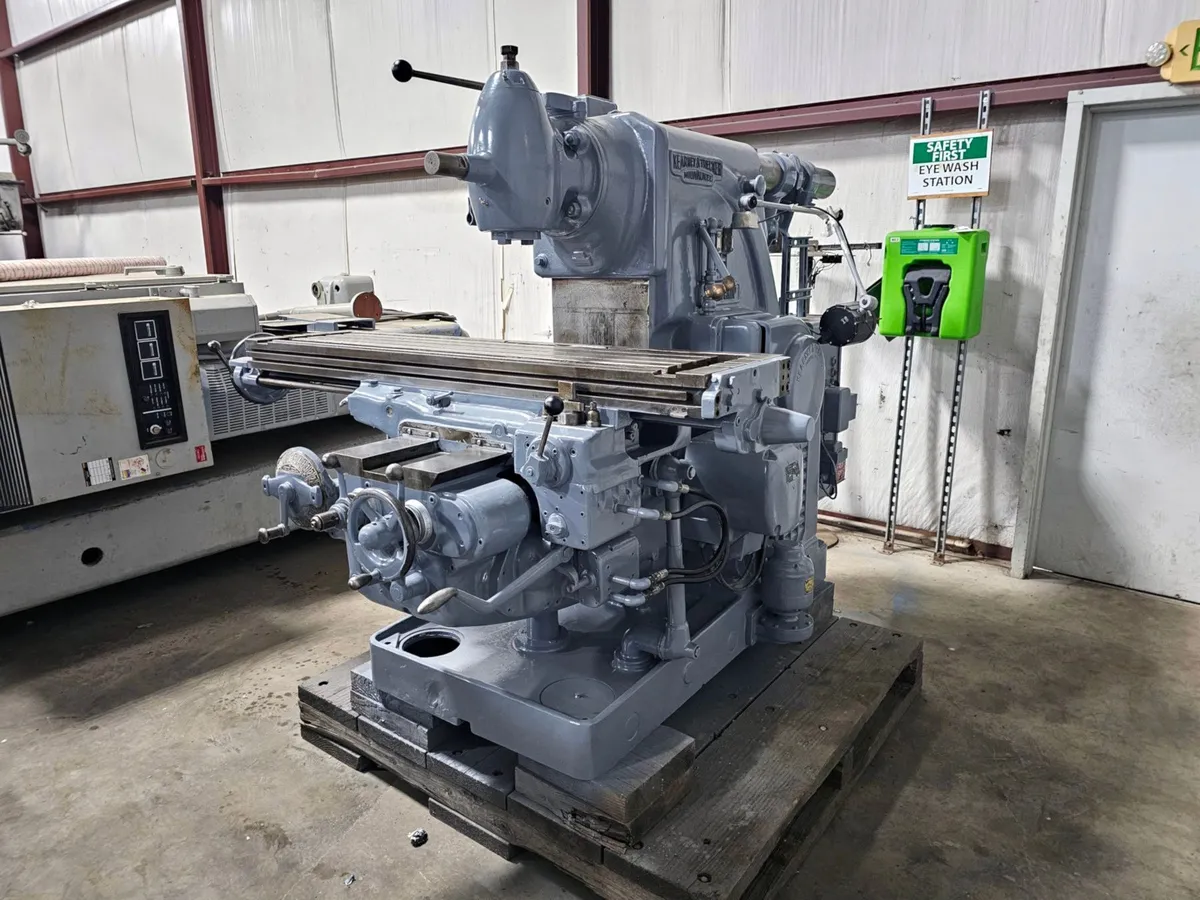

15" X 64" Used K & T Horizontal Milling Machine Model 3 CK With Double Swivel Vertical Head
Table Size.........................................15" X 64"
Table Travel.......................................34"
Table Cross Travel.................................16"
Spindle Taper......................................50"
Knee Travel Up & Down..............................16"
Spindle Speeds.....................................15 To 1,500 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 16-1/2'
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor.........................................15 Hp. 220 / 400 / 3
Floor Space........................................R-L 84" X F-B 84"
Height.............................................72"
Weight.............................................10,500 Lbs.
Arbor Support (2)..................................Yes
Double Swivel Vertical Head........................Yes
Coolant............................................Yes
Note:
Machine came of the US Navy.
Machine will be cleaned, painted and cycled.
New oil and belts.
