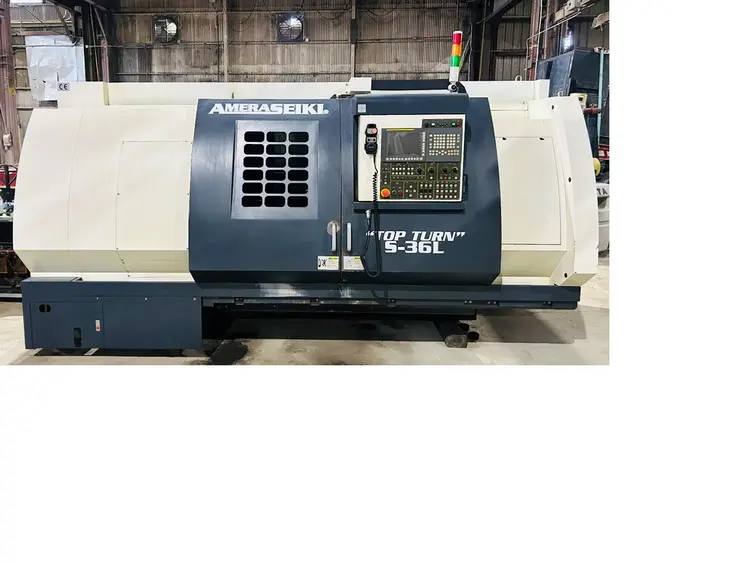

30.7" X 49.2" Ameri-Seiki CNC Slant Bed Lathe Model S-36L Year 2018

Capacity.........................................Metric...Inch
Swing Over Bed...................................Ø780.....30.7"
Max Turning Diameter.............................Ø500.....19.6"
Max Turning Length...............................1200.....47.2
Distance Between Centers mm (in).................1250.....49.2"
Chuck Diameter mm (in)...........................18”
Spindle
Spindle Speed rpm................................1,200
Spindle Nose.....................................A2-11
Spindle Bore.....................................Ø165.....6"
Bar Capacity.....................................Ø117.....4.6"
Turret Type Servo Number of Tools................# 10
Tool Height Square Tool..........................32.......1.25"
X-Axis
Type Box Way Travel..............................275(+30) 12"
Rapid Traverse...................................24.......945 IPM
Ball Screw Diameter..............................Ø40......1.57" Pitch 10
Z-Axis
Type Box Way Travel..............................1350.....53.1"
Rapid Traverse...................................20.......787
Ball Screw Diameter..............................Ø50......2" Pitch 10
Hydraulic System
Hydraulic System Tank Capacity...................15.9 Gallon
Hydraulic Pump motor kw (hp).....................2.3 (3)
Coolant System
Coolant System Tank Capacity.....................66 Gallon
Coolant Pressure.................................44 PSI
Tailstock
Tailstock Body Movement mm (in) Hydraulic........
Quill Diameter mm (in)...........................Ø110 (4.33")
Quill Travel mm (in).............................100 (3.9")
Quill Taper MT...................................#5
Positioning Accuracy X...........................0.025mm/300mm, Z: 0.06mm/300mm
Repeatability Accuracy X.........................0.015mm, Z: 0.025mm
C Axis Positioning Accuracy......................63 arc sec
Main Spindle Motor kw (hp).......................22/26 (30/35)
Floor Space
Machine Height
Standard Accessories:
AC Spindle motor 22/26kw (30/35HP)
FANUC CONTROL Standard voltage 220V
Spindle variable speed max.1200rpm
Spindle nose: A2-11, spindle bore: Ø165mm
18" 3-jaw hydraulic hollow chuck (bar capacity Ø117.5mm) Speed 1200 rpm
With a 3-stage gearbox
Foot pedal x 1set.
Auto lubrication system.
Working light.
Coolant system.
Fully enclosed splash guard.
Front door interlock.
10-station servo turret. □ 1-1/4”x1-1/4” dia. 480mm (Inch Type)
Tailstock quill taper: M.T. #5Ø110mm Tailstock.
Hydraulic quill Tailstock, Travel 100mm.
Operation manual and maintenance manual
E-Fanuc manual and electrical diagram
High-pressure coolant pump 3 bars
