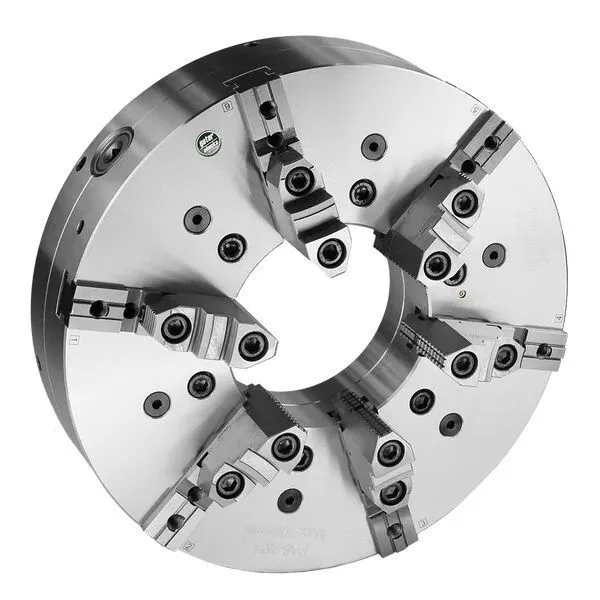

1-153-1600 Gator 16" 6-Jaw Adjustable Scroll Chuck Cast-Iron Body, 2 PC Hard Rev. Jaws

Product Information
Chuck Type....................................Scroll-Adjustable
Chuck Mount...................................Adjustable
Spindle Type..................................Requires Adapter
Chuck Diameter................................15.750"
Thru-Hole.....................................5.354"
Gripping Range Min-Max........................0.59" - 15.75"
Chuck T.I.R...................................0.0004
Max RPM.......................................700
Material......................................Semi-Steel
Jaws..........................................6
Jaw Type......................................2 PC Hard Reversible
Weight Gross..................................242.95 Lbs.
Adapter Adjustable D11........................FLA-315D11 Included
Includes:
1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts,
Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts.

Product Dimensions
D.............................................16"
A 1...........................................11.748"
A.............................................11.782"
C.............................................0.87"
d Hole Max....................................5.354"
E.............................................7.0866
H.............................................4.803"
F.............................................6.750"
h Jaw Height..................................2.638"
M Mounting Bolt Thread........................5/8X11X6
Mounting Bolt Qty.............................6
Adapter:
FLA-400D11....................................Included
Optional Accessories:
Jaws
Hard Top Jaws.................................TJ-PS6-400 Set
Hard Master Jaws..............................MJ-PS6-400 Set
Soft Top Jaws.................................STJ-PS6-400 Set
Spare Parts
Chuck Wrench..................................W-P-400 1 PC
Scroll........................................SC-PS-400 1 PC
Pinion........................................PI-PO-400 1 PC
Pinion Sleeve.................................PS-P-400 1 PC
Half Ring.....................................HR-P-400 1 PC
Fine Adjustment Screws........................FS-PB-400 1 PC
Chuck Mounting Bolts..........................MB-PA-400 1 PC

Our chucks are produced in a private factory in China.
