1-153-1200 Gator 12" 6-Jaw Adjustable Scroll Chuck Cast-Iron Body, 2 PC Hard Rev. Jaws

Product Information
Chuck Type....................................Scroll-Adjustable
Chuck Mount...................................Adjustable
Spindle Type..................................Requires Adapter
Chuck Diameter................................12"
Thru-Hole.....................................4.055"
Gripping Range Min-Max........................0.47" - 12.40"
Chuck T.I.R...................................0.0004
Max RPM.......................................1,100
Material......................................Semi-Steel
Jaws..........................................6
Jaw Type......................................2 PC Hard Reversible
Weight Gross..................................126.99
Adapter Adjustable D11........................FLA-315D11 Included
Includes:
1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts,
Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts.

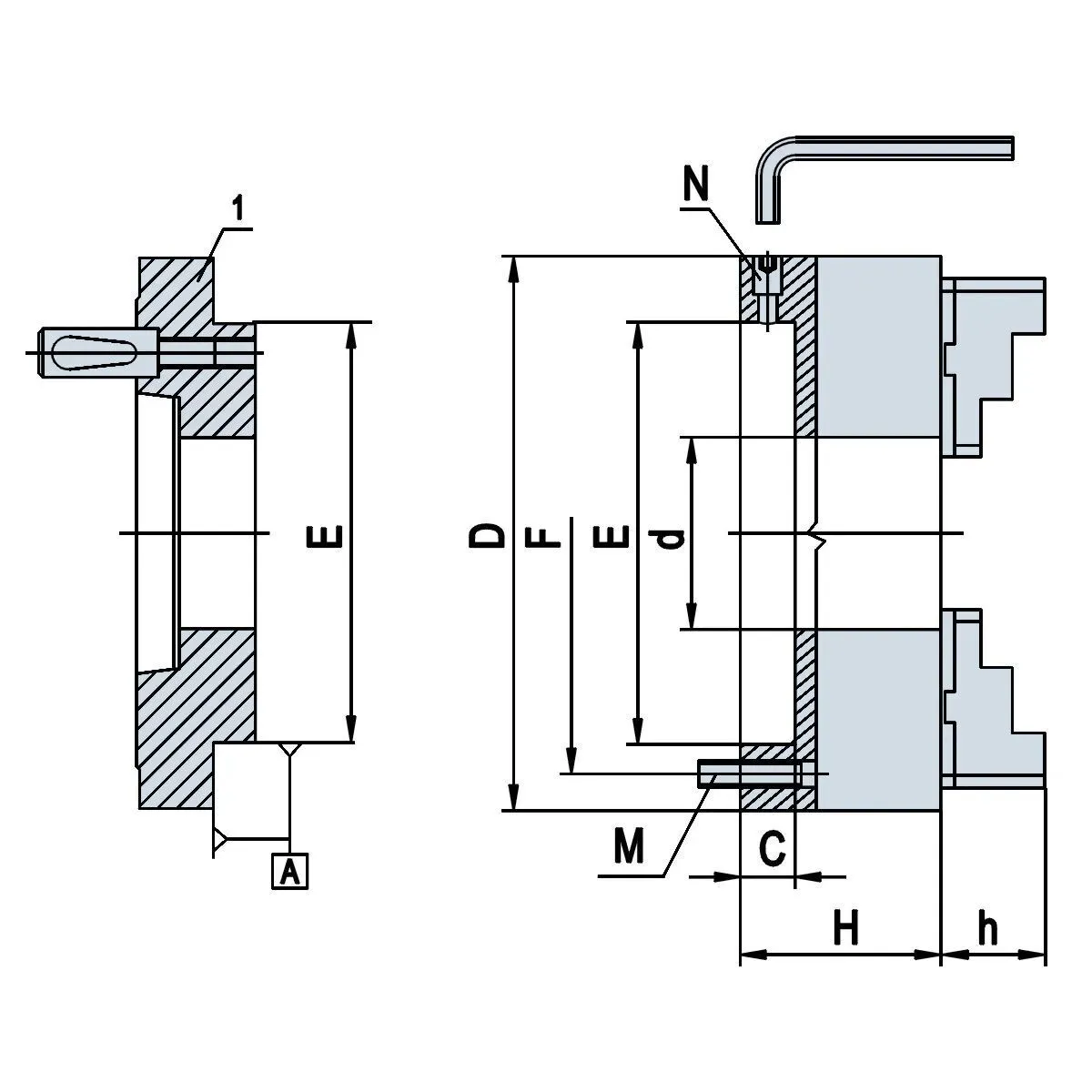

Product Dimensions
D.............................................12
C.............................................0.79
d Hole Max....................................4.055
E.............................................7.0866
H.............................................3.819
F.............................................11.2598
h Jaw Height..................................2.24
M Mounting Bolt Thread........................M16x2 x 3
Mounting Bolt Qty.............................3
Optional Accessories:
Jaws
Hard Top Jaws.................................TJ-PS6-315 Set
Hard Master Jaws..............................MJ-PS6-315 Set
Soft Top Jaws.................................STJ-PS6-315 Set
Spare Parts
Chuck Wrench..................................W-P-315 1 PC
Scroll........................................SC-PS-315 1 PC
Pinion........................................PI-PO-315 1 PC
Pinion Sleeve.................................PS-P-315 1 PC
Half Ring.....................................HR-P-315 1 PC
Fine Adjustment Screws........................FS-PB-315 1 PC
Chuck Mounting Bolts..........................MB-PA-315 1 PC

Our chucks are produced in a private factory in China.
