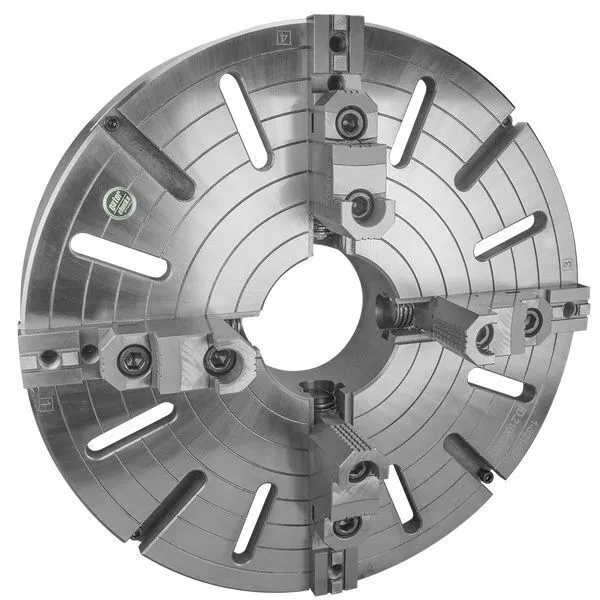

1-321-2511 New Gator 25" Semi Steel Chuck, DM D1-11, 4-Jaw Independent, 2 Piece Jaws

Product Information
Chuck Type  Independent
Chuck Mount....................................D1-11
Spindle Type...................................D1-11
Chuck Dia......................................25"
Thru-Hole......................................6.299"
Gripping Range Min-Max.........................1.97 - 24.80
Chuck T.I.R....................................0.0059
Max RPM........................................400
Material.......................................Cast Iron
Jaws...........................................4
Jaw Type.......................................2 PC Hard Reversible
Weight Gross...................................665.80
Includes    
1 Set of Master and Hard Top Reversible Jaws,
Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts
Product Dimensions
D.............................................25
Taper Size....................................D1-11
B.............................................9.252
G.............................................7.751
d Hole........................................6.299
C.............................................0.7874
H.............................................5.512
h ............................................3.8504
Mounting Camlock Stud Thread..................M22X1.5
Mounting Camlock Stud OD Diameter.............1-3 / 16
Camlock Stud Qty..............................6
Optional Accessories:
Jaws
Hard Solid Reversible Jaws....................RJ-PI-630 Set
Hard Top Jaws.................................TJ-PI-630 Set
Hard Master Jaws..............................MJ-PI-630 Set
Soft Top Jaws.................................STJ-PS1-630 1 Pc.
Spare Parts
Chuck Wrench..................................W-PI-630 PC 1
Operating Screw...............................OS-PI-630 PC 1
Thrust Bearing................................TB-PI-630 PC 1
Camlock Studs.................................CA-D-11PC 1
