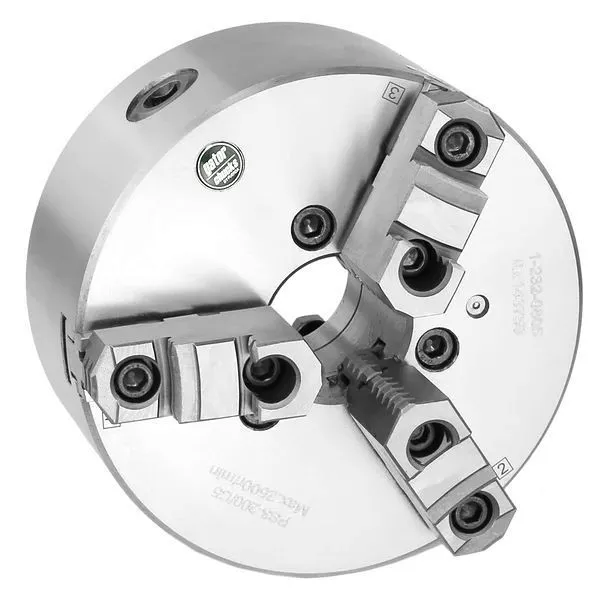

1-221-1611 New Gator Universal (PS3) Semi-Steel Chucks, Direct Mount D1-11, 3-Jaw Scroll, 2-PC Hard Reversible Jaws 15-3/4"

Product Information
Title:
Scroll Chuck 3-Jaw............................16" Cast-Iron Body
Direct Mount..................................D1-11, 2 PC Hard Rev. Jaws
Chuck Type Scroll Self-Centering
Chuck Mount...................................D1-11
Spindle Type..................................D1-11
Chuck Dia (in)................................15-3/4"
Thru-Hole (in)................................5.3543
Gripping Range Min-Max (in)...................0.39 - 15.75
Chuck T.I.R (in)..............................0.0024
Max RPM.......................................1,000
Jaws..........................................3
Jaw Type......................................2 PC Hard Reversible
Weight Gross..................................230 Lbs.
Product Dimensions
D (in)........................................15-3/4"
Taper Size....................................D1-11
d Hole (in)...................................5.3543
B (in)........................................6.7480
G (in)........................................5.5007
C (in)........................................0.7087
H (in)........................................5.059
h (in)........................................2.8543
CAMLOCK Stud OD (in)..........................1
CAMLOCK Stud Thread (mm)......................M20x1.5
CAMLOCK Stud Qty..............................6
Includes:
1 Set of Master and Hard Top Reversible Jaws,
Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts

Optional Accessories:
Jaws
Hard Top Jaws (set)..........................TJ-PS3-400
Hard Master Jaws (set).......................MJ-PS3-400
Soft Top Jaws (set)..........................STJ-PS1-400
Spare Parts:
Chuck Wrench.................................(1 pc) W-P-400
Scroll.......................................(1 pc) SC-PS-400
Pinion.......................................(1 pc) PI-PS-400
Pinion Screw.................................(1 pc) PH-P-400
Camlock Studs................................(1 pc) CA-D-08

Our chucks are produced in a private factory in China.
