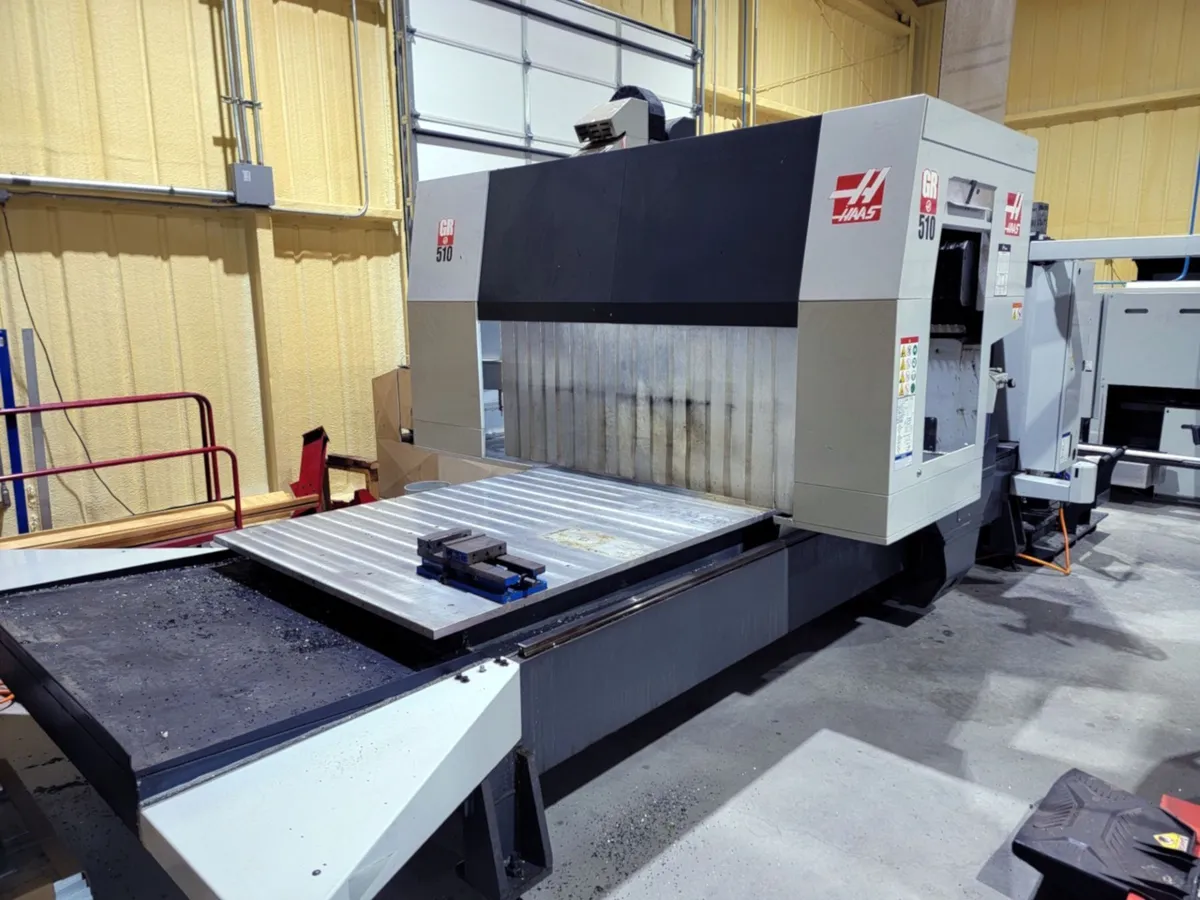

Used 2021 HAAS GR-510 | Gantry Machining Centers (incld. Bridge & Double Column)

Specifications:
Table / Pallet Size............................122" x 53""
X-Travel.......................................121.00"
Y-Travel.......................................61.00"
Z-Travel.......................................11.00"
Spindle Nose To Table Max......................13.5"
Spindle Nose To Min............................2.5"
Max Table/Pallet Load..........................6,000 lbs.
Rapid Traverse X Axis..........................800 IPM
Rapid Traverse Y Axis..........................2,100IPM
Rapid Traverse Z Axis..........................1,100 IPM
Cutting Feed Rate..............................800 IPM
Spindle:
Spindle Taper Type.............................40 Taper CT
Spindle Speed..................................8,100 RPM
Spindle Motor..................................15 HP 220 Volt/ 40 Amps.
Tool Changer:
Tool Magazine Capacity.........................20
Tool Changer Type..............................Carousel
Max. Tool Diameter.............................3.5"
Max. Tool Weight...............................12 Lbs.
General:
Air Required...................................100 PSI
Coolant Capacity...............................95 Gallon
Floor Space Required...........................R-L 220" X F-B 183"
Machine Height.................................101"
Machine Weight.................................19,400 Lbs.

Options:
Standard Program Memory........................1 GB
8100-rpm Spindle...............................Yes
Aluminum Table.................................Yes
Chip and Coolant Guard.........................Yes
Early Power-Failure Detection Module...........Yes
Ethernet Interface.............................Yes
Haas Connect: Remote monitoring................Yes
Haas Drop......................................Yes
Media Display M-Code; M130.....................Yes
Control Touch Screen...........................Yes
Wi-Fi Connection for the Haas Control..........Yes
Visual Part Programming System.................Yes
User-Definable Macros..........................Yes
Spindle Orientation............................Yes
Coordinate Rotation and Scaling................Yes
CT-Style Tool Changer Grippers.................Yes

Note:
Machine is in plant and under power.
Buyer is responsible for removal.
