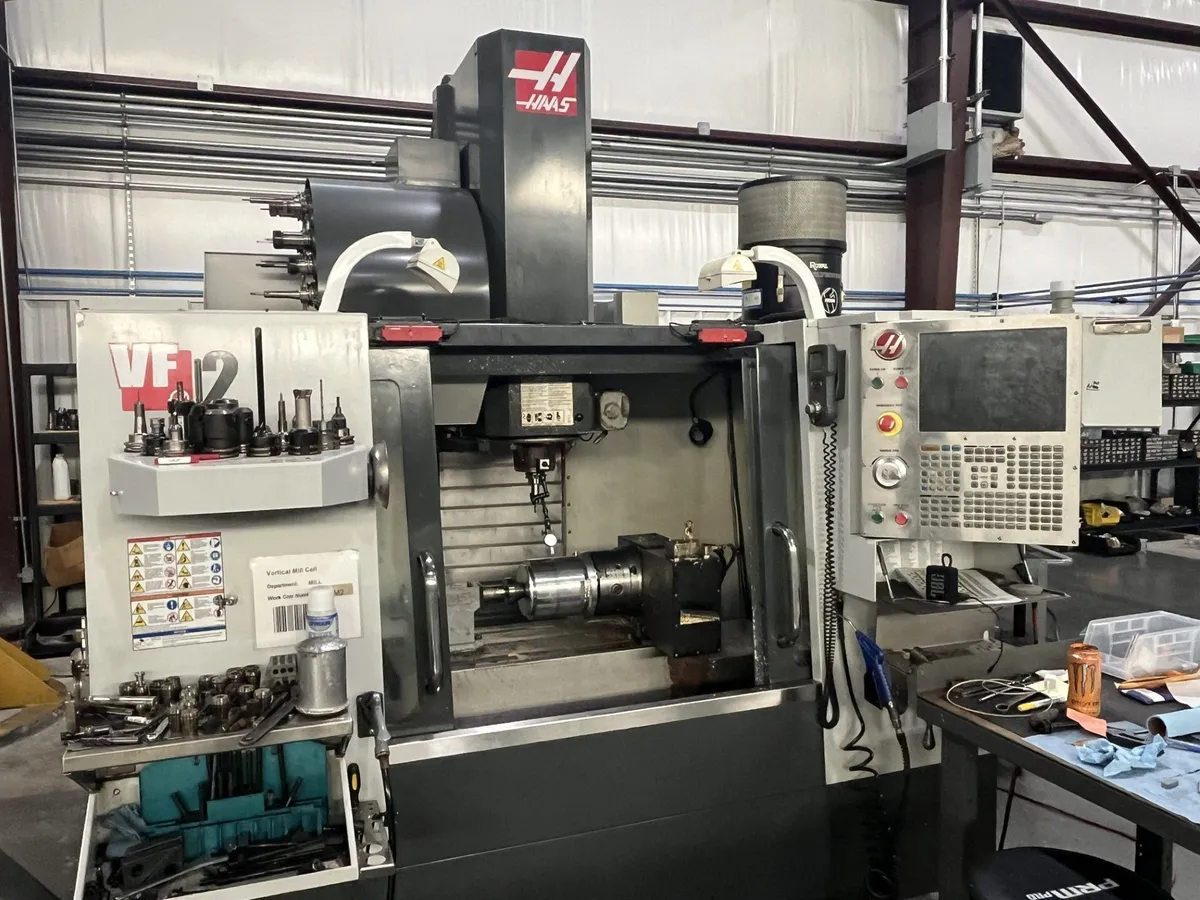

16"X30" Haas Vertical Machining Center Model VF-2

Cutting Hours........................................4,857
Control............................................. Haas
Table Size..........................................14" x 36"
Spindle Nose To Table...............................4.2" To 24.2"
X Axis Travel.......................................30"
Y Axis Travel.......................................16"
Z Axis Travel.......................................20"
Max Cutting.........................................650 IPM
Max Torque..........................................90 Ft-lbs.
Max Thrust X Axis...................................2,550 Ft-lbs.
Max Thrust Y Axis...................................2,550 Ft-lbs.
Max Thrust Z Axis...................................4,200 Ft-lbs.
Rapid Rate X Axis...................................1,000 IPM
Rapid Rate Y Axis...................................1,000 IPM
Rapid Rate Z Axis...................................1,000 IPM
Max Table Load......................................3,000 Lbs.
Spindle Speed.......................................7,500 RPM
Spindle Taper.......................................40 Cat
Tool Changer........................................21 ATC
Tool-to-Tool........................................4.2 Sec.
Max. Tool Weight....................................12 Lbs.
Max. Tool Diameter..................................3.5"
Spindle Motor.......................................20 HP
Drive System........................................Inline Direct-Drive
Dimensions..........................................R-L 101" x F-B 99"
Height..............................................101"
Weight..............................................7,800 Lbs.
Programable Rotary Indexer..........................6"
Thru Spindle Coolant................................Yes
Coolant Capacity....................................30 Gallons
Chip Auger..........................................Yes

Note:
Machine in plant under.
Buyer responsible for removal.
