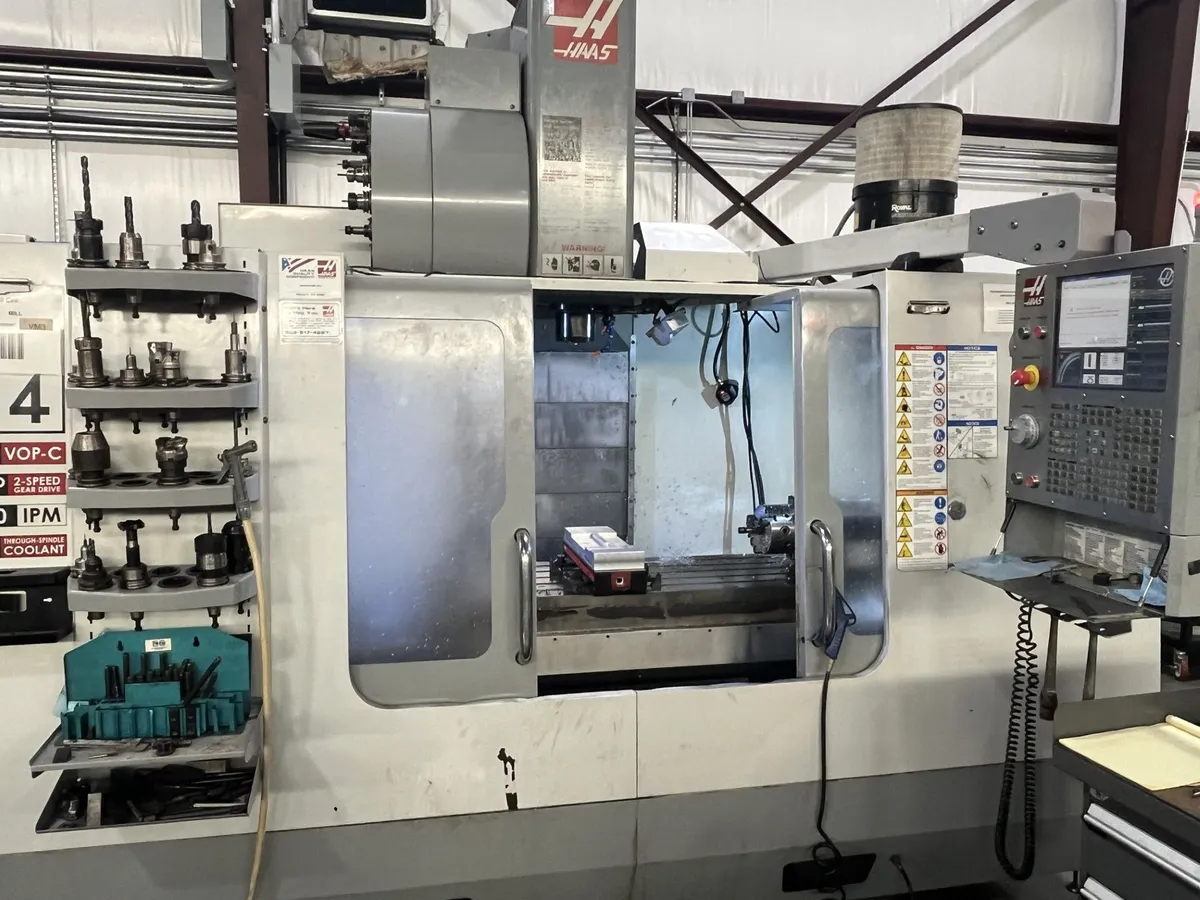

25"X50" Haas Vertical Machining Center Model VF 4SS

Control.............................................
Table Size..........................................52" x 18"
Spindle Nose To Table...............................4.2" To 29.2"
X Axis Travel.......................................50"
Y Axis Travel.......................................20"
Z Axis Travel.......................................25"
Max Cutting.........................................650 IPM
Max Torque..........................................90 Ft-lbs.
Max Thrust X Axis...................................2,550 Ft-lbs.
Max Thrust Y Axis...................................2,550 Ft-lbs.
Max Thrust Z Axis...................................4,200 Ft-lbs.
Rapid Rate X Axis...................................710 IPM
Rapid Rate Y Axis...................................710 IPM
Rapid Rate Z Axis...................................710 IPM
Max Table Load......................................3,500 Lbs.
Spindle Speed.......................................7,500 RPM
Spindle Taper.......................................40
Tool Changer........................................20 ATC
Tool-to-Tool........................................4.2 Sec.
Spindle Motor.......................................20 HP
Drive System........................................Inline Direct-Drive
Dimensions..........................................R-L 131" x F-B 92"
Height..............................................101"
Weight..............................................11,720 Lbs.
Programable Rotary Table............................6"
Coolant Capacity....................................55 Gallons

Note:
Machine in plant under.
