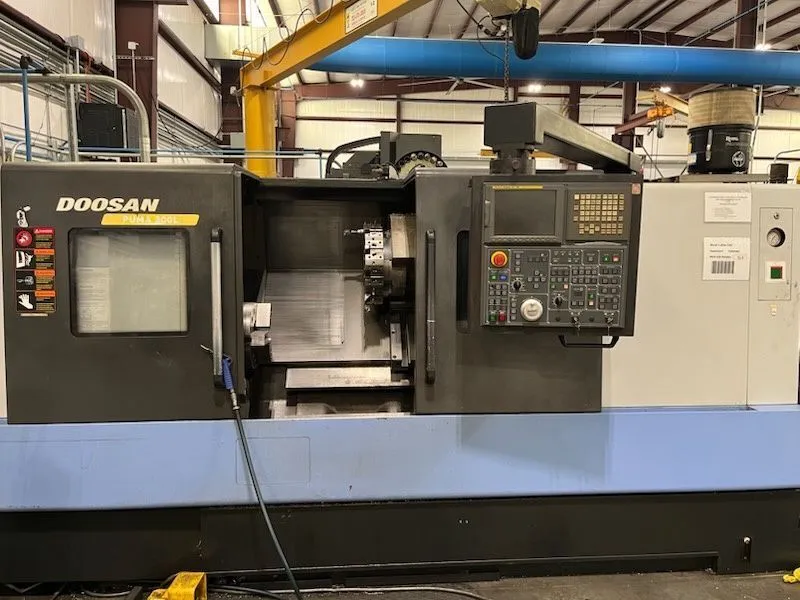

Doosan CNC Lathe Model Puma 300 LC Year 2007

Doosan Puma 300LC Specifications:
Capacity:
Max Turning Diameter...............................15.7″
Max Turning Length.................................50.4″
Max Bar Capacity...................................4.05″
Swing Over Bed.....................................22.4″
Distance Between Centers...........................52.8″
X Axis Travel......................................11.1″
Z Axis Travel......................................52.4″
Rapid Traverse X Axis..............................787 IPM
Rapid Traverse Z Axis..............................945 IPM
Spindle Nose.......................................A2-11
Spindle Bore.......................................4.5″
Spindle Speed......................................0 – 2800 RPM
Turret Capacity....................................12 Stations
Turret Index Time..................................0.15 Second
Tailstock Taper....................................MT-4
Tailstock Quill Diameter...........................3.97″
Tailstock Quill Travel.............................4.7″
General:
Spindle Motor......................................35 HP
Power..............................................45 KVA, 220v / 3-Phase
Overall Dimensions.................................R-L 150″ x F-B 77″ x Height 80″
Overall Dimensions.................................R-L 168″ x F-B 77″ x Height 80″
...................................................With Chip Conveyor
Weight.............................................15000 Lbs.

Note:
Machine in plant under power.
