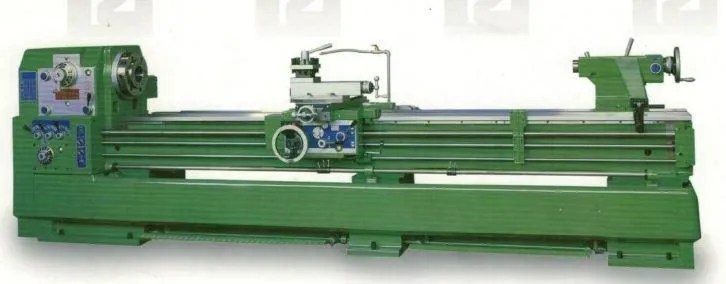

25" X 120" New Modern Engine Lathe Model LA 660X3000

Swing Over Bed Ways...............................26"
Swing Over Cross Slide............................15-3/5"
Swing In Gap & Width..............................31-7/8" X 10-5/8"
Width Of Ways.....................................15-3/4"
Max Travel Of Compound Slide......................7-1/2"
Max. Cross Travel Of Lower Slide..................13"
Center Distance...................................120"
Chuck Size........................................16" 4-Jaw
Chuck Size........................................15" 3-Jaw
Spindle Hole......................................4-1/16"
Spindle Nose......................................D-11
Spindle Speeds....................................13 To 1,200 Rpm's
Feeds Cross.......................................0.0015 To .00913
Feeds Long........................................0.035 To.980
Threads Inch......................................2 To 72 TPI
Threads Metric....................................0.2 To 14 MM
Module............................................0.25 TO 10 MM
D.P...............................................3-1/4" To 96 DP
Tail Stock Quill Travel...........................5"
Tail Stock Taper..................................# 5 Morse
Tail Stock Quill Diameter.........................2-15/16"
Main Motor........................................15 Hp.
Machine Dimension.................................48" X 144"
Machine Height....................................60"
Weight............................................8,400 Lbs.
Fagor 2 Axis Digital Readout System...............Yes
Rapid Traverse Z-Axis.............................Yes
Full Length Splash Guard..........................Yes
Telescopic Taper Attachment.......................Yes
Steady Rest (16").................................Yes
Follow Rest.......................................Yes
Hardened And Ground Ways (RC 32)..................Yes
Thread Dial.......................................Yes
Coolant...........................................Yes

Optional:Prices subject to change without notice:
Tool Post & Holders:
Aloris Type (Tool Post and 5 holders)..............$2,740.00
D.R.O.:
Newall 2 Axis D.R.O................................$6,450.00
Install D.R.O System ..............................$450.00
Chucks:
*Gator 20" 4-Jaw With two piece jaws DM D1-11......$3,950.00
*Gator 16" 3-Jaw With two piece jaws DM D1-11......$4,250.00
