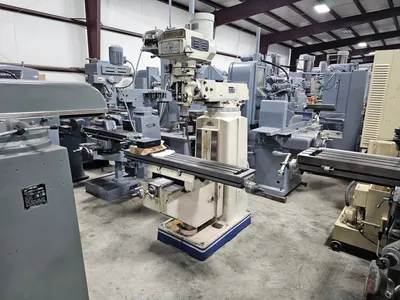

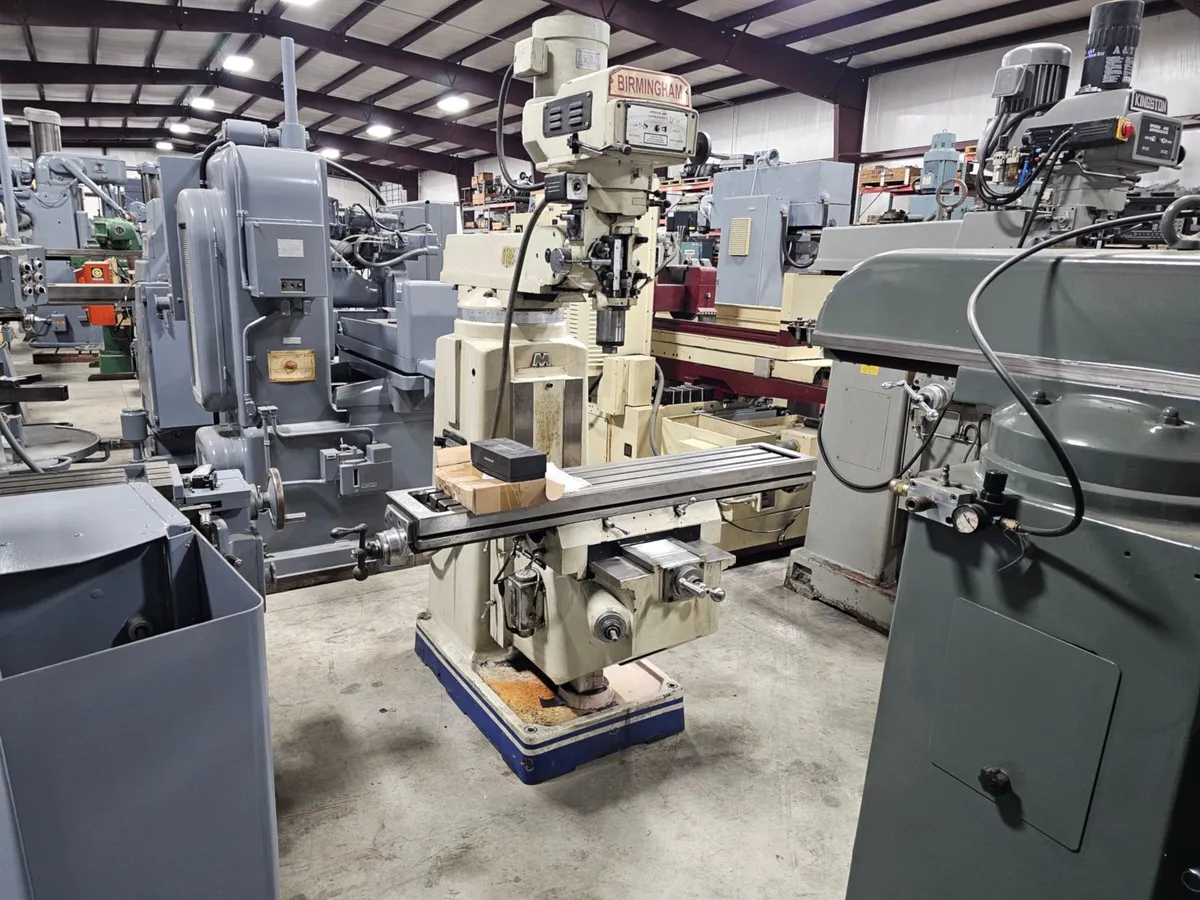

10" X 50" Used Brimingham Vertical Knee Mill

Table Size......................................10" X 50"
Table Weight Capacity...........................700 Lbs.
T-Slots On Table................................3
T-Slot Size.....................................5/8"
Spindle Taper...................................R- 8
Spindle Speeds Low..............................60 To 500- Rpm's
Spindle Speeds Variable High ...................500 To 4,200 Rpm's
Spindle Feeds...................................0.0015", 0.003", 0.006"/REV I.P.R.
Spindle Quill Travel............................5"
Spindle Tilt +/-................................45 Degrees
Spindle Swivel +/-..............................90 Degrees
Spindle To Table Min. / Max.....................1-5/8" To 16-1/2"
Spindle Centerline To Column Min. / Max.........4" To 25-5/8"
Saddle Travel In & Out..........................15-3/4"
Table Travel Longitudinal.......................30-3/4"
Knee Travel.....................................15"
Table Feeds Variable............................0 To .250 I.P R.
Over Arm Travel In And Out......................21-5/8"
Over Arm Swivel.................................360 Degrees
Main Motor......................................3 Hp.
Floor Space Right To Left.......................78"
Floor Space Front To Back.......................78"
Height..........................................85"
Weight..........................................2,800 Lbs.
Power Feed On Table.............................Yes
Power Tool Lock.................................Yes

Note: Machine has been cleaned and cycled.

Optional Equipment:.............................Prices Subject To Change

Description.....................................Price Price
Power Draw Bar For R-8 Spindle..................$890.00
Install Air Draw Bar............................$150.00
Power Feeds:
Servo Dynamo Power Table Feed
SERVO Dynamo 150 Table Feed - Longitudinal......$795.00
SERVO Dynamo 150 Table Feed - Cross.............$890.00
SERVO Dynamo 150 Table Feed - Knee..............$990.00
SERVO 150 Inch Pound Table Feed - Longitudinal..$980.00
SERVO 150 Inch Pound Table Feed - Cross.........$1,080.00
SERVO 200 Inch Pound Table Feed – Knee .........$2,390.00
Table Feed Installation.........................$155.00
Cross Feed Installation.........................$275.00
Knee Feed Installation..........................$425.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed............$3,750.00
Newall 3 Axis Table, Cross And Knee Installed...$4,390.00
Mitutoyo Digimatic Quill Scale
With Bracket Installed..........................$975.00
Shaper Attachment...............................$2,450.00
New Webb 3 Hp Head..............................$5,250.00
Webb Milling Machine's And Heads Have Been
Manufactured In The Same Plant For Over 40 Years.
