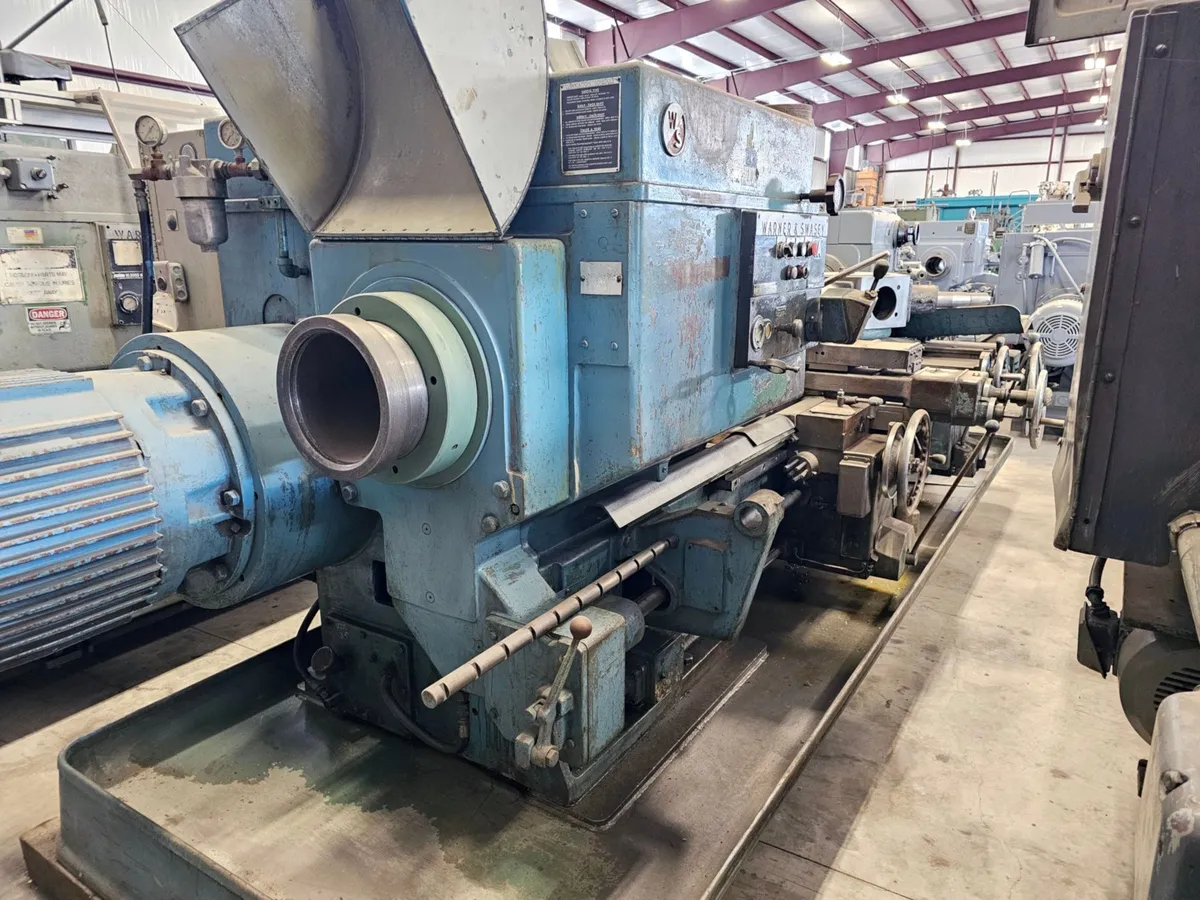

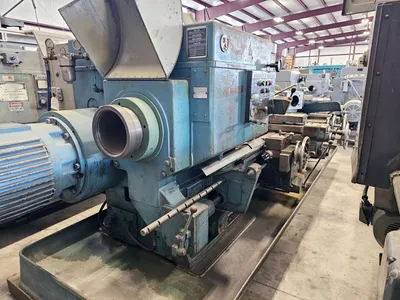

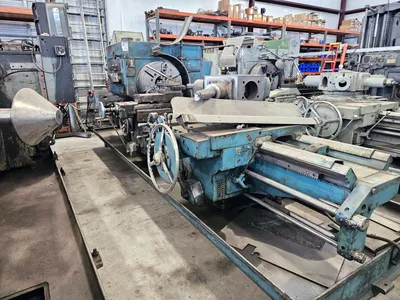

Used Warner & Swasey Square Head 4A Model 3550 Saddle Type Turret Lathe

Swing Over Bed Ways.......................................28-1/4"
Swing Over Cross Slide Carriage...........................22"
Center Distance...........................................62"
Spindle Hole..............................................9-1/4"
Spindle Speeds............................................20 To 526 Rpm's
Spindle Nose..............................................A-15
Chuck Size (New Heavy Duty)...............................24" 4- Jaw New Gator
Feeds Cross...............................................0.005 To 0.090 I.P.R.
Feeds Long................................................0.005 To 0.167 I.P.R.
Main Motor Hp.............................................75 / 37.5
Floor Space Right To Left.................................22'
Floor Space Front To Back.................................7'
Machine Height............................................84"
Weight....................................................24,000 Lbs.
Flange Holders............................................4
Tool Post 4 Way On Front..................................Yes
Rapid Traverse Front And Rear.............................Yes
Cross Sliding Rear Turret.................................Yes
Full Chip Pan And Coolant.................................Yes
Coolant Yes

Note: Machine will be cleaned, painted, and cycled.
Machine in good running order.
Option 1:
Note Reconditioning:
Machine will have front & rear aprons and
rapid traverse box reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed.
New filters and oil.
New lockdown pin and bushing in hex and square turret.
New nut and screw in cross slide and hex turret.
Gibs reworked and refitted.
New 24"4-jaw Gator chuck with reconditioning.
It is recommended that you re-bore the flange tool holders on the rear
turret to ensure they are on center once the machine is level.

Price: $149,500.00 for the above work completed.
Option 2:
Price: $179,500.00 Ways reground and saddles refitted to ways.
If you would like the machine reconditioned, the above work
will be started once the PO and deposit are received.
Estimated time frame Twenty to twenty four weeks
Option 3:
Used 24" 3-Jaw Power Chuck And Wrench $16,500.00 Installed
